Waste Tire Textile Cord Pellet Machine

Waste Tire Textile Cord Pellet Machine
Brand : RICHI
Capacity : 2-3T/H
Model : MZLH520
Main Power : 181KW

Guiding Price :
FOB 40000-60000 USD

Get Quote

Brief Introduction

RICHI waste tire textile cord pellet machine increases the pelletizing efficiency and capacity by expanding and increasing the feed inlet.

Get Quote

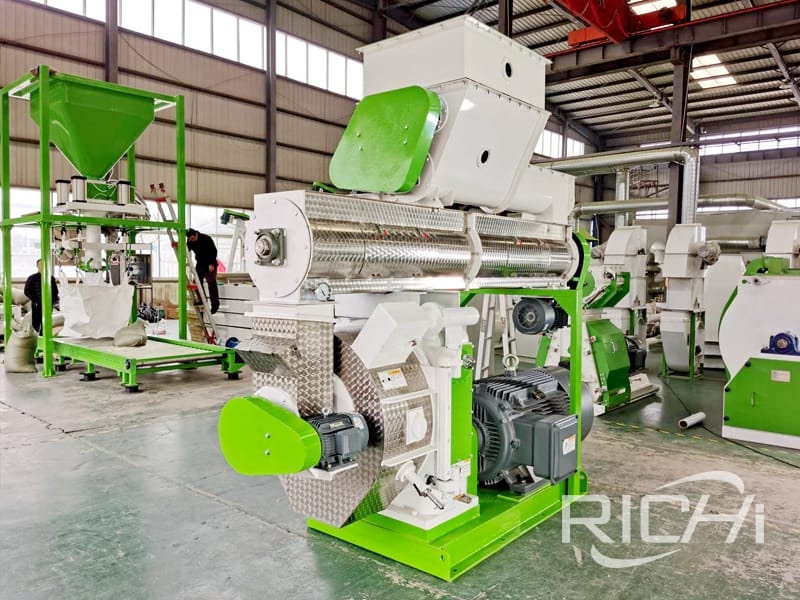

Waste Tire Textile Cord Pellet Machine

The support bar and the main shaft are forged together, and a uniform gap is maintained between the roller and the ring die to ensure high efficiency. The forced feeding device was added, and the output increased by 10-12%. Both the conditioner and the pelleting chamber are made of high-quality stainless steel and forged bearings with long service life. All motors use advanced Siemens motors to ensure stable equipment operation.

ModelAnti-caking Feeder PowerForced Feeder PowerPellet Machine PowerCapacity
(wood sawdust)
Capacity
(grass,straw)
Capacity
(organic fertilizer)
Final Pellet
MZLH5202.2KW0.75KW160KW2.0-2.5 T/H3-4 T/H7-8 T/H6-12mm

Waste Tire Textile Cord Pellet Machine

Model MZLH320 MZLH350 MZLH420 MZLH520 MZLH768 MZLH858
Capacity 300-400kg/h 500-700kg/h 1.0-1.2 t/h 2.0-2.5 t/h 2.5-4 t/h 3-4.5 t/h
Power 37kw 55kw 90kw 110/132kw 250/280kw 280kw
Final Pellet 6-12mm 6-12mm 6-12mm 6-12mm 6-12mm 6-12mm

What Are The Parts of Waste Tire Textile Cord Pellet Machine?

Waste Tire Textile Cord Pellet Machine is a key equipment for the production of pellets, which composed of multiple components. It is mainly composed of drive system, feeding system, pelletizing system, etc. The following figure is for reference. It can be seen that in order to adapt to the particularity of the raw materials, we have increased the size of the feeding port and added a forced feeder, which not only solves the problem of low production efficiency of biomass particles, but also effectively reduces waste of raw materials.

Contact Us

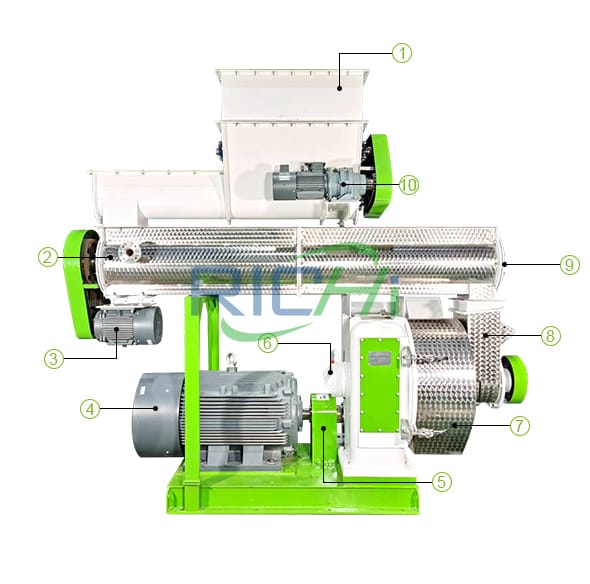

Waste Tire Textile Cord Pellet Machine
1. Feeder
2. Stainless Steel Conditioner
3. Conditioner Motor
4. SIEMENS Motor
5. Shaft Coupling
6. Safety Assembly
7. Pelleting Chamber
8. Forced Feeder
9. Conditioner
10. Feeder Motor

Detailed Instructions of Waste Tire Textile Cord Pellet Machine

RICHI always believes that good products are one of the important indicators of corporate survival. We use high-standard materials in the production process and cooperate with internationally renowned brands to ensure that we can bring high-quality equipment to customers. The following is a detailed display of RICHI Waste Tire Textile Cord Pellet Machine.

Contact Us
  • Frequency Control Feeder with Anti-caking device

  • Upgraded pelleting chamber to improve pelletizing efficiency and facilitate adjustment, maintenance and replacement

  • 304 stainless steel ring die, corrosion resistance, Full automatic CNC ring die drilling machine and vacuum heat treatment technology

  • Stainless steel conditioner for enhanced corrosion resistance and longer life

  • Siemens Motors

  • 304 stainless steel ring die, corrosion resistance, Full automatic CNC ring die drilling machine and vacuum heat treatment technology

  • Press Roller Section - Made of 40CrMnTi, the structure of the eccentric shaft can better adjust the distance between the ring die and press roller

Application of Waste Tire Textile Cord, Palm Fiber Pellet Machine

Henan Richi Machinery Waste Tire Textile Cord Pellet Machine is mainly suitable for the production of textile cord pellet, palm fiber pellet, and the other biomass material pellets.

Contact Us Application of  Waste Tire Textile Cord, Palm Fiber Pellet Machine

Equipment In RICHI Workshop

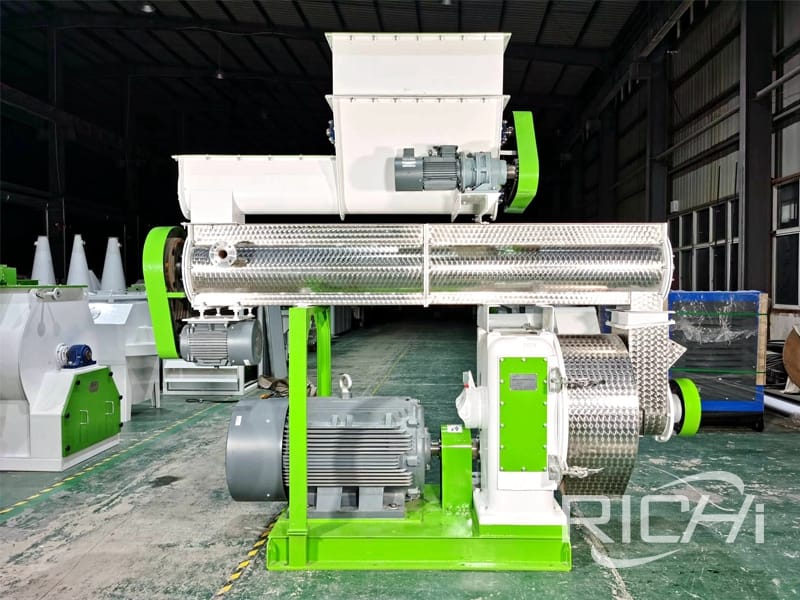

Waste Tire Textile Cord Pellet Machine
Waste Tire Textile Cord Pellet Machine
Palm Fiber Pellet Making Machine
Palm Fiber Pellet Making Machine

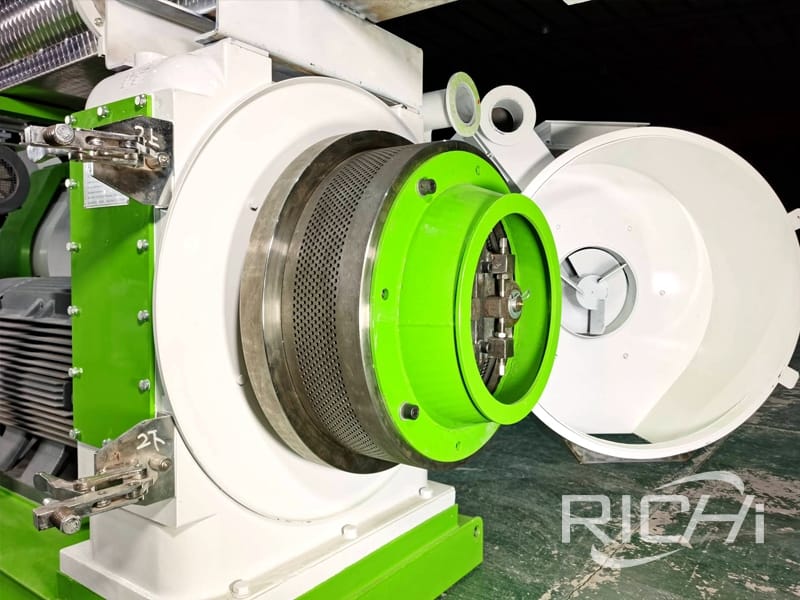

Pelleting Chamber
Pelleting Chamber

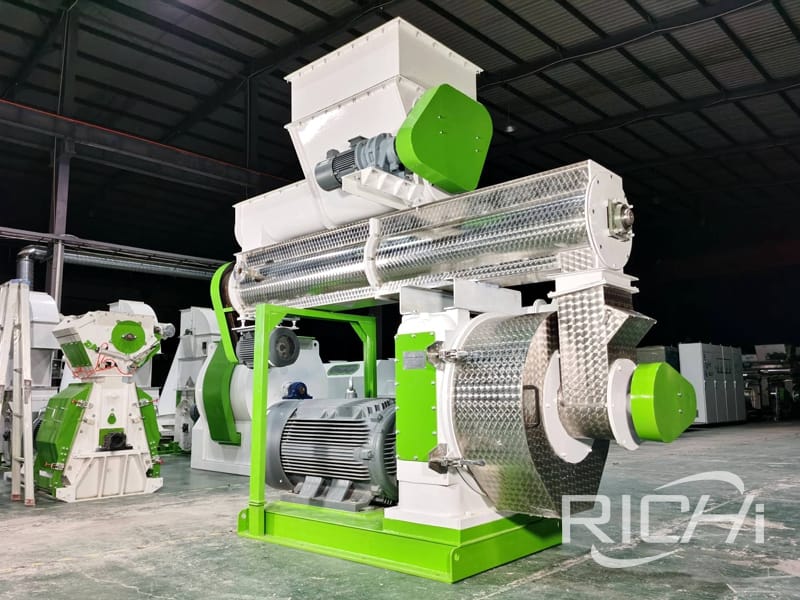

Fiber Pellet Making Machine
Fiber Pellet Making Machine

Related Pellet Production Line

Our products are usually used in conjunction with other equipment in the pellet production line and have a wide range of applications. The following are common pellet production lines for reference only. If you have different raw materials or different requirements, please contact us for customization.
