Aqua Feed Extrusion System

Aqua Feed Extrusion System
Brand : RICHI
Capacity : 1-10T/H
Model : DGP200-B
Main Power : 90-250KW

Guiding Price :
FOB 1000-100000 USD

Get Quote

Brief Introduction

The material is fully matured between the screw and the screw sleeve by high temperature and high pressure, and then extruded to form a floatable expanded pellet.

Get Quote

The floating pelletized feed produced can float on the surface of the water for at least 12 hours without blistering. Fish and poultry prefer to digest, and the artificial frog can easily observe the food consumption of the frog fish without causing waste of feed. Pollution of water quality. The material effectively kills harmful bacteria such as Escherichia coli and Salmonella by high temperature and high pressure, ensuring the hygiene of the feed, facilitating protein denaturation and starch gelatinization, and being easily absorbed by fish and livestock. Generally, puffed floating fish feed is used to save 8%-15% of feed compared to powdered or granular feed.

ModelCapacity(t/h)Main motor power(kw)Feeder power(kw)Screw diameter(mm)Cutter power(kw)
DGP200-B1.8-2.01321.5φ1953.0-4.0

Aqua Feed Extrusion System

ModelCapacity(t/h)Main motor power(kw)Feeder power(kw)Screw diameter(mm)Cutter power(kw)
DGP40-Cs0.03-0.043.0*20.4Φ400.4
DGP40-C0.03-0.045.50.4Φ400.4
DGP50-C0.06-0.08110.4Φ500.4
DGP60-C0.12-0.15150.4φ600.4
DGP70-B0.18-0.218.50.4φ700.4
DGP80-B0.2-0.25220.4φ800.6
DGP90-B0.30-0.35370.6φ900.8
DGP120-B0.5-0.6551.1φ1202.2
DGP135-B0.7-0.8751.1φ1332.2
DGP160-B1-1.2901.5φ1553
DGP200-B1.8-2.01321.5φ1953.0-4.0

Application of Aqua Feed Extrusion System

This equipment uses corn, soybean (bean cake) animal wastes as raw materials, can be expanded to produce different particle shapes, suitable for different pet tastes such as dogs, cats, fish, birds, rabbits, shrimps, dogs, cats, donkeys, foxes, etc.

Get Quote Application of Aqua Feed Extrusion System

Accessories

RICHI provide various shapes of high-quality stainless steel mold, the production of expanded particles suitable for the customer, the motor apparatus Siemens.

Get Quote

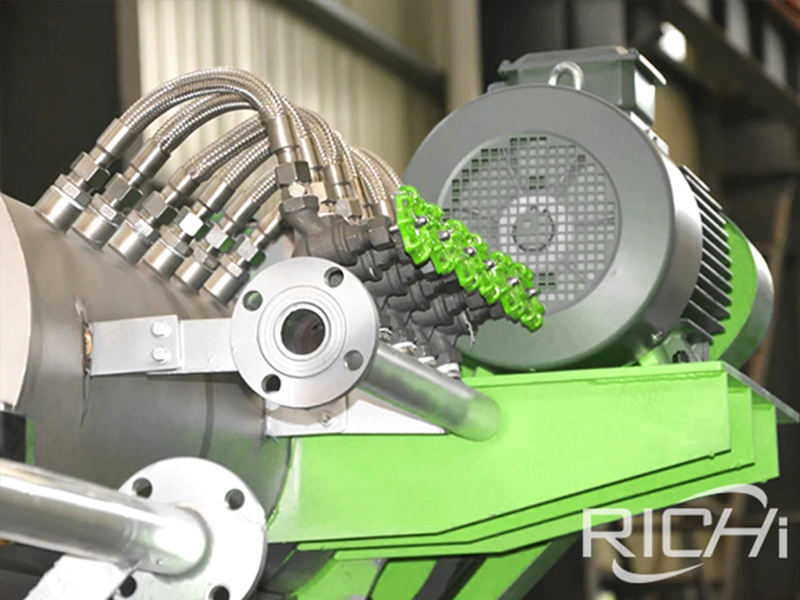

siemens motor
SIEMENS
Motor
SKF bearing
SKF
Bearing
extruder discharging die
Extruder
Discharging die
extruder single-thread
Extruder
Single-thread

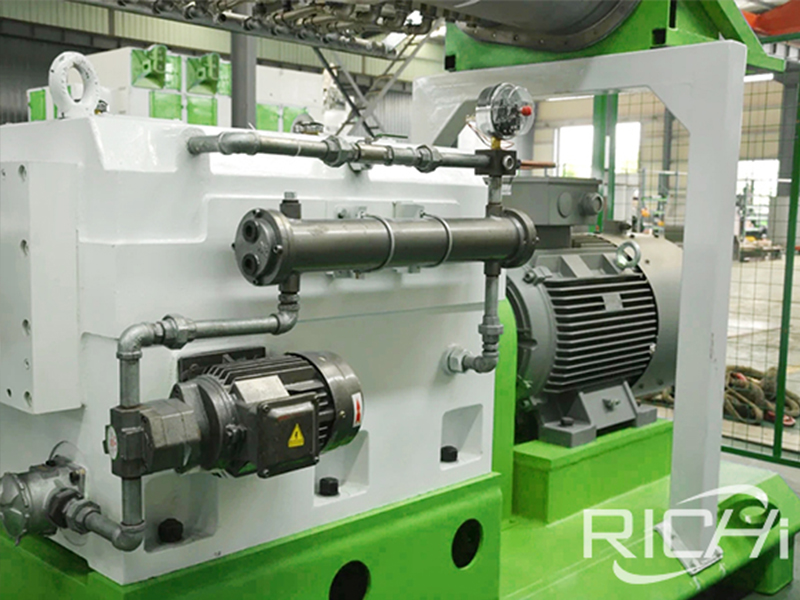

Equipment In RICHI Workshop

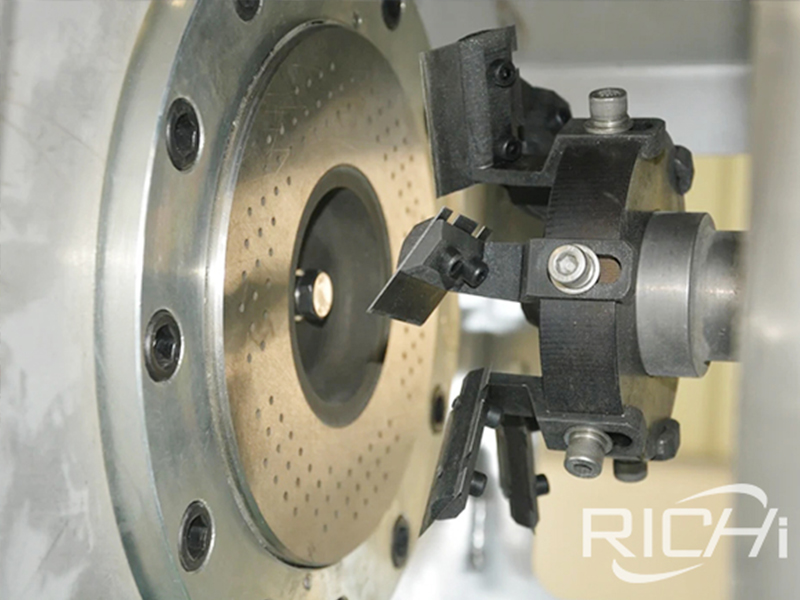

Pellet Outlet and Cutter
Pellet Outlet and Cutter

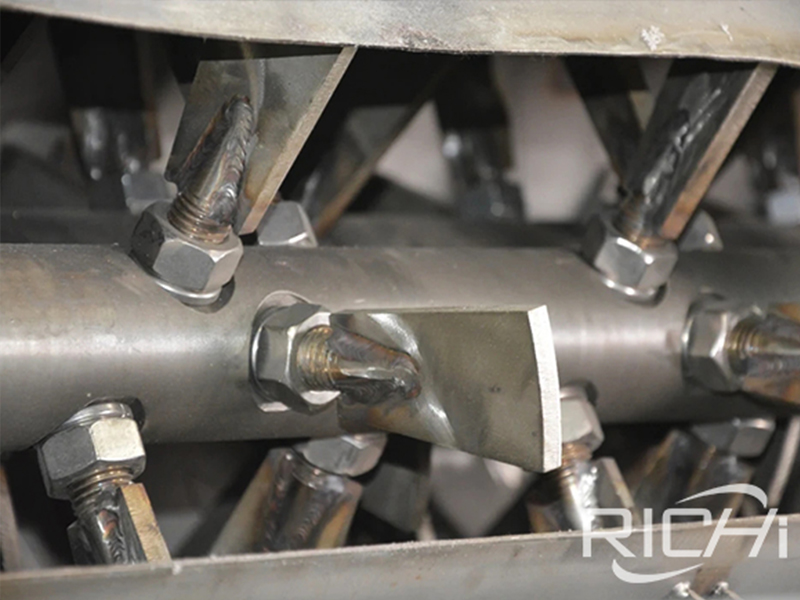

Conditioner
Conditioner

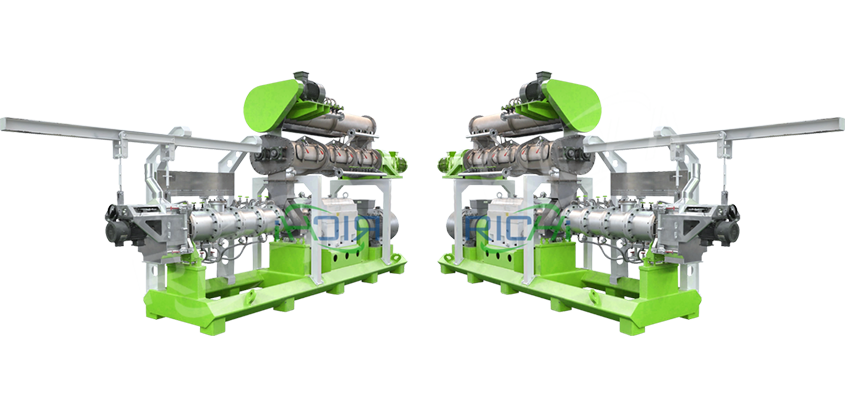

Aqua Feed Extrusion System
Aqua Feed Extrusion System
Steam System
Steam System

Application

Our products are usually used in conjunction with other equipment in the production line and have a wide range of applications. The following are common pellet production lines for reference only. If you have different requirements, please contact us for customization.

Get Quote

Cases

Equipment In RICHI Workshop
×
×
