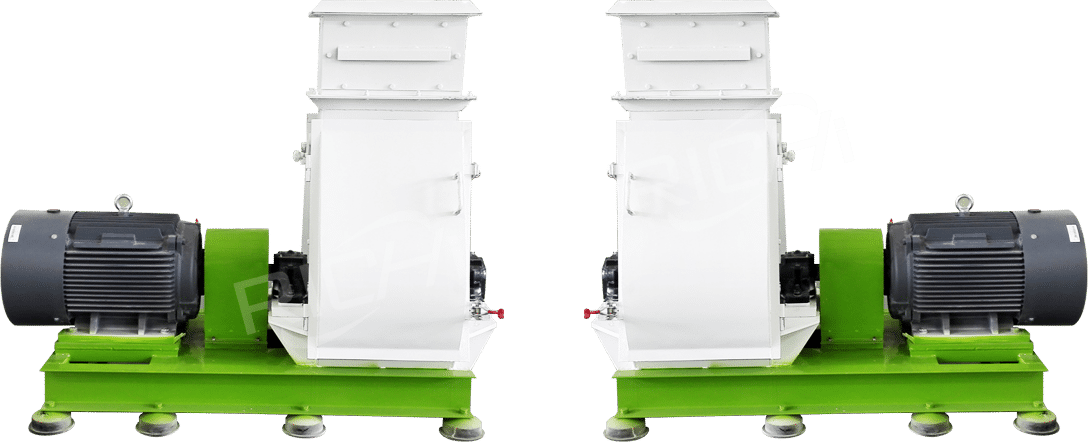

SFSP Feed Hammer Mill

SFSP Feed Hammer Mill
Brand : RICHI
Capacity : 4-6T/H
Model : SFSP56*40b
Main Power : 37KW

Guiding Price :
FOB 5300-34000 USD

Get Quote

Brief Introduction

SFSP Feed Hammer Mill widely used in feed mills. It is main used to crushing all kinds of grains, such as wheat, corn, sorghum, rice, crushed cake, etc.

Get Quote

RICHI animal feed hammer mill adopts advanced drip-type crushing chamber design, which makes the secondary crushing structure reasonable and the output is increased by 25% compared with other. We use high-precision dynamic balance detection equipment to make the mill achieve low vibration and low noise. Reasonable hammer layout enables the material to be fully crushed and greatly improves work efficiency. In addition, the movable operating door and linkage sieve press structure is also fully considered for the customer, and the maintenance is very convenient.

ModelPowerCapacitySpeed
SFSP56*40b37kw4-6T/H2980r/min

SFSP Feed Hammer Mill

ModelSFSP56*40aSFSP56*40bSFSP66*60aSFSP66*60bSFSP66*80aSFSP66*80bSFSP66*100SFSP138*30ESFSP138*40E
Power30kw37kw55kw75kw90kw110kw132kw110/132kw132/160kw
Capacity3-5T/H4-6T/H5-8T/H6-9T/H8-10T/H10-13T/H12-16T/H15-20T/H18-25T/H
Speed2980r/min2980r/min2980r/min2980r/min2980r/min2980r/min2980r/min1440r/min1440r/min

What Are The Parts of SFSP Feed Hammer Mill?

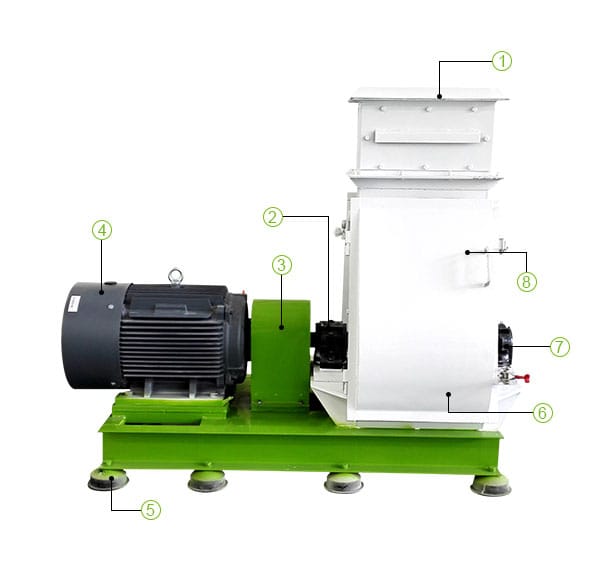

SFSP Feed Hammer Mill is a key equipment for the production of pellets, which composed of multiple components. It is mainly composed of drive system, feeding system, crushing system, etc. The following figure is for reference.

Contact Us
SFSP Feed Hammer Mill
1. Feeder
2. SKF Bearing
3. Coupling
4. Siemens Main Motor
5. Support Base
6. Access Door
7. Rotor
8. Safety Limit Switch

Detailed Instructions of SFSP Feed Hammer Mill

RICHI always believes that good products are one of the important indicators of corporate survival. We use high-standard materials in the production process and cooperate with internationally renowned brands to ensure that we can bring high-quality equipment to customers. The following is a detailed display of RICHI pellet machine.

Contact Us
  • We have redesigned the feeder to be more precise, more convenient and more efficient

  • Open the magnet door pneumatically, the adsorbed iron filings and other debris will automatically fall off

  • All RICHI equipment promises to use SKF bearings to improve equipment stability and service life

  • The feeder mainly uses a frequency conversion motor with a reducer, which can maintain the feeding volume and uniformity

  • We use a replaceable screen device, you can change the screen at any time to achieve the fineness of the crush

  • Our RICHI equipment uniformly uses high-end limit switches to ensure the safety of equipment and operators

  • The feeder with iron removal device can further clean the raw materials and protect the safe operation of the equipment

Smooth Operation, Longer Life

High-precision dynamic balance detecting rotor, little vibration, low noise. Equipped with safety interlocking device for safety. Forward and reverse work of rotor, longer service life of hammer mill.

Contact Us Smooth Operation, Longer Life

Accessories

RICHI cooperates with international famous brands Siemens and SKF, adopts advanced motors and bearings, so that our products have sufficient guarantee in stability and quality, please rest assured to purchase.

Contact Us
siemens motor
SIEMENS
Motor
SKF bearing
SKF
Bearing
grinder hammer
Grinder
Hammer
grinder screen sheet
Grinder
Screen Sheet

Equipment In RICHI Workshop

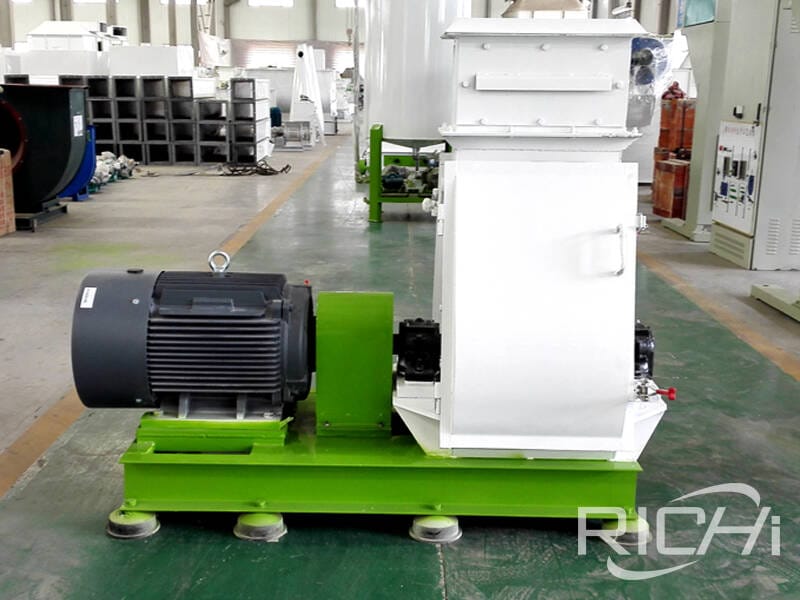

Feed Hammer Mill In Workshop
Feed Hammer Mill In Workshop

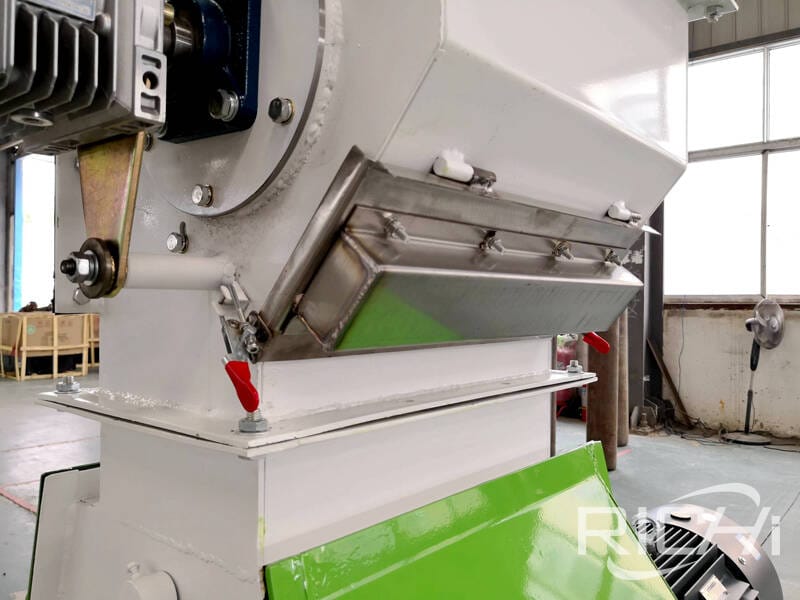

Impeller Feeder
Impeller Feeder

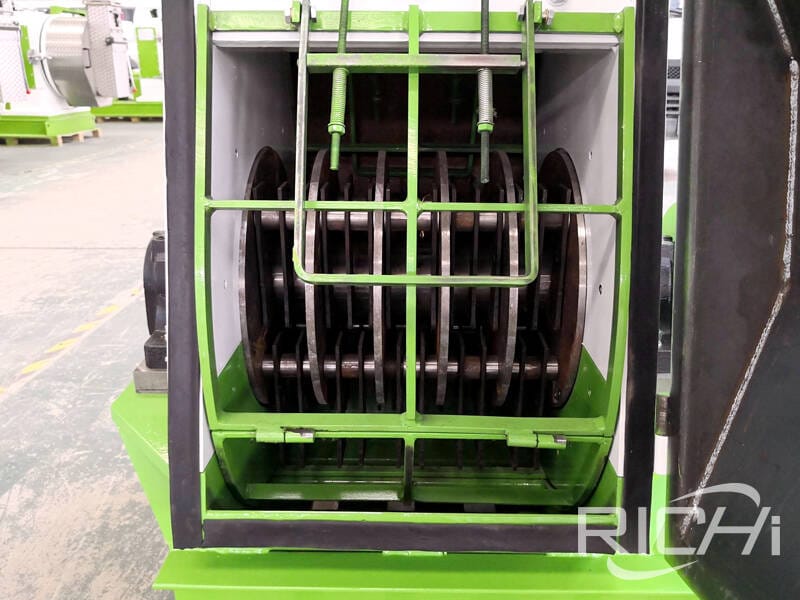

Optimized Arrangement of Hammer Pieces
Optimized Arrangement of Hammer Pieces

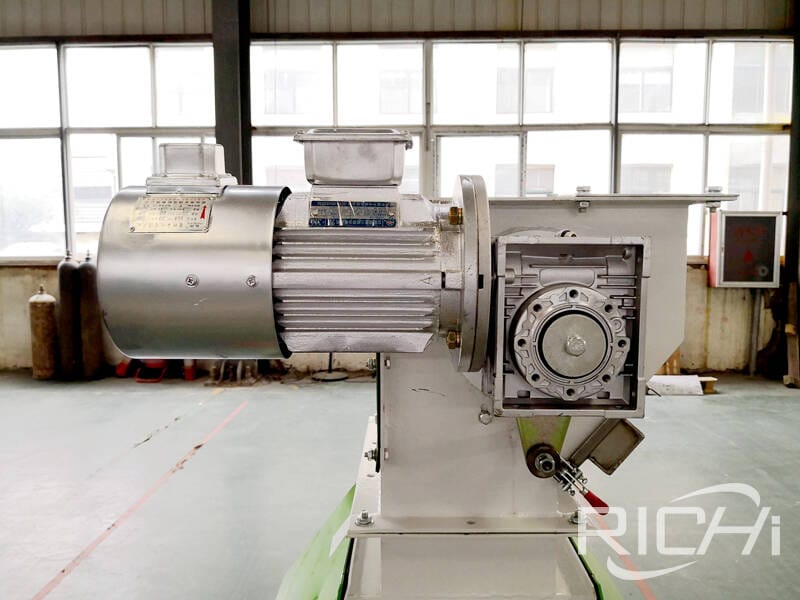

Frequency Conversion Motor
Frequency Conversion Motor
