Animal Feed Grinding Machine

Animal Feed Grinding Machine
Brand : RICHI
Capacity : 8-10T/H
Model : SFSP66*80a
Main Power : 90KW

Guiding Price :
FOB 5300-34000 USD

Get Quote

Brief Introduction

The equipment is mainly used in animal feed or aquatic feed production lines, suitable for crushing raw materials such as corn, wheat, soybeans, etc.

Get Quote
The equipment is mainly used in animal feed or aquatic feed production lines, suitable for crushing raw materials such as corn, wheat, soybeans, etc.

RICHI animal feed grinding machine puts everything together - a heavy-duty steel structure and a replaceable liner for long-life hammer mills. Using the new-type adjustable sieve pressure plate, adjustable back gauge and tuning technique, to destroy the material circulation layer. With high-spec Siemens motors and SKF bearings for direct drive and high enough hammer speed for fine grinding, this series hammer mills can easily handle your size reduction challenges.

ModelPowerCapacitySpeed
SFSP66*80a90kw8-10T/H2980r/min

Animal Feed Grinding Machine

ModelSFSP56*40aSFSP56*40bSFSP66*60aSFSP66*60bSFSP66*80aSFSP66*80bSFSP66*100SFSP138*30ESFSP138*40E
Power30kw37kw55kw75kw90kw110kw132kw110/132kw132/160kw
Capacity3-5T/H4-6T/H5-8T/H6-9T/H8-10T/H10-13T/H12-16T/H15-20T/H18-25T/H
Speed2980r/min2980r/min2980r/min2980r/min2980r/min2980r/min2980r/min1440r/min1440r/min

What Are The Parts of Animal Feed Grinding Machine?

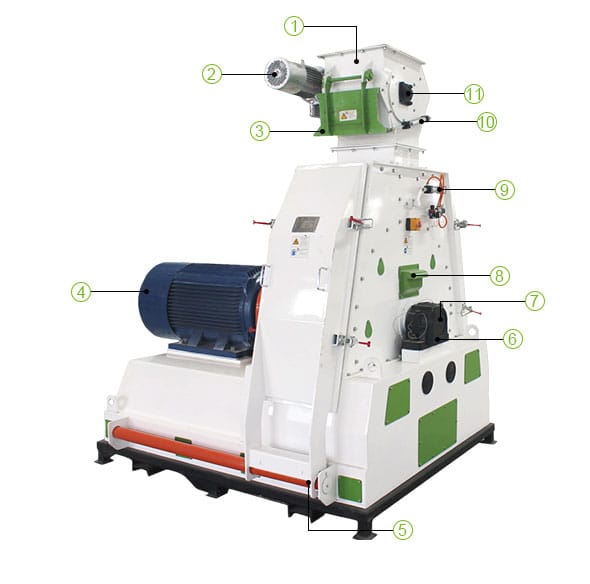

Animal Feed Grinding Machine is a key equipment for the production of pellets, which composed of multiple components. It is mainly composed of drive system, feeding system, crushing system, etc. The following figure is for reference.

Contact Us
Animal Feed Grinding Machine
1. Frequency Conversion Feeder
2. Frequency Conversion Motor
3. Iron Removal Device
4. Siemens Main Motor
5. Slide Rail
6. NSK Bearing Seat
7. SKF Bearing
8. Air Outlet
9. Safety Limit Switch
10. Cylinder
11. Rotor

Detailed Instructions of Animal Feed Grinding Machine

RICHI always believes that good products are one of the important indicators of corporate survival. We use high-standard materials in the production process and cooperate with internationally renowned brands to ensure that we can bring high-quality equipment to customers. The following is a detailed display of RICHI pellet machine.

Contact Us
  • We have redesigned the feeder to be more precise, more convenient and more efficient

  • Open the magnet door pneumatically, the adsorbed iron filings and other debris will automatically fall off

  • All RICHI equipment promises to use SKF bearings to improve equipment stability and service life

  • The feeder mainly uses a frequency conversion motor with a reducer, which can maintain the feeding volume and uniformity

  • We use a replaceable screen device, you can change the screen at any time to achieve the fineness of the crush

  • Our RICHI equipment uniformly uses high-end limit switches to ensure the safety of equipment and operators

  • The feeder with iron removal device can further clean the raw materials and protect the safe operation of the equipment

Safe and Stable, High Yield and Low Consumption

Advanced teardrop-shaped crushing chamber design, reasonable structure of the secondary crushing,Equipped with safety interlocking device for safety.

Contact Us Safe and Stable, High Yield and Low Consumption

Accessories

Every piece of RICHI's equipment uses advanced Siemens motors and high-quality SKF bearings to ensure customers' stability and efficiency in use.

Contact Us
siemens motor
SIEMENS
Motor
SKF bearing
SKF
Bearing
grinder hammer
Grinder
Hammer
grinder screen sheet
Grinder
Screen Sheet

Equipment In RICHI Workshop

Animal Feed Grinding Machine
Animal Feed Grinding Machine

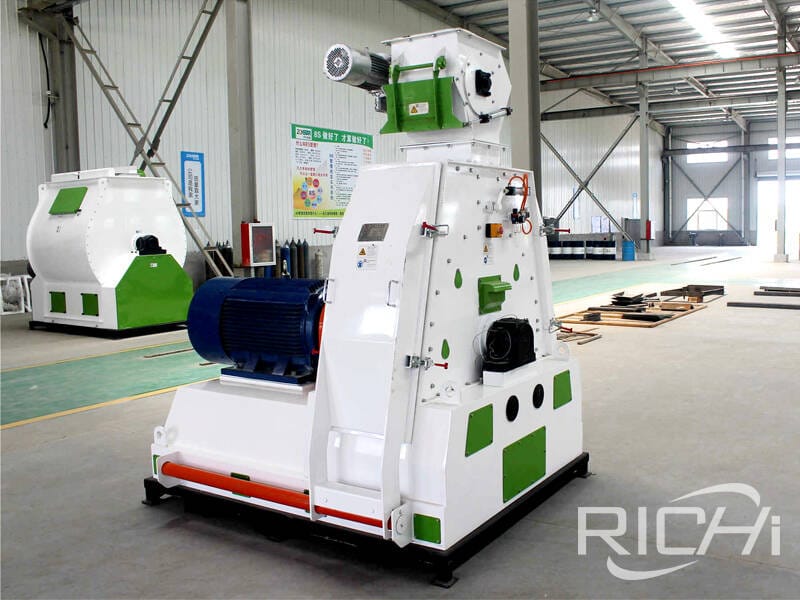

Feed Grinding Mahcine in Workshop
Feed Grinding Mahcine in Workshop

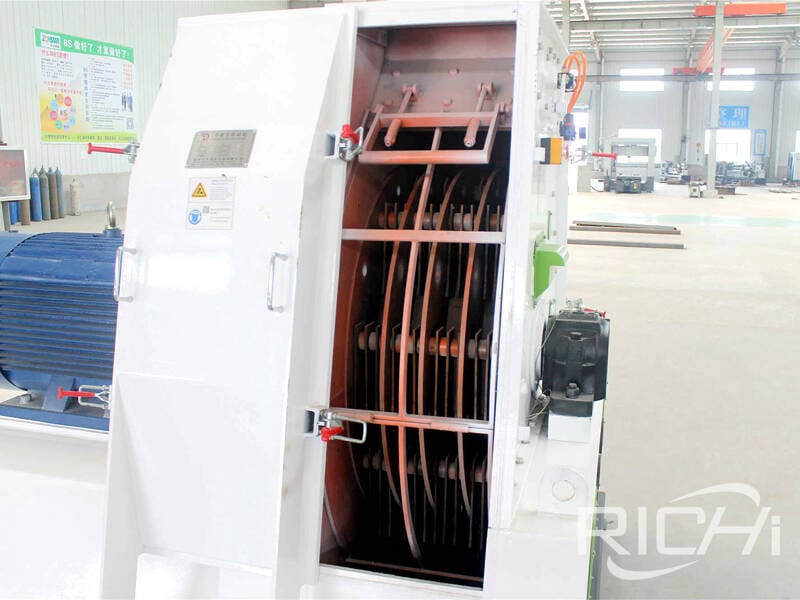

Optimized Arrangement of Hammer Pieces
Optimized Arrangement of Hammer Pieces

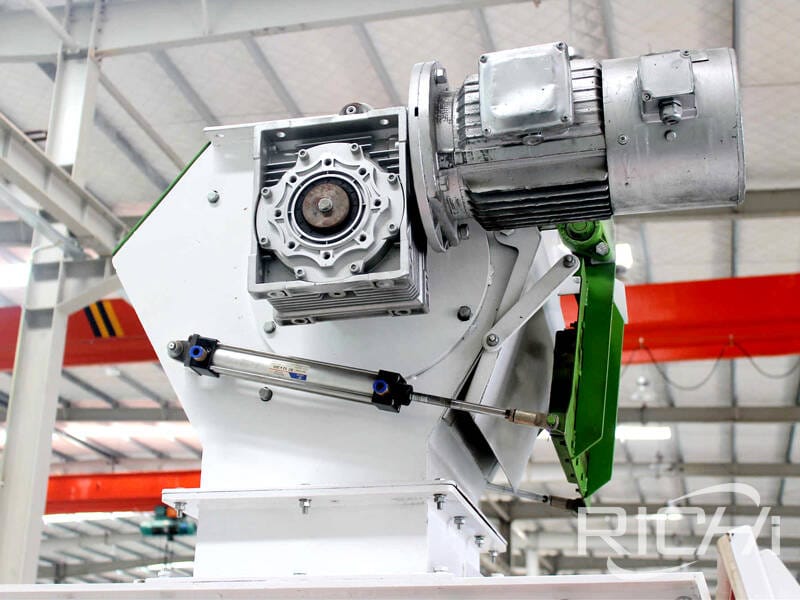

Frequency Conversion Feeder
Frequency Conversion Feeder
