Animal Feed Pellet Machine With Triple-layer Conditioner

Animal Feed Pellet Machine With Triple-layer Conditioner
Brand : RICHI
Capacity : 1-2T/H
Model : SZLH250
Main Power : 22KW

Guiding Price :
FOB 7000-10000 USD

Get Quote

Brief Introduction

The material passing through the modulator enters the granulation chamber and rapidly extruded through the ring die and the press roller to form cylindrical pellets. This is the basic principle of feed pellet machine. The output of our small feed pellet machine is 1-2 tons per hour, which is more suitable for small farms or small animal feed mills, so that the feed pellet produced can be used for own use or sold. The following are some of the features of RICHI feed pellet machines and their advantages compared to other companies' products.

Get Quote

Conditioner are made of stainless steel, which is not easy to corrode, so as to avoid the influence of iron filings on feed. All motors are Siemens variable frequency motors, which can adjust speed and save electricity. Stable and classical gear driving,non-slipping,can really ensure the production output. Low noise,optimized ring die,maximum output. Hydraulic system for ring die change and roller adjustment(optional),quick ad precise operation;auto-lubrication system(optional)and die & roller lifting device,save labor;on-site touch screen control. Maximum size conditioner in feed pellet machine Industry to maximize the production capacity. A large number of components are manufactured by forging technology, which is strong and durable.

ModelCapacity(TPH)Main Motor Power(kw)Feeder Motor Power(kw)Conditioner Power(kw)Dia.of Ring Die(mm)Final Pellet(mm)
SZLH2501-2220.751.52502~12

Animal Feed Pellet Machine With Triple-layer Conditioner

Model Capacity(TPH) Main Motor Power(kw) Feeder Motor Power(kw) Conditioner Power(kw) Dia.of Ring Die(mm) Final Pellet(mm)
SZLH250 1-2 22 0.75 1.5 250 2~12
SZLH320 3-4 37 1.5 2.2 320 2~12
SZLH350 5-7 55 1.5 3 350 2~12
SZLH420 8-12 110 1.5 7.5 420 2~12
SZLH508 10-18 160 2.2 11 508 2~12
SZLH558 15-25 180/200 2.2 11 558 2~12
SZLH558D 14-22 160/180/200 1.5 7.5 558 2~18
SZLH678 20-30 220/250 2.2 11 678 2~12
SZLH678D 15-25 200/220/250 2.2 11 673 2~18
SZLH768 25-40 280/315 2.2 11 768 2~12
SLZH858 25-42 280/315 2.2 15 858 2~18

What Are The Parts of Pellet Machine?

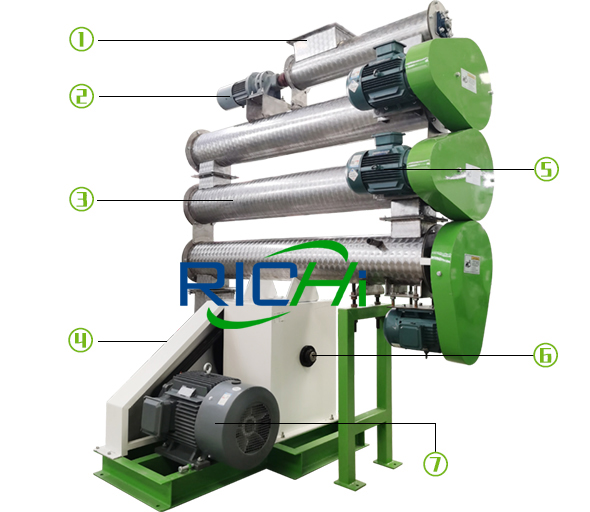

Pellet machine is a key equipment for the production of pellets, which composed of multiple components. It is mainly composed of drive system, feeding system, pelletizing system, etc. The following figure is for reference.

Contact Us
Animal Feed Pellet Machine With Triple-layer Conditioner
1. Stainless Stell Feeder
2. Frequency Conversion Motor
3. Triple-Layer Stainless Stell Conditioner
4. Pelletizing Chamber
5. Conditioner Motor
6. Bearing Protection
7. Animal Feed Pellet Machine Main Motor

Detailed Instructions of Pellet Machine

RICHI always believes that good products are one of the important indicators of corporate survival. We use high-standard materials in the production process and cooperate with internationally renowned brands to ensure that we can bring high-quality equipment to customers. The following is a detailed display of RICHI pellet machine.

Contact Us
  • Frequency Control Feeder with Anti-caking device

  • Stainless steel conditioner, 304 stainless steel, used for feed ripening, sterilization, improve water resistance and output

  • 304 Stainless steel paddles, precise Angledesign, reasonable blade layout, corrosion resistance

  • Imported gear box, high processing accuracy, high transmission efficiency, low energy consumption

  • Siemens Motors

  • 304 stainless steel ring die, corrosion resistance, Full automatic CNC ring die drilling machine and vacuum heat treatment technology

  • Press Roller Section - Made of 40CrMnTi, the structure of the eccentric shaft can better adjust the distance between the ring die and press roller

Application of Animal Feed Pellet Machine

Typically, the production of animal feed pellets uses raw materials such as corn, soybeans, wheat and other nutrients as the formula. Our feed pellet machines are specially used to produce feed for poultry, livestock, cattle and sheep. For different animals, different growth cycles, (chicks, suckling pigs, calves, etc.), the feed pellet size required is different, but our equipment only needs to replace ring molds with different apertures or use a pellet crumbler to reach the required size.

Contact Us Application of Animal Feed Pellet Machine

Equipment In RICHI Workshop

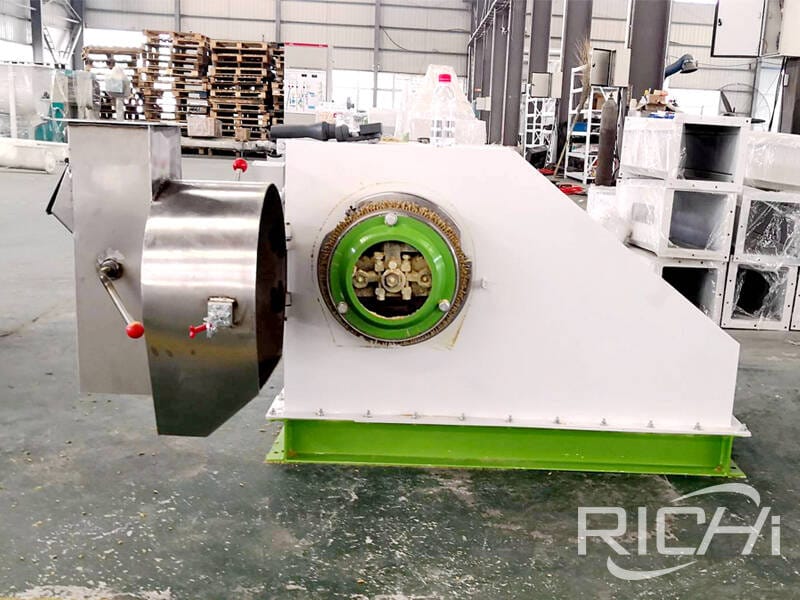

Animal Feed Pellet Machine
Animal Feed Pellet Machine

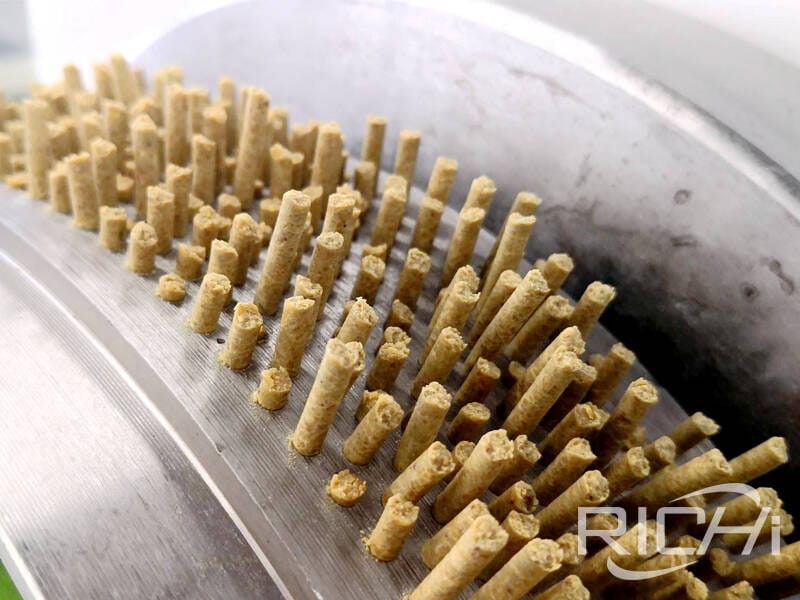

Animal Feed Pellets
Animal Feed Pellets

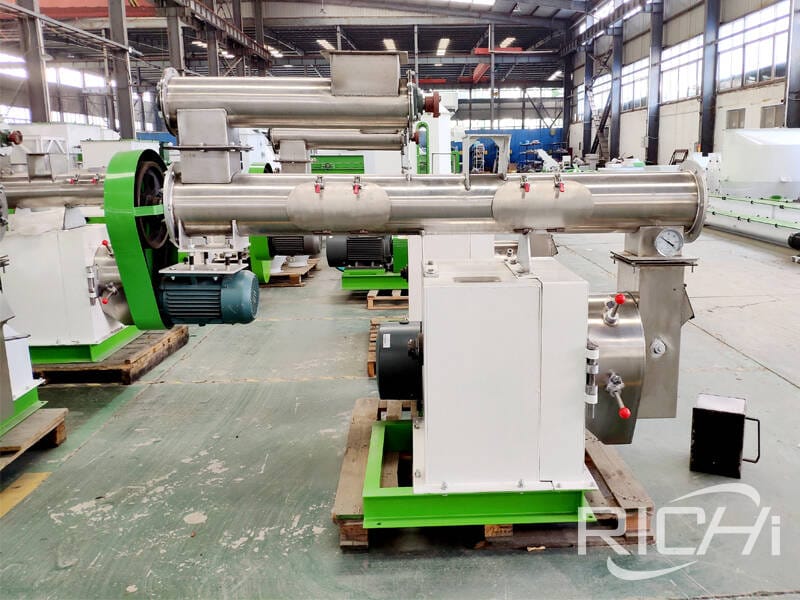

Animal Feed Pellet Making Machine
Animal Feed Pellet Making Machine

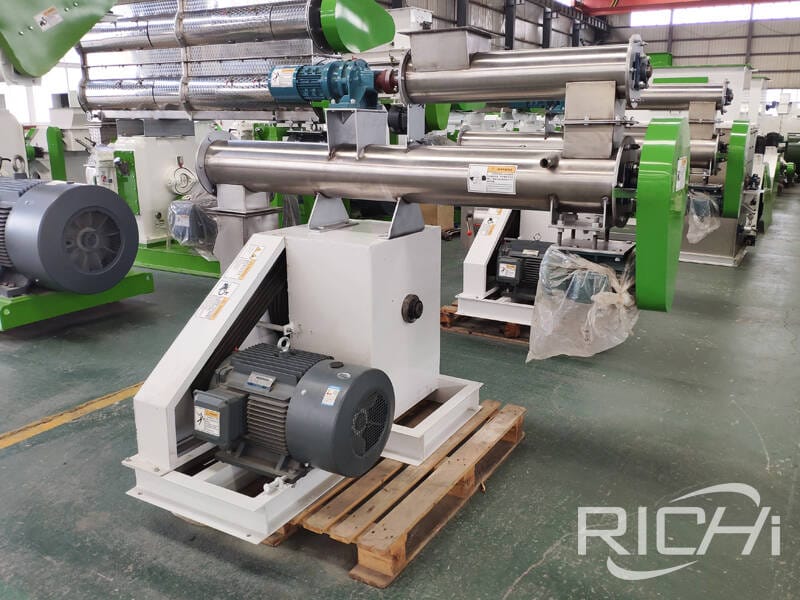

Animal Feed Pellet Mill
Animal Feed Pellet Mill

Application

Our products are usually used in conjunction with other equipment in the production line and have a wide range of applications. The following are common pellet production lines for reference only. If you have different requirements, please contact us for customization.
