Hemp Pellet Making Machine

Hemp Pellet Making Machine
Brand : RICHI
Capacity : 2-2.5T/H
Model : MZLH520
Main Power : 132KW

Guiding Price :
FOB 40000-60000 USD

Get Quote

Brief Introduction

Materials such as grass, alfalfa, hemp and hops are lighter, RICHI grass/alfalfa/hemp/hops pellet machine series have added a forced feeding device to improve granulation efficiency and capacity.

Get Quote

RICHI hemp pellet making machine, the support bar and main shaft are forged together, keep uniform gap between roller and ring die, ensure high efficiency. Increased forced feeding device, output increases 10-12%. Add oil when starting up, user can set the adding oil volume and period according to the case, avoid wrong operation hurting the machine. Stainless steel gate, long durability. Pneumatic fast discharging gate, avoid burning the motor or damage the equipment. Forged bearing, long durability.

ModelAnti-caking Feeder PowerForced Feeder PowerPellet Machine PowerCapacity
(wood sawdust)
Capacity
(grass,straw)
Capacity
(organic fertilizer)
Final Pellet
MZLH5202.2KW0.75KW160KW2.0-2.5 T/H3-4 T/H7-8 T/H6-12mm

Hemp Pellet Making Machine

Model MZLH320 MZLH350 MZLH420 MZLH520 MZLH768 MZLH858
Capacity 300-400kg/h 500-700kg/h 1.0-1.2 t/h 2.0-2.5 t/h 2.5-4 t/h 3-4.5 t/h
Power 37kw 55kw 90kw 110/132kw 250/280kw 280kw
Final Pellet 6-12mm 6-12mm 6-12mm 6-12mm 6-12mm 6-12mm

What Are The Parts of Hemp Pellet Making Machine?

Hemp Pellet Making Machine is a key equipment for the production of pellets, which composed of multiple components. It is mainly composed of drive system, feeding system, pelletizing system, etc. The following figure is for reference. It can be seen that in order to adapt to the particularity of the raw materials, we have increased the size of the feeding port and added a forced feeder, which not only solves the problem of low production efficiency of biomass particles, but also effectively reduces waste of raw materials.

Contact Us
Hemp Pellet Making Machine
1. Feeder
2. Gear reducer
3. Frequency Conversion Motor
4. SKF Bearing
5. Cutter Assembly
6. Forced Feeder Motor
7. Gearbox
8. SIEMENS Motor
9. Conditioner Motor
10. Stainless Steel Conditioner

Detailed Instructions of Hemp Pellet Making Machine

RICHI always believes that good products are one of the important indicators of corporate survival. We use high-standard materials in the production process and cooperate with internationally renowned brands to ensure that we can bring high-quality equipment to customers. The following is a detailed display of RICHI Hemp Pellet Making Machine.

Contact Us
  • Frequency Control Feeder with Anti-caking device

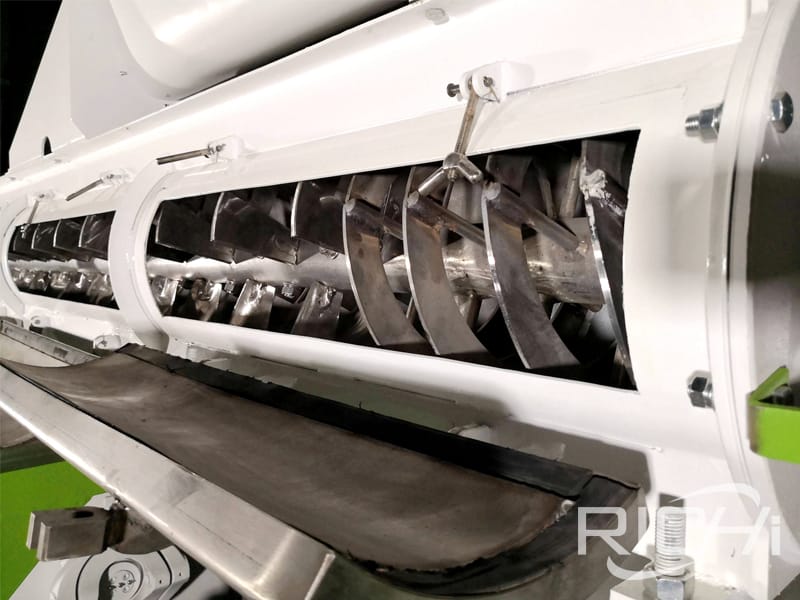

  • Stainless steel conditioner, 304 stainless steel, used for feed ripening, sterilization, improve water resistance and output

  • 304 Stainless steel paddles, precise Angledesign, reasonable blade layout, corrosion resistance

  • Imported gear box, high processing accuracy, high transmission efficiency, low energy consumption

  • Siemens Motors

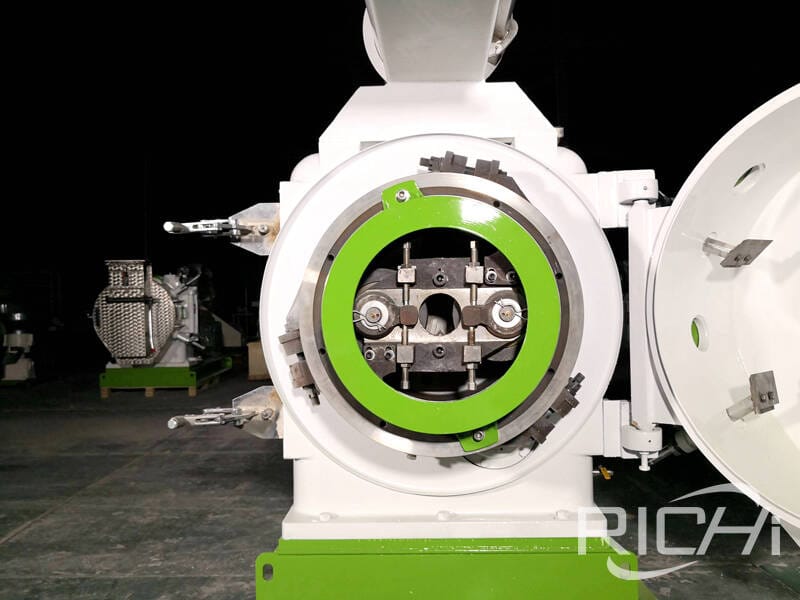

  • 304 stainless steel ring die, corrosion resistance, Full automatic CNC ring die drilling machine and vacuum heat treatment technology

  • Press Roller Section - Made of 40CrMnTi, the structure of the eccentric shaft can better adjust the distance between the ring die and press roller

Application of Hemp Pellet Making Machine

Henan Richi Machinery hemp pellet Making machine is mainly suitable for the production of cattle feed, sheep feed with grass, hay, alfalfa, or the other husk material pellets.

Contact Us Application of Hemp Pellet Making Machine

Equipment In RICHI Workshop

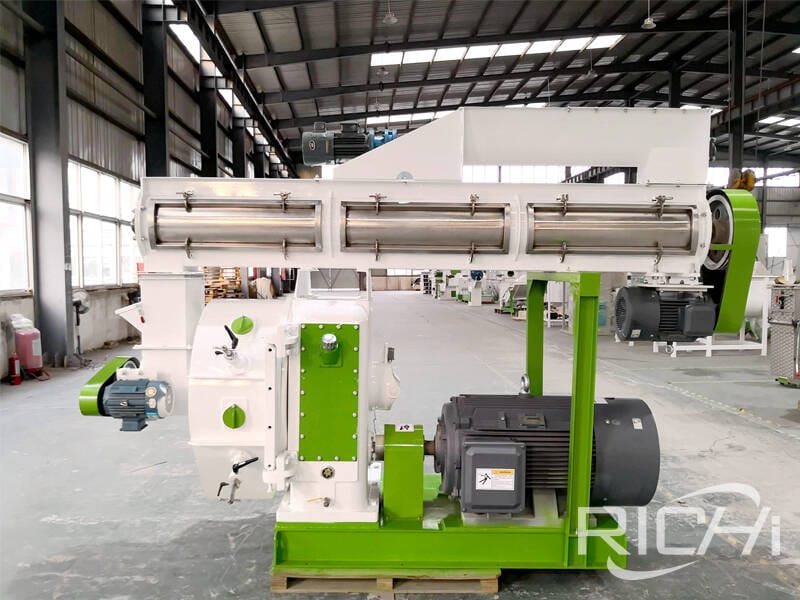

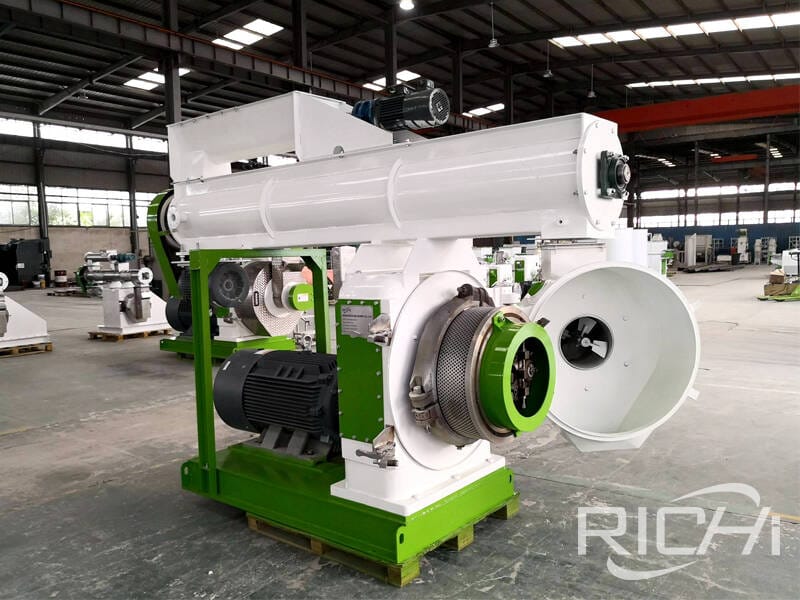

Hemp Pellet Machine
Hemp Pellet Machine
Alfalfa Pellet Machine
Alfalfa Pellet Machine
Spiral Conditioner
Spiral Conditioner
Press Roller
Press Roller

Related Pellet Production Line

Our products are usually used in conjunction with other equipment in the pellet production line and have a wide range of applications. The following are common pellet production lines for reference only. If you have different raw materials or different requirements, please contact us for customization.
