Cat Litter Pellet Making Machine

Cat Litter Pellet Making Machine
Brand : RICHI
Capacity : 8-12T/H
Main Power : 110KW

Application :
Pellet Industry

Brief Introduction

The material passing through the modulator enters the granulation chamber and rapidly extruded through the ring die and the press roller to form cylindrical pellets.

With double-layer conditioner inside, better for making cat litter; Manufacturing according to internationally advanced technology standard; The quality matching with the European standard; Gear driving system, with good transmission rate, stable and reliable performance and low noise; The key components are imported to ensure longer service life and lower cost for maintenance; Raw material contacting parts are made by stainless steel; Hydraulic system for ring die change and roller adjustment(optional), quick ad precise operation; auto-lubrication system(optional)and die & roller lifting device, save labor; on-site touch screen control.

ModelCapacity(TPH)Main Motor Power(kw)Feeder Motor Power(kw)Conditioner Power(kw)Dia.of Ring Die(mm)Final Pellet(mm)
SZLH4208-121101.57.54202~12

Application of Cat Litter Pellet Making Machine

The RICHI series granulator is suitable for the production of cat litter with good water absorption and no odor, such as bentonite. It has good discharge and high output.

What Are The Parts of Pellet Machine?

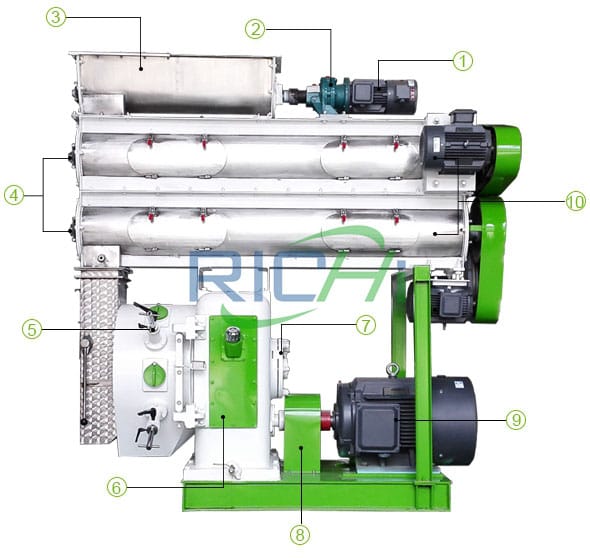

Pellet machine is a key equipment for the production of pellets, which composed of multiple components. It is mainly composed of drive system, feeding system, pelletizing system, etc. The following figure is for reference.

Cat Litter Pellet Making Machine
1. Frequency Conversion Motor
2. Gear Reducer
3. Stainless Steel Feeder
4. SKF Bearing
5. Pelletizing Chamber
6. Gearbox
7. Safety Assembly
8. Shaft Coupling
9. SIEMENS Motor
10. Stainless Steel Conditioner

Detailed Instructions of Pellet Machine

RICHI always believes that good products are one of the important indicators of corporate survival. We use high-standard materials in the production process and cooperate with internationally renowned brands to ensure that we can bring high-quality equipment to customers. The following is a detailed display of RICHI pellet machine.

  • Frequency Control Feeder with Anti-caking device

  • Stainless steel conditioner, 304 stainless steel, used for feed ripening, sterilization, improve water resistance and output

  • 304 Stainless steel paddles, precise Angledesign, reasonable blade layout, corrosion resistance

  • Imported gear box, high processing accuracy, high transmission efficiency, low energy consumption

  • Siemens Motors

  • 304 stainless steel ring die, corrosion resistance, Full automatic CNC ring die drilling machine and vacuum heat treatment technology

  • Press Roller Section - Made of 40CrMnTi, the structure of the eccentric shaft can better adjust the distance between the ring die and press roller

Equipment In RICHI Workshop

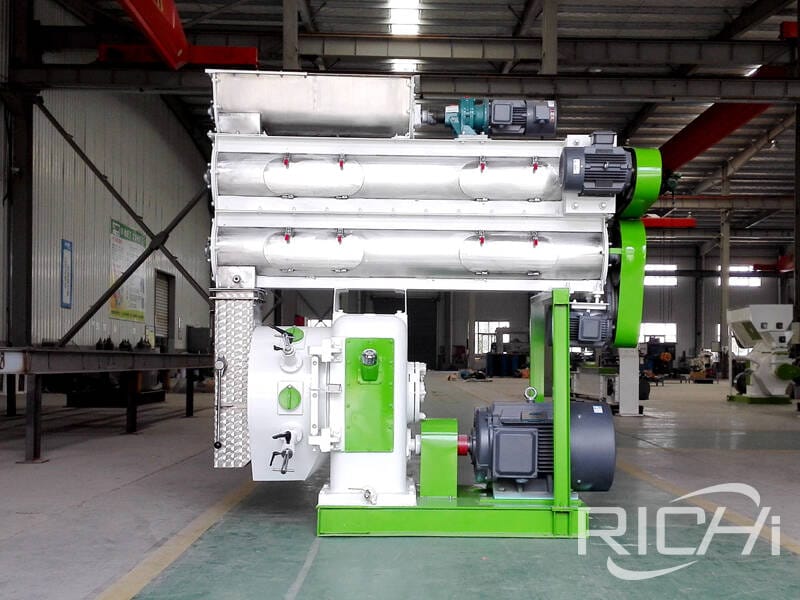

Cat Litter Pellet Making Machine

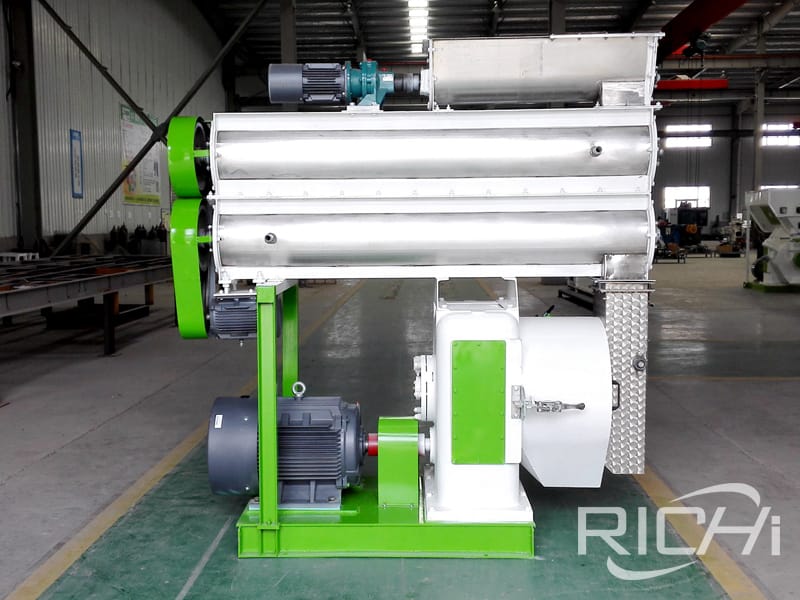

Cat Litter Pellet Making Machine

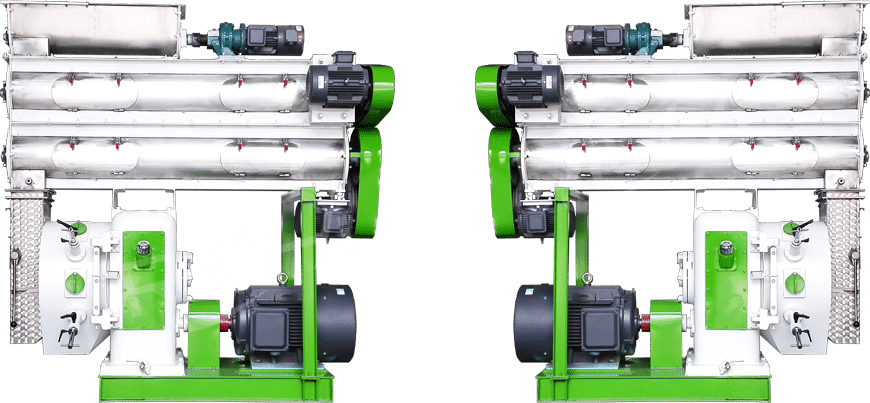

Pellet Production Equipment
Pellet Production Equipment

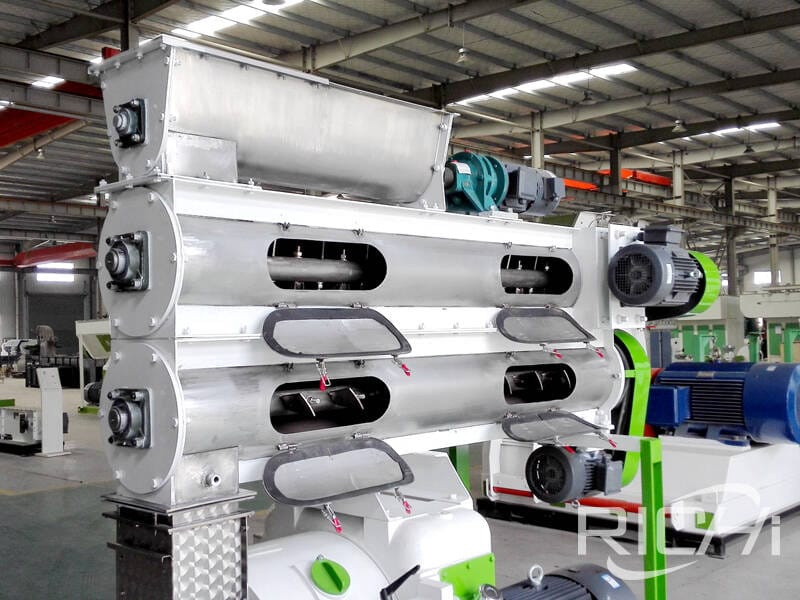

Double-layer Conditioner
Double-layer Conditioner

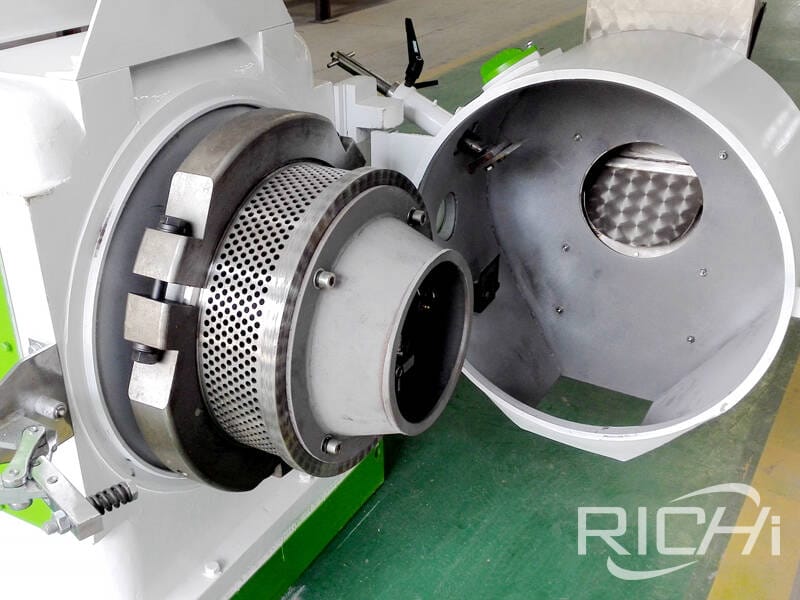

Pelletizing Chamber
Pelletizing Chamber

Application

Our products are usually used in conjunction with other equipment in the production line and have a wide range of applications. The following are common pellet production lines for reference only. If you have different requirements, please contact us for customization.

×
×
