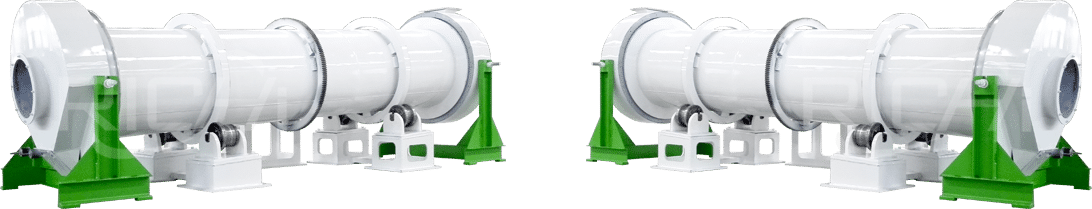

Rotary Drum Dryer

Rotary Drum Dryer
Brand : RICHI
Capacity : Customized
Model :
Main Power : -

Guiding Price :
FOB 4000-50000 USD

Get Quote

Brief Introduction

The wood sawdust(chips) rotary drum drying machine consists of a large rotating cylindrical tube supported by a steel beam. The body is slightly tilted so that the discharge end is lower than the feed end to transport material through the dryer under the force of gravity.

Get Quote

Wood Sawdust(Chips) Rotary Drum Drying Machine using a new multi-modular lifting means to overcome the traditional dryer "tunnel" phenomenon, high thermal efficiency, and effectively reduce the coal consumption is about 20%. RICHI specially designed retaining wheel structure for the tumble dryer greatly reduces the horizontal thrust caused by the tilting work of the equipment. In addition, the thermal efficiency of the equipment is up to 80% (the traditional single-cylinder dryer thermal efficiency is only 32%) and the thermal efficiency is increased by 48%. The tumble dryer has strong adaptability to materials, can dry various materials, and the equipment operation is simple and reliable.

Modelф1200*120000ф1500*150000ф1800*180000ф2400*100000ф2400*100000*3
Cycloneф800*2ф800*2ф1000*2ф1000*2ф1000*2

Rotary Drum Dryer

Modelф1200*120000ф1500*150000ф1800*180000ф2400*100000ф2400*100000*3
Cycloneф800*2ф800*2ф1000*2ф1000*2ф1000*2
ApplicationApplicable to low-temperature continuous drying material in large quantity, such as sawdust , wood chips ,grass ,dregs and etc
Fuel OptionsBark, wood pellets, wood chips, wood waste, natural gas, LPG, coal, etc

What Are The Parts of Pellet Machine?

Pellet machine is a key equipment for the production of pellets, which composed of multiple components. It is mainly composed of drive system, feeding system, pelletizing system, etc. The following figure is for reference.

Get Quote

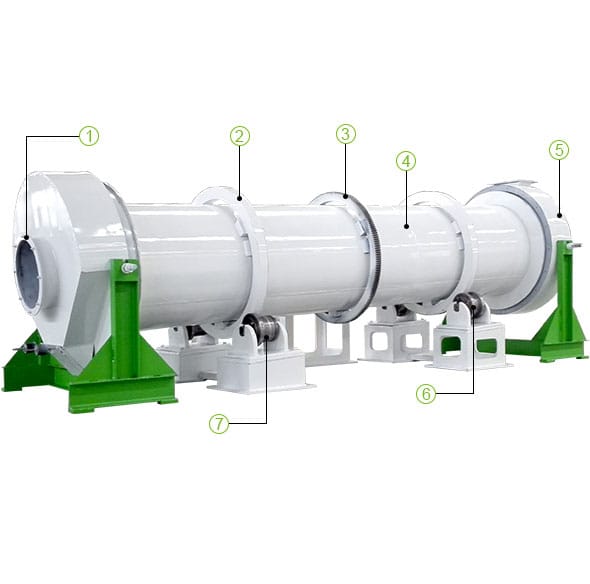

Rotary Drum Dryer
1. Raw Material Feed Inlet
2. Gear/Sprocket Guard
3. Riding Ring/Tire
4. External Insulation of Dryer Machine
5. Raw Material Feed Outlet
6. Drive Assembly
7. Drive Assembly

Detailed Instructions of Pellet Machine

RICHI always believes that good products are one of the important indicators of corporate survival. We use high-standard materials in the production process and cooperate with internationally renowned brands to ensure that we can bring high-quality equipment to customers. The following is a detailed display of RICHI pellet machine.

Get Quote
  • Dense lifting plate accelerates the diffusion of raw materials and improves drying efficiency

  • The drying machine uses thickened steel to maximize heat preservation and maintain the temperature inside the dryer

  • Compared with other manufacturers, RICHI insists on using thicker steel to improve product quality

  • We optimized the arrangement of the lifting plate and improved the drying efficiency of the dryer

  • RICHI rotary drying machine is more suitable for drying feed ingredients, biomass products, wood sawdust, wood chips, etc

  • RICHI provide equipment production and installation, as well as design customization services for complete production lines

  • RICHI insists on using high-quality accessories to improve product stability, reduce user maintenance costs and use risks

Application of Rotary Drum Dryer

Henan Richi Machinery Rotary Drum Dryer Machine is an industrial dryer used to reduce or reduce the liquid moisture content of materials.

Get Quote

Accessories

RICHI manufactures high-spec accessories using high-quality steel to improve equipment quality and reduce customer maintenance costs.

Get Quote
siemens motor
SIEMENS
Motor
SKF bearing
SKF
Bearing
pellet machine ring die
Pellet Machine
Ring Die
pellet machine ring die
Pellet Machine
Ring Die

Equipment In RICHI Workshop

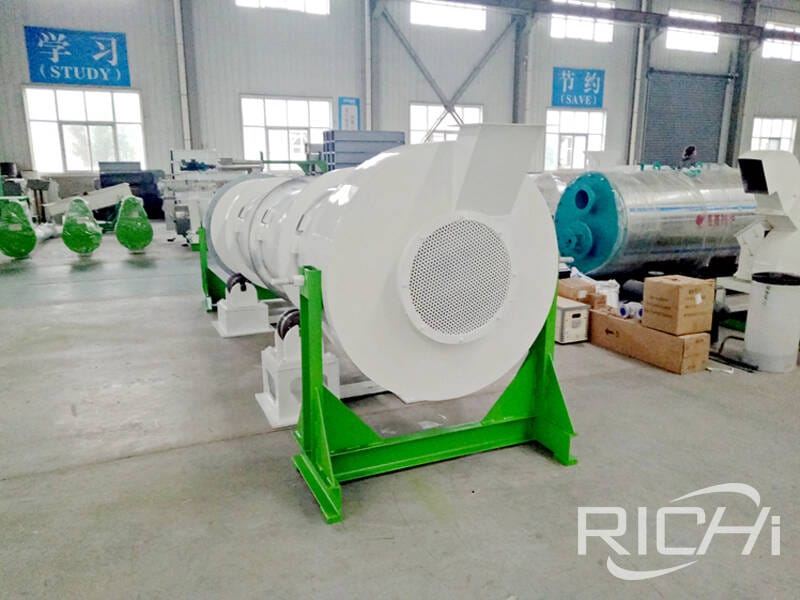

Rotary Drum Dryer
Rotary Drum Dryer

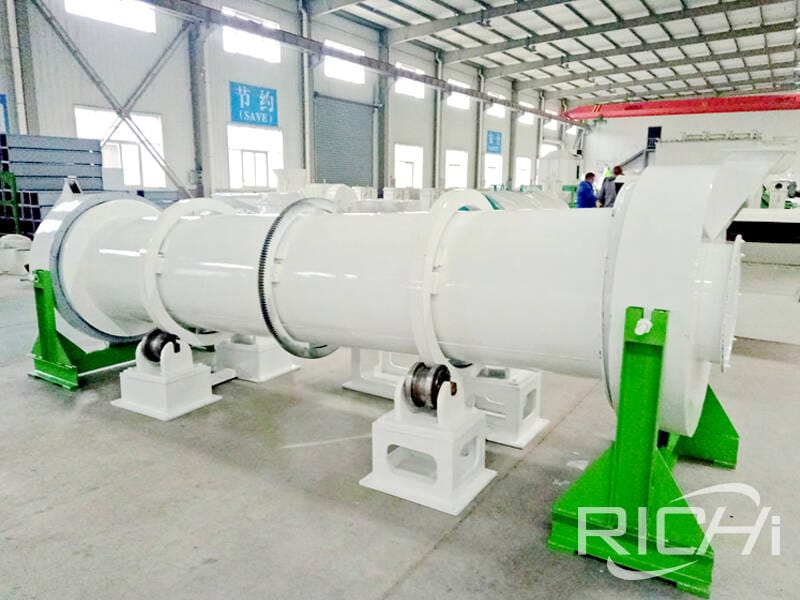

Wood Sawdust Rotary Drying System
Wood Sawdust Rotary Drying System

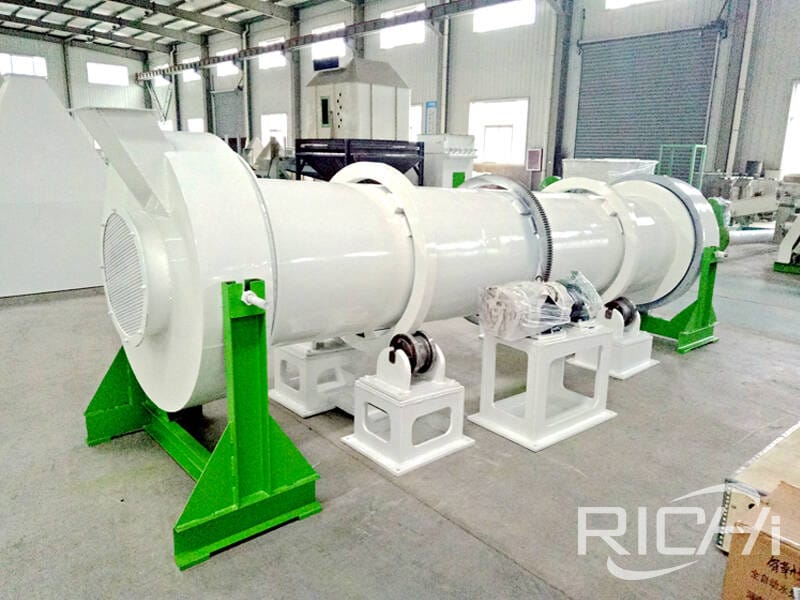

Rotary Dryer Machine
Rotary Dryer Machine

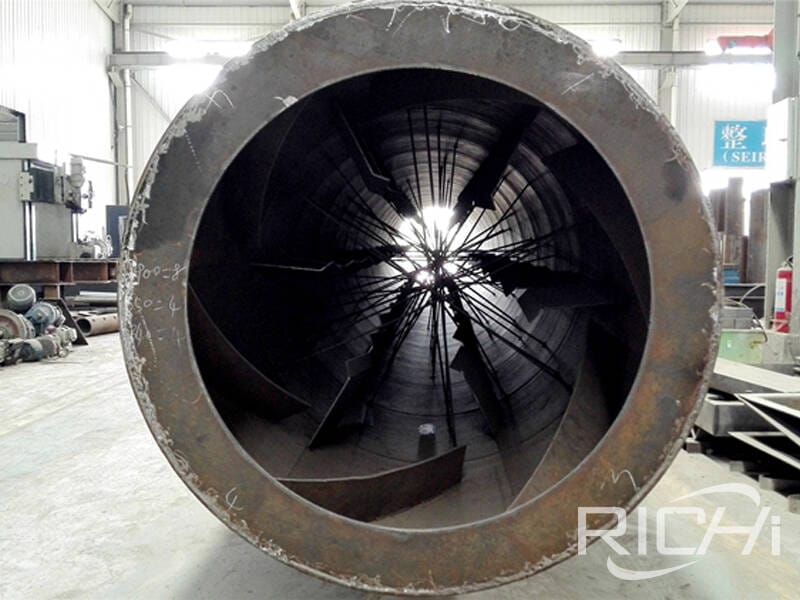

Multi-combination Lifting Device
Multi-combination Lifting Device
