Feed Hammer Mill

Feed Hammer Mill
Brand : RICHI
Capacity : 10-13T/H
Model : SFSP66*80b
Main Power : 110KW

Guiding Price :
FOB 5300-34000 USD

Get Quote

Brief Introduction

Feed Hammer Mill widely used in the crushing of raw materials for animal feed processing enterprises, and then used to produce high-grade animal feed and aquatic feed.

Get Quote
Feed Hammer Mill widely used in the crushing of raw materials for animal feed processing enterprises, and then used to produce high-grade animal feed and aquatic feed.

SFSP Series Feed Hammer Mill widely used in animal feed processing, brewing, chemical and biological industry. Patented ventilating from shaft end system, output of small aperture material increase by more than 25%. Widened grinding surface, fully optimized hammer arrangement, wonderful performance in micro grinding. High-precision dynamic balance detecting rotor, little vibration, low noise. We use the new-type adjustable sieve pressure plate, adjustable back gauge and tuning technique, to destroy the material circulation layer, and equipped with safety interlocking device for safety.

ModelPowerCapacitySpeed
SFSP66*80b110kw10-13T/H2980r/min

Feed Hammer Mill

ModelSFSP56*40aSFSP56*40bSFSP66*60aSFSP66*60bSFSP66*80aSFSP66*80bSFSP66*100SFSP138*30ESFSP138*40E
Power30kw37kw55kw75kw90kw110kw132kw110/132kw132/160kw
Capacity3-5T/H4-6T/H5-8T/H6-9T/H8-10T/H10-13T/H12-16T/H15-20T/H18-25T/H
Speed2980r/min2980r/min2980r/min2980r/min2980r/min2980r/min2980r/min1440r/min1440r/min

What Are The Parts of Feed Hammer Mill?

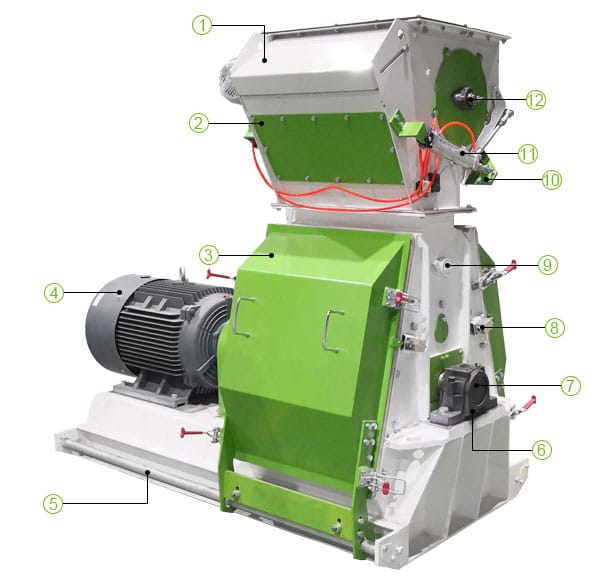

Feed Hammer Mill is a key equipment for the production of pellets, which composed of multiple components. It is mainly composed of drive system, feeding system, crushing system, etc. The following figure is for reference.

Contact Us
Feed Hammer Mill
1. Air Outlet
2. Frequency Conversion Impeller Feeder
3. Access Door
4. Siemens Main Motor
5. Slide Rail
6. NSK Bearing Seat
7. SKF Bearing
8. Safety Limit Switch
9. Deflector
10. Iron Removal Device
11. Cylinder
12. Rotor

Detailed Instructions of Feed Hammer Mill

RICHI always believes that good products are one of the important indicators of corporate survival. We use high-standard materials in the production process and cooperate with internationally renowned brands to ensure that we can bring high-quality equipment to customers. The following is a detailed display of RICHI pellet machine.

Contact Us
  • We have redesigned the feeder to be more precise, more convenient and more efficient

  • Open the magnet door pneumatically, the adsorbed iron filings and other debris will automatically fall off

  • All RICHI equipment promises to use SKF bearings to improve equipment stability and service life

  • The feeder mainly uses a frequency conversion motor with a reducer, which can maintain the feeding volume and uniformity

  • We use a replaceable screen device, you can change the screen at any time to achieve the fineness of the crush

  • Our RICHI equipment uniformly uses high-end limit switches to ensure the safety of equipment and operators

  • The feeder with iron removal device can further clean the raw materials and protect the safe operation of the equipment

Multifunctional SFSP Animal Feed HammerMill

Henan Richi Machinery Feed Hammer Mill is suitable for processing raw materials (corn, soybean, wheat, grain, etc.) into powder, with wide application range and large capacity.

Contact Us Multifunctional SFSP Animal Feed HammerMill

Accessories

We use high-precision motors and bearings, and use a shiftable operating door and a linkage screen mechanism to allow customers to change screens and hammers.

Contact Us
siemens motor
SIEMENS
Motor
SKF bearing
SKF
Bearing
grinder hammer
Grinder
Hammer
grinder screen sheet
Grinder
Screen Sheet

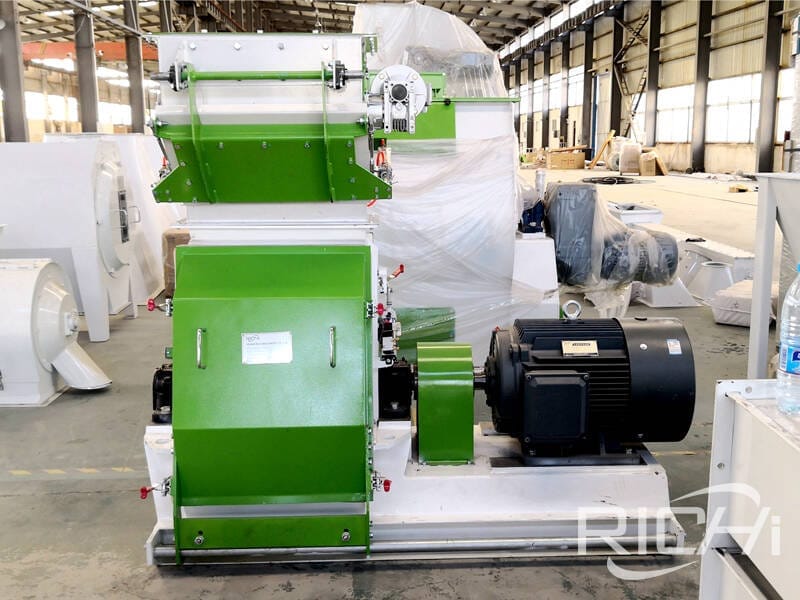

Equipment In RICHI Workshop

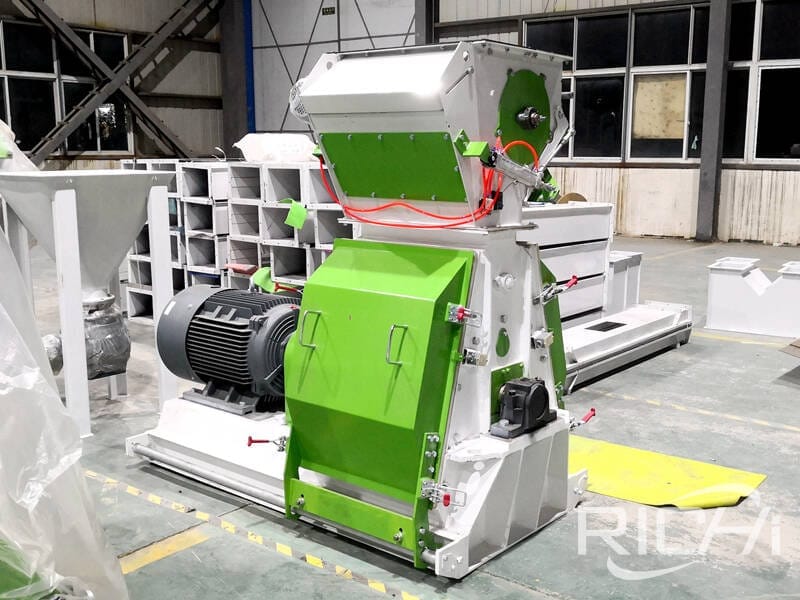

Feed Hammer Mill
Feed Hammer Mill
Crushing Machine
Crushing Machine

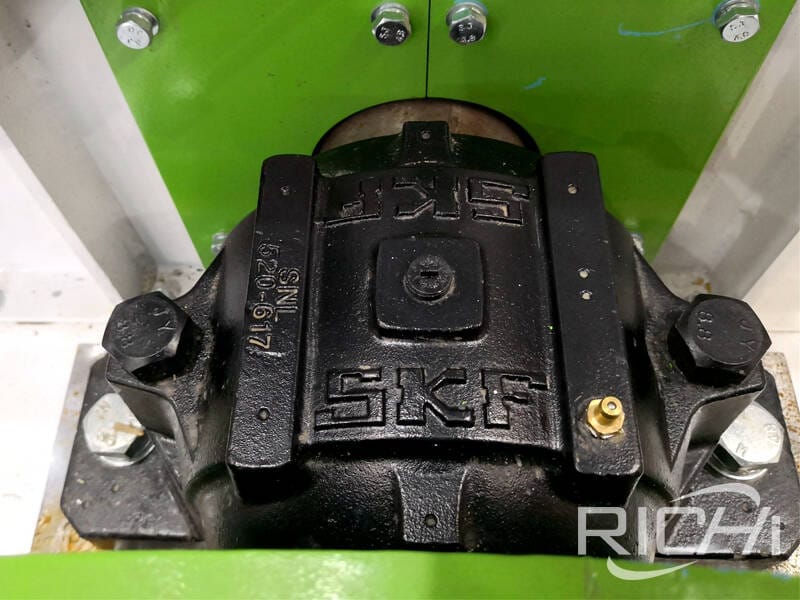

SKF Bearing
SKF Bearing

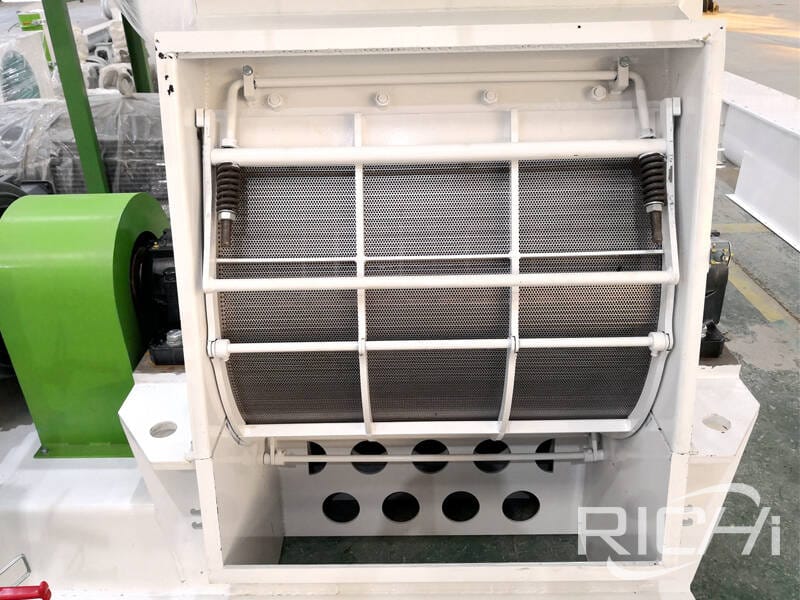

Screen on Hammer Mill
Screen on Hammer Mill

Cases

×
Equipment In RICHI Workshop
×
×
