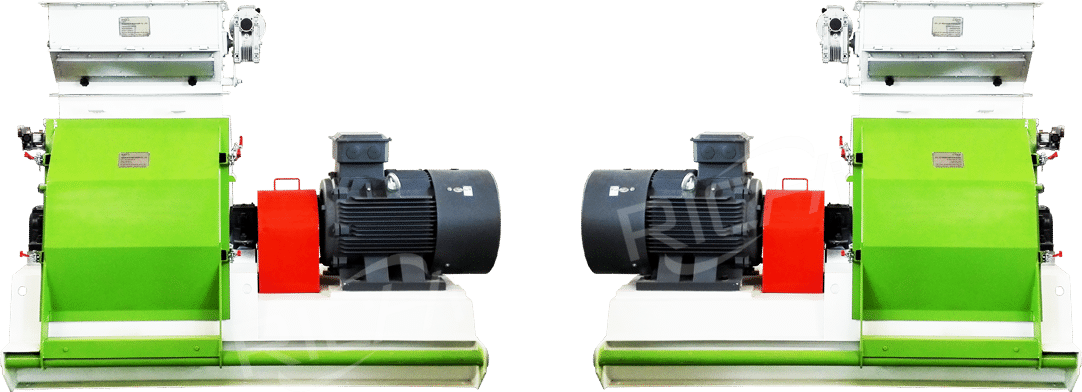

Animal Feed Hammer Mill

Animal Feed Hammer Mill
Brand : RICHI
Capacity : 6-9T/H
Model : SFSP66*60b
Main Power : 75KW

Guiding Price :
FOB 5300-34000 USD

Get Quote

Brief Introduction

Henan Richi Machinery offers high-performance animal feed hammer mills for optimum size reduction of raw material, which covers the need for extremely fine or coarse grinding at high capacity.

Get Quote
Henan Richi Machinery offers high-performance animal feed hammer mills for optimum size reduction of raw material, which covers the need for extremely fine or coarse grinding at high capacity.

Decades of experience and highly qualified product specialists make RICHI a strong partner in the supply of animal feed hammer mills for size reduction. We use the new-type adjustable sieve pressure plate, adjustable back gauge and tuning technique, to destroy the material circulation layer, and equipped with safety interlocking device for safety. Now the RICHI SFSP Series Feed Hammer Mills covers the need for extremely fine or coarse grinding at high capacity.

ModelPowerCapacitySpeed
SFSP66*60b75kw6-9T/H2980r/min

Animal Feed Hammer Mill

ModelSFSP56*40aSFSP56*40bSFSP66*60aSFSP66*60bSFSP66*80aSFSP66*80bSFSP66*100SFSP138*30ESFSP138*40E
Power30kw37kw55kw75kw90kw110kw132kw110/132kw132/160kw
Capacity3-5T/H4-6T/H5-8T/H6-9T/H8-10T/H10-13T/H12-16T/H15-20T/H18-25T/H
Speed2980r/min2980r/min2980r/min2980r/min2980r/min2980r/min2980r/min1440r/min1440r/min

What Are The Parts of Animal Feed Hammer Mill?

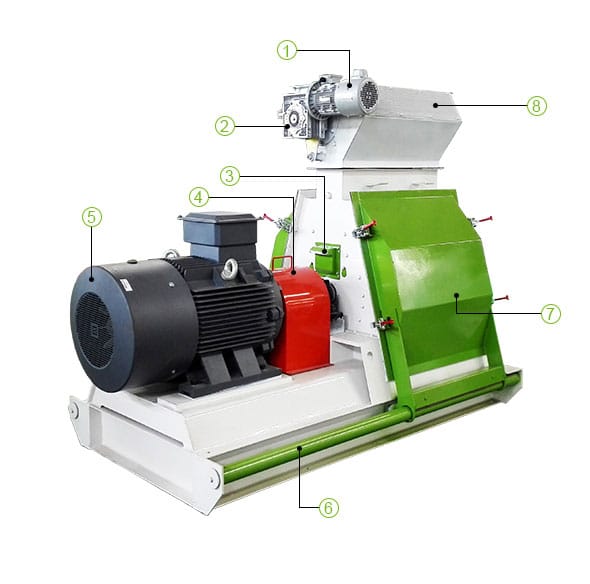

Animal Feed Hammer Mill is a key equipment for the production of pellets, which composed of multiple components. It is mainly composed of drive system, feeding system, crushing system, etc. The following figure is for reference.

Contact Us
Animal Feed Hammer Mill
1. Frequency Conversion Motor
2. Motor Reducer
3. Air Outlet
4. Coupling
5. Siemens Main Motor
6. Slide Rail
7. Access Door
8. Frequency Conversion Feeder

Detailed Instructions of Animal Feed Hammer Mill

RICHI always believes that good products are one of the important indicators of corporate survival. We use high-standard materials in the production process and cooperate with internationally renowned brands to ensure that we can bring high-quality equipment to customers. The following is a detailed display of RICHI pellet machine.

Contact Us
  • We have redesigned the feeder to be more precise, more convenient and more efficient

  • Open the magnet door pneumatically, the adsorbed iron filings and other debris will automatically fall off

  • All RICHI equipment promises to use SKF bearings to improve equipment stability and service life

  • The feeder mainly uses a frequency conversion motor with a reducer, which can maintain the feeding volume and uniformity

  • We use a replaceable screen device, you can change the screen at any time to achieve the fineness of the crush

  • Our RICHI equipment uniformly uses high-end limit switches to ensure the safety of equipment and operators

  • The feeder with iron removal device can further clean the raw materials and protect the safe operation of the equipment

Large Capacity, Wide Application Range

RICHI uses advanced drop-shaped crushing chamber design, the secondary crushing structure is reasonable, and the output is increased by 25% compared with other models.

Contact Us Large Capacity, Wide Application Range

Accessories

High quality products require high quality auxiliary parts. We use Siemens motors and SKF bearings to ensure product stability and efficiency.

Contact Us
siemens motor
SIEMENS
Motor
SKF bearing
SKF
Bearing
grinder hammer
Grinder
Hammer
grinder screen sheet
Grinder
Screen Sheet

Equipment In RICHI Workshop

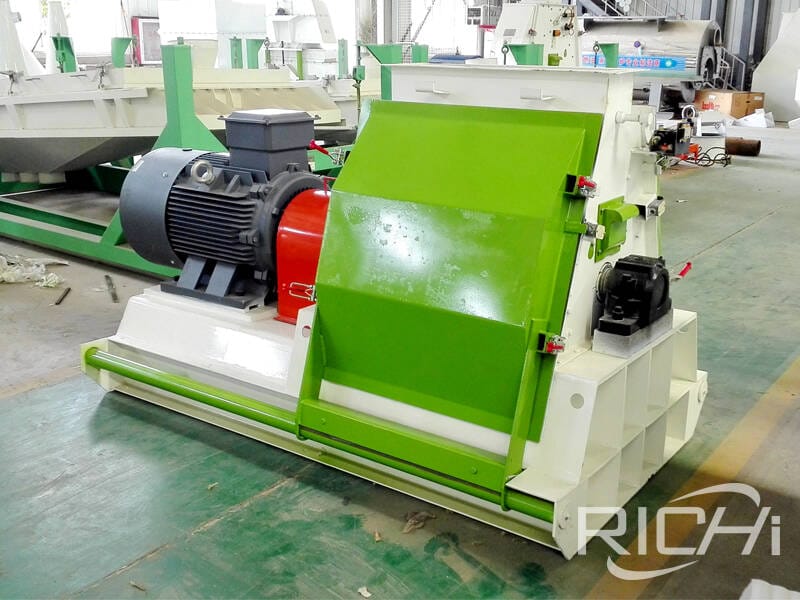

Feed Hammer Mill in Workshop
Feed Hammer Mill in Workshop

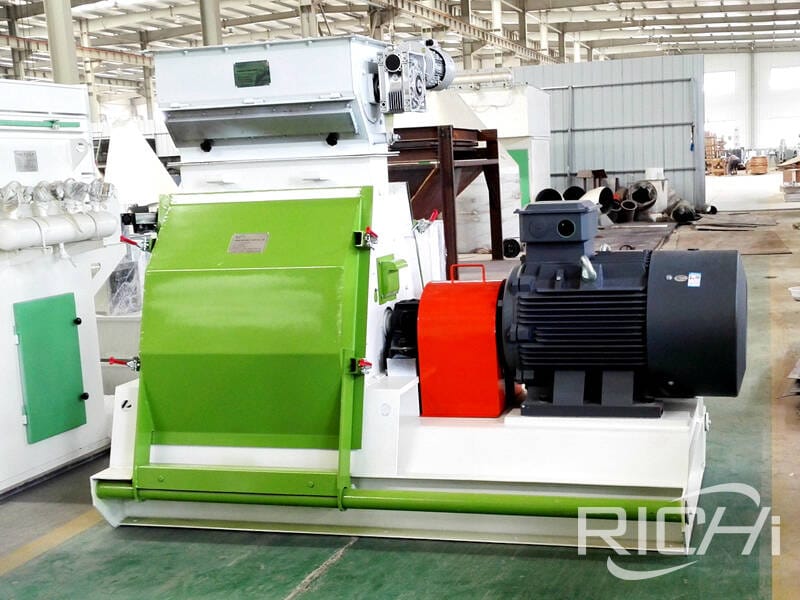

Animal Feed Hammer Mill
Animal Feed Hammer Mill

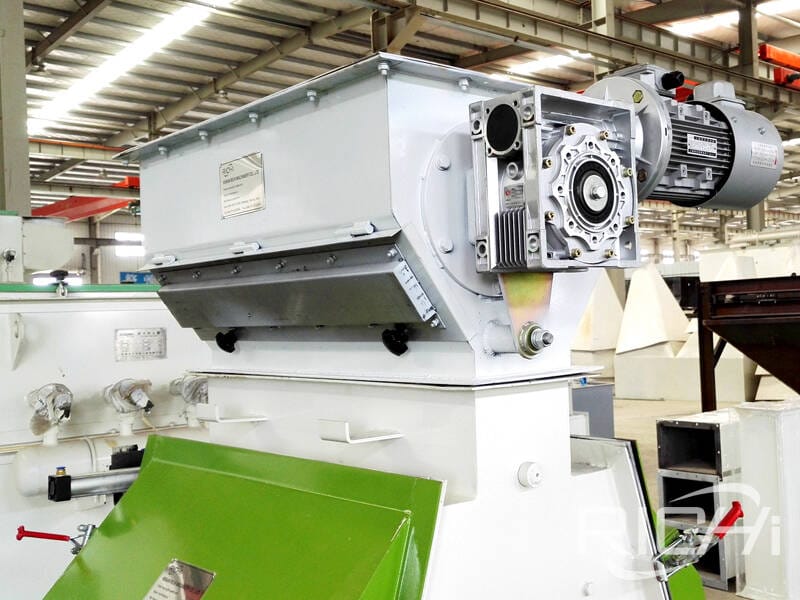

Frequency Conversion Feeder
Frequency Conversion Feeder

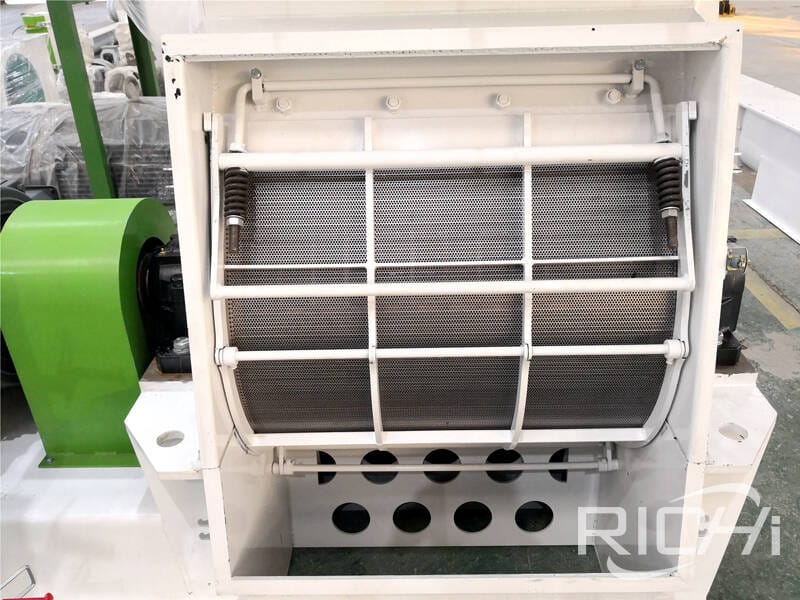

Screen of Feed Hammer Mill
Screen of Feed Hammer Mill
