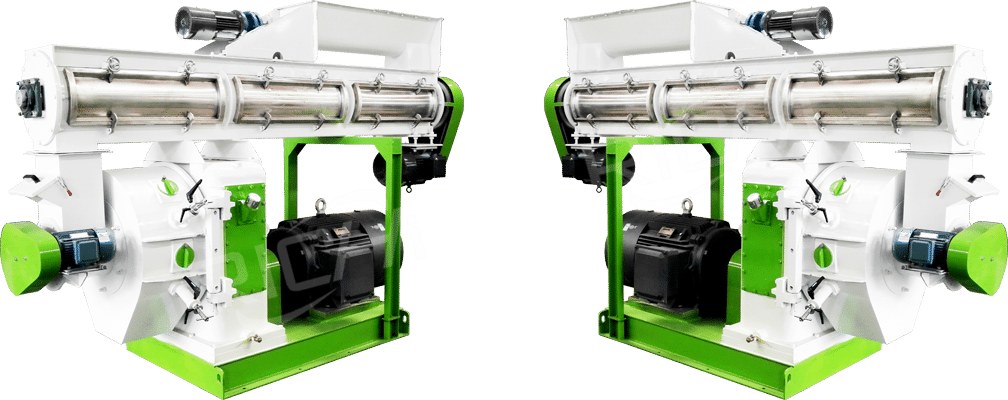

Cattle/Sheep Feed Pellet Machine

Cattle/Sheep Feed Pellet Machine
Brand : RICHI
Capacity : 5-7T/H
Main Power : 55KW

Application :
Ruminant Feed Industry

Brief Introduction

The material passing through the modulator enters the granulation chamber and rapidly extruded through the ring die and the press roller to form cylindrical pellets.

RICHI cattle/sheep feed pellet machine, the support bar and main shaft are forged together, keep uniform gap between roller and ring die, ensure high efficiency. Increased forced feeding device, output increases 10-12%. Add oil when starting up, user can set the adding oil volume and period according to the case, avoid wrong operation hurting the machine. Stainless steel gate, long durability. Pneumatic fast discharging gate, avoid burning the motor or damage the equipment. Forged bearing, long durability.

ModelCapacity(TPH)Main Motor Power(kw)Feeder Motor Power(kw)Conditioner Power(kw)Dia.of Ring Die(mm)Final Pellet(mm)
SZLH3505-7551.533502~12

Application of Cattle/Sheep Feed Pellet Machine

It is based on crushed materials such as alfalfa, grass, hay, corn, soybean meal, and wheat, and widely used in grain and feed processing plants, livestock farms, poultry farms, or large, medium and small feed processing plants.

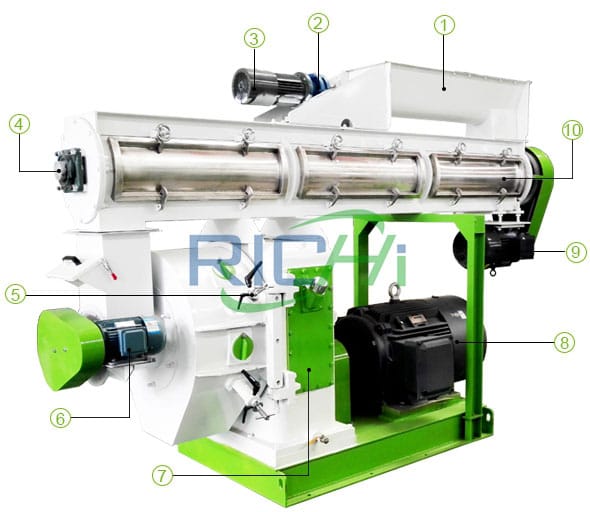

What Are The Parts of Pellet Machine?

Pellet machine is a key equipment for the production of pellets, which composed of multiple components. It is mainly composed of drive system, feeding system, pelletizing system, etc. The following figure is for reference.

Cattle/Sheep Feed Pellet Machine
1. Feeder
2. Gear reducer
3. Frequency Conversion Motor
4. SKF Bearing
5. Cutter Assembly
6. Forced Feeder Motor
7. Gearbox
8. SIEMENS Motor
9. Conditioner Motor
10. Stainless Steel Conditioner

Detailed Instructions of Pellet Machine

RICHI always believes that good products are one of the important indicators of corporate survival. We use high-standard materials in the production process and cooperate with internationally renowned brands to ensure that we can bring high-quality equipment to customers. The following is a detailed display of RICHI pellet machine.

  • Frequency Control Feeder with Anti-caking device

  • Stainless steel conditioner, 304 stainless steel, used for feed ripening, sterilization, improve water resistance and output

  • 304 Stainless steel paddles, precise Angledesign, reasonable blade layout, corrosion resistance

  • Imported gear box, high processing accuracy, high transmission efficiency, low energy consumption

  • Siemens Motors

  • 304 stainless steel ring die, corrosion resistance, Full automatic CNC ring die drilling machine and vacuum heat treatment technology

  • Press Roller Section - Made of 40CrMnTi, the structure of the eccentric shaft can better adjust the distance between the ring die and press roller

Equipment In RICHI Workshop

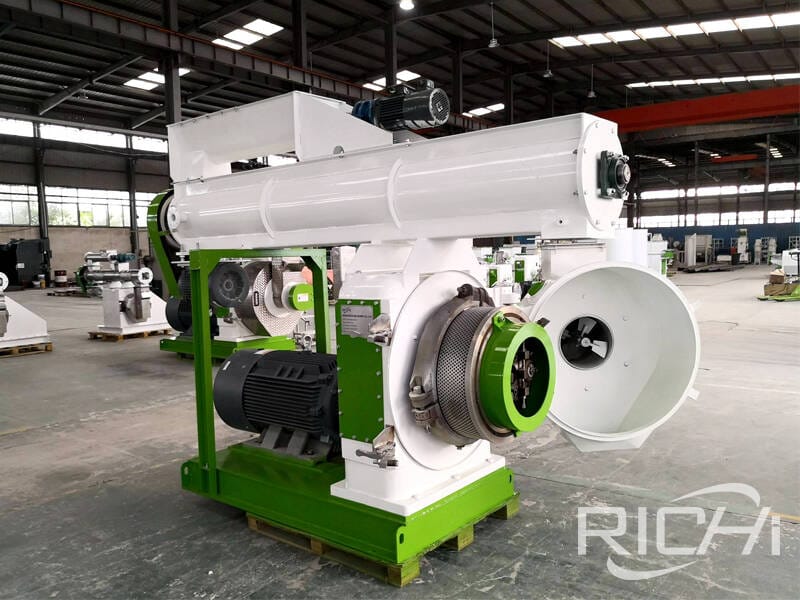

Cattle Feed Pellet Machine
Cattle Feed Pellet Machine

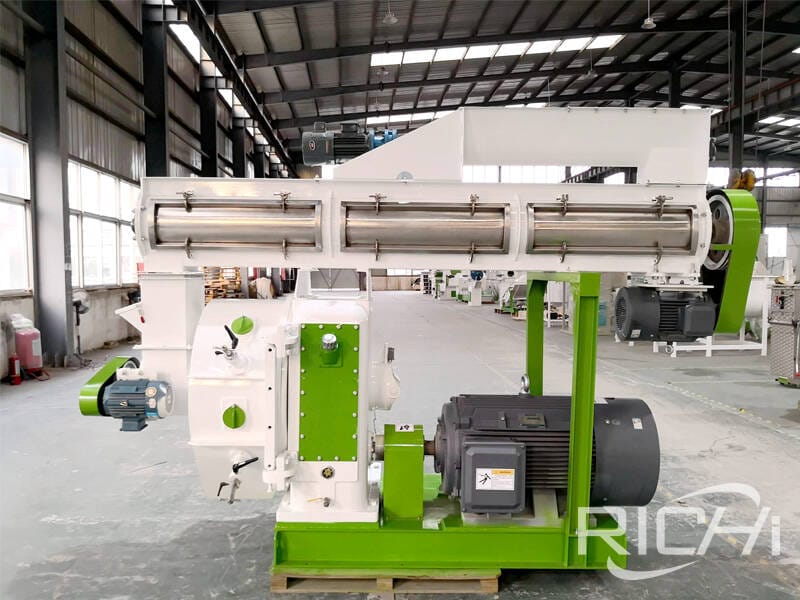

Sheep Feed Pellet Machine
Sheep Feed Pellet Machine

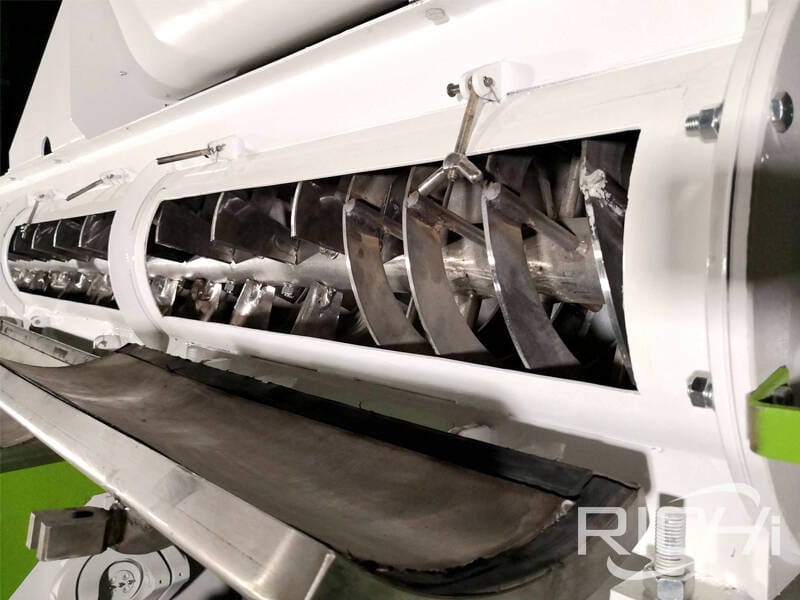

Conditioner
Conditioner

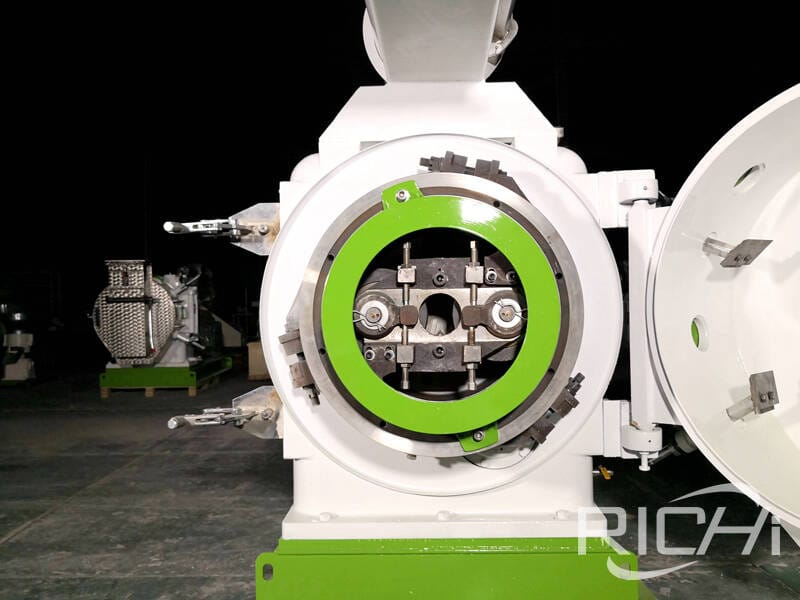

Pelletizing Chamber
Pelletizing Chamber

Application

Our products are usually used in conjunction with other equipment in the production line and have a wide range of applications. The following are common pellet production lines for reference only. If you have different requirements, please contact us for customization.

×
×
