Sinking Fish Feed Pellet Machine

Sinking Fish Feed Pellet Machine
Brand : RICHI
Capacity : 5-7T/H
Model : SZLH350
Main Power : 55KW

Guiding Price :
FOB 7000-100000 USD

Get Quote

Brief Introduction

The material is fully matured between the screw and the screw sleeve by high temperature and high pressure, and then extruded to form a floatable expanded pellet.

Get Quote
Sinking Fish Feed Pellet Machine

The advanced granulating structure adopts a soft knife fitting form to realize stepless speed change, which can cut the discharge arbitrarily into a product of the required length, and is not easy to produce burrs. The design is novel, unique, simple in structure, easy to install, easy to disassemble and easy to disassemble, and easy to operate. The screw sleeve and the screw are made of special wear-resistant high-temperature alloy steel material, which is heat-treated and has the advantages of wear resistance and long service life.

ModelCapacity(TPH)Main Motor Power(kw)Feeder Motor Power(kw)Conditioner Power(kw)Dia.of Ring Die(mm)Final Pellet(mm)
SZLH3505-7551.533502~12

Sinking Fish Feed Pellet Machine

ModelCapacity(TPH)Main Motor Power(kw)Feeder Motor Power(kw)Conditioner Power(kw)Dia.of Ring Die(mm)Final Pellet(mm)
SZLH2501-2220.751.52502~12
SZLH3203-4371.52.23202~12
SZLH3505-7551.533502~12
SZLH4208-121101.57.54202~12
SZLH50810-181602.2115082~12
SZLH55815-25180/2002.2115582~12
SZLH558D14-22160/180/2001.57.55582~18
SZLH67820-30220/2502.2116782~12
SZLH678D15-25200/220/2502.2116732~18
SZLH76825-40280/3152.2117682~12
SLZH85825-42280/3152.2158582~18

Application of Sinking Fish Feed Pellet Machine

This equipment uses corn, soybean (bean cake) animal wastes as raw materials, can be expanded to produce different particle shapes, suitable for different pet tastes such as dogs, cats, fish, birds, rabbits, shrimps, dogs, cats, donkeys, foxes, etc.

Get Quote Application of Sinking Fish Feed Pellet Machine

Accessories

RICHI provide various shapes of high-quality stainless steel mold, the production of expanded particles suitable for the customer, the motor apparatus Siemens.

Get Quote
siemens motor
SIEMENS
Motor
SKF bearing
SKF
Bearing
extruder discharging die
Extruder
Discharging die
extruder single-thread
Extruder
Single-thread

Equipment In RICHI Workshop

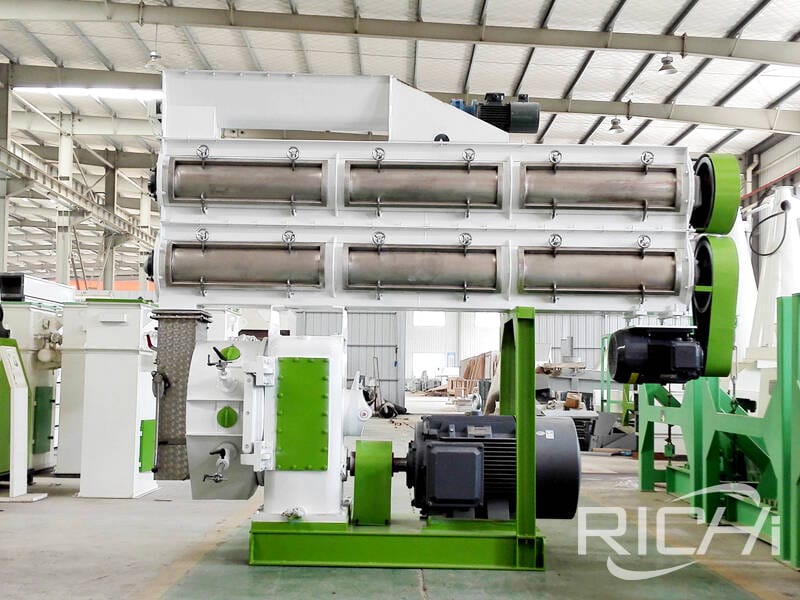

Sinking Fish Feed Pellet Machine
Sinking Fish Feed Pellet Machine

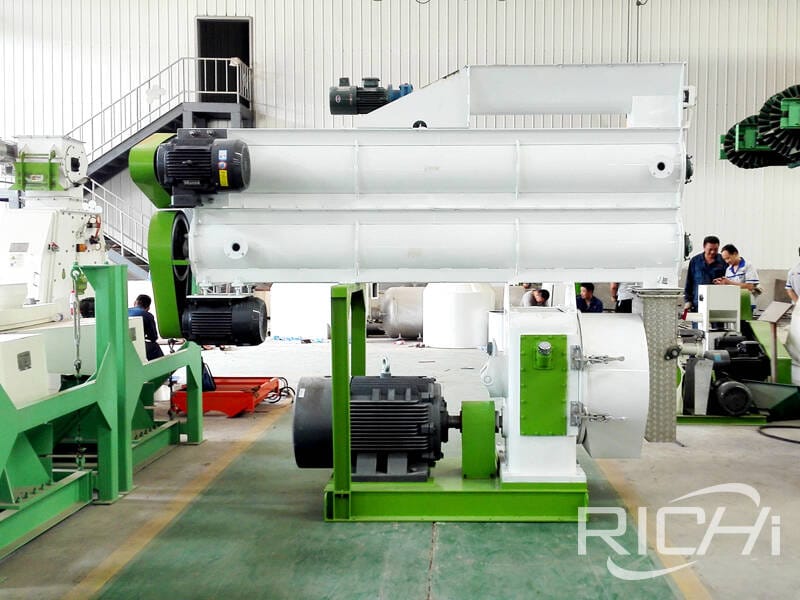

Sinking Fish Feed Pellet Mill
Sinking Fish Feed Pellet Mill

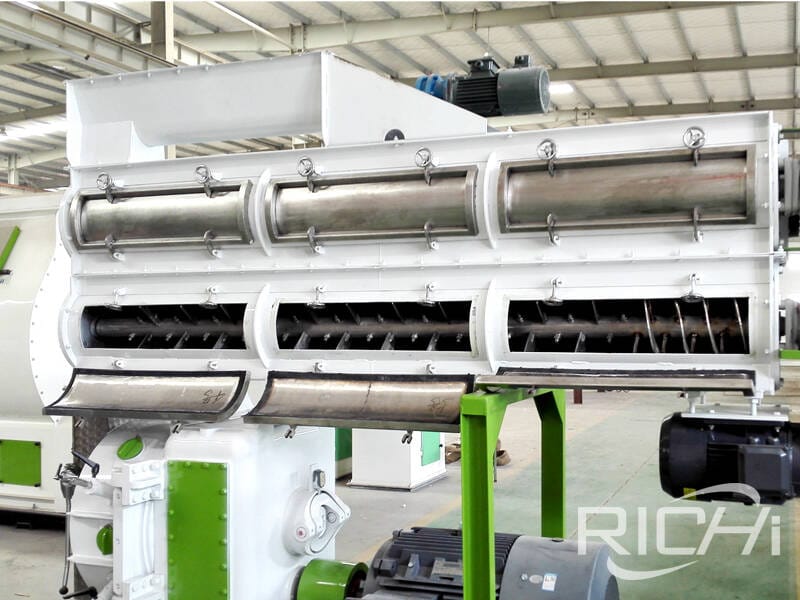

Conditioner
Conditioner

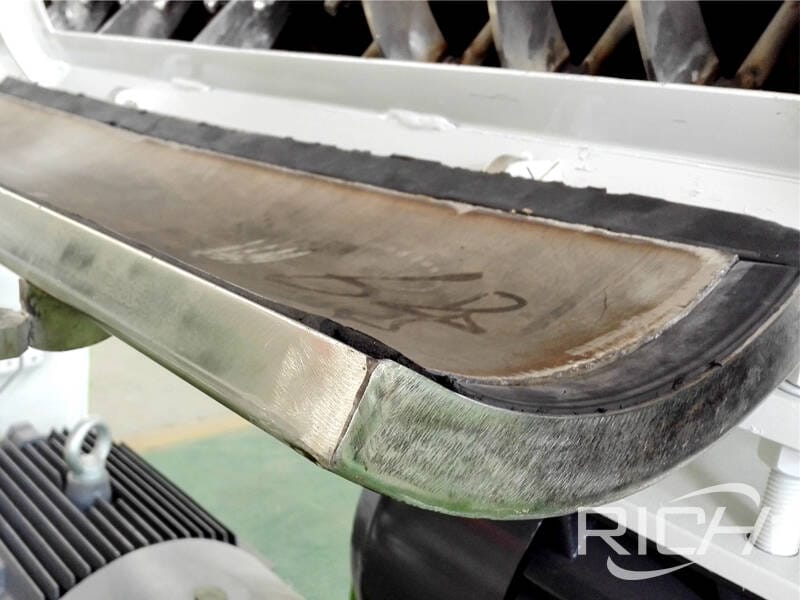

Conditioner Gate
Conditioner Gate

Application

Our products are usually used in conjunction with other equipment in the production line and have a wide range of applications. The following are common pellet production lines for reference only. If you have different requirements, please contact us for customization.
