Hot products poultry feed machine price for poultry feed mill

2021-04-09 Back to List

If you are looking for related products or have any other questions, please feel free to contact us.

Contact Us

 There are many types of poultry feed making machines used in poultry feed mill factories, but many customers did not know the name of the poultry feed equipment when they first came into contact with poultry feed industry, so when searching in Google, bing and other browsers, they will use the equipment used to process poultry feed. It is called a poultry feed machine.

Of course, since the poultry feed pelletizer machine is the most important poultry feed processing equipment, some customers will directly call the poultry feed pelletizer a poultry feed machine. This is of course correct, but many products and contents found by most customers on the Internet are inaccurate, and most poultry feed machine manufacturers have not clearly explained these contents to customers. As a professional poultry feed machinery manufacturer from China, Richi Machinery will give you a detailed description of the most common poultry feed manufacturing machine and poultry feed production machine prices in poultry feed mill factories.

poultry feed making machine

Hot products poultry feed making machinery for poultry feed mill:

1.Poultry feed grinder machine for poultry feed mill

——Used in poultry feed mill crushing system

The poultry feed making raw materials are then sent to the crushing system of poultry feed mill plant. This system reduces the size of the particles as per the consumption size of animals. The raw material for poultry feed mill production is at first uneven in size and is mostly big that makes it unfindable to small animals such as chicks and ducklings. This is why the raw materials are first subjected to the crushing system that crushes the raw material into small bits which can then be turned into proper poultry feed pellets for chicken, broiler, layer, duck,goose, bird, etc. This helps poultry animals achieve greater nutrition hence making poultry animals more capable and healthy.

Model and parameters of the grinding machine for poultry feed:

Model

SFSP56*40a

poultry feed grinder

SFSP56*40b

poultry feed grinder

SFSP66*60a

poultry feed grinder

SFSP66*60b

poultry feed grinder

SFSP66*80a

poultry feed grinder

SFSP66*80b

poultry feed grinder

SFSP66*100

poultry feed grinder

SFSP138*30E

poultry feed grinder

SFSP138*40E

poultry feed grinder

Power 30kw 37kw 55kw 75kw 90kw 110kw 132kw 110/132kw 132/160kw
Capacity 3-5T/H 4-6T/H 5-8T/H 6-9T/H 8-10T/H 10-13T/H 12-16T/H 15-20T/H 18-25T/H
Speed 2980r/min 2980r/min 2980r/min 2980r/min 2980r/min 2980r/min 2980r/min 1440r/min 1440r/min
Poultry feed mill plant use poultry feed grinder machine price: 5300-35000 USD.

poultry feed grinder machine price

2.Poultry feed mixer machine for poultry animal feed mill plant

——Used in poultry feed mill mixing system

After crushing the poultry feedstocks in poultry feed hammer mill crushing equipment, they will be sent to the batching and mixing system. This system as the name suggests batches or segregates raw poultry fodder materials as per the requirement of the consumption size of the poultry animal. This process often comes after grinding and just before mixing of the raw materials with the poultry feed. This system consists of 3 basic parts such as Vertical Spout magnet that remove metallic ingredients from the particles, bucket elevator that removes heavy particles and the drum mixer for poultry feed, which is the most important of them all mix the particles properly together.

Model and parameters of the poultry chicken feed mixing machine for poultry feed making plant:

Model

SLHJ1A

poultry feed mixer

SLHJ1B

poultry feed mixer

SLHJ2A

poultry feed mixer

SLHJ2B

poultry feed mixer

SLHJ2L

poultry feed mixer

SLHJ3A

poultry feed mixer

SLHJ4L

poultry feed mixer

SLHJ4A

poultry feed mixer

SLHJ6A

poultry feed mixer

Material quality carbon steel Stainless steel carbon steel Stainless steel carbon steel carbon steel carbon steel carbon steel carbon steel
Power 11kw 11kw 22kw 22kw 22kw 30kw 30kw 37kw 55kw
Mixed weight 500kg/batch 500kg/batch 1000kg/batch 1000kg/batch 1000kg/batch 1500kg/batch 2000kg/batch 2000kg/batch 3000kg/batch
Poultry feed mixer machine price for poultry feed mill factory: 2800-36500 USD

poultry feed mixer machine price

3.Hot selling poultry feed pellet making machine for poultry feed mill

——Used in poultry feed mill pelleting system

I talked about poultry feed grinder and mixer above, and here is the most important poultry feed maker machine in the poultry feed plant——feed pellet making machine for poultry.

After Batching the soft feed is then sent for the final process which is called Pelletizing or poultry pellets making process. In poultry feed pellet mill machinery, the soft feed is turned into compact pellets that are easy to store and transport. These feed pellets are formed by forcing the soft pellets through metal holes and cutting them into small pieces as per the consumption of animals. This poultry feed pelleting process is very important as it's responsible for the proper nutrition of animals that eat them. This regulates a number of calories they get through the pellets. This is also helpful when there's a need to increase or decrease the diet.

Model and parameters of the poultry feed pellet maker machine for animal poultry chicken feed mill:

Model Capacity(TPH) Main Motor Power(kw) Feeder Motor Power(kw) Conditioner Power(kw) Dia.of Ring Die(mm) Final Pellet(mm)
SZLH250 poultry feed pellet machine 1-2 22 0.75 1.5 250 2~12
SZLH320 poultry feed pellet making machine 3-4 37 1.5 2.2 320 2~12
SZLH350 poultry feed pelletizer machine 5-7 55 1.5 3 350 2~12
SZLH420 poultry feed pelleting machine 8-12 110 1.5 7.5 420 2~12
SZLH508 poultry feed pellet processing machine 10-18 160 2.2 11 508 2~12
SZLH558 poultry feed pellet production machine 15-25 180/200 2.2 11 558 2~12
SZLH558D poultry feed pellet manufacturing machine 14-22 160/180/200 1.5 7.5 558 2~18
SZLH678 poultry feed pellet pressing machine 20-30 220/250 2.2 11 678 2~12
SZLH678D poultry feed pellet maker machine 15-25 200/220/250 2.2 11 673 2~18
SZLH768 poultry feed pellet mill machine 25-40 280/315 2.2 11 768 2~12
SLZH858 poultry feed pellet milling machine 25-42 280/315 2.2 15 858 2~18
Poultry feed pellet manufacturing machine price for poultry feed manufacturing plant: 7000-100000 USD.

poultry feed pellet making machine cost

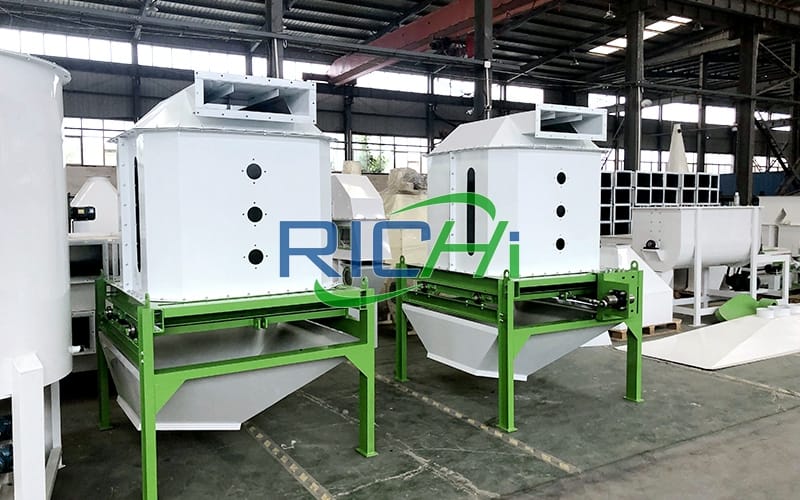

4.Poultry feed mill pellet cooler machine

——Used in poultry feed mill cooling system

As we have add steam to the poultry pellet mill, the pellet out from the pellet mill will be about 80℃,moisture 15%-16%,not suitable to pack,so we need to cool them.Fan,cyclone,airlock and necessary pipes form a system to provide airflow for the counter-flow cooler,pellet feed will be cooled in the cooler and discharged. After cooling,the temperature of the pellet will be about 2-3℃ above the room temperature and with 13% moisture more or less.

Model and parameters of poultry feed mill pellet cooler machine:

Model

SKLN11*11

poultry feed cooler

SKLN14*14

poultry feed cooler

SKLN17*17

poultry feed cooler

SKLN20*20

poultry feed cooler

SKLN24*24

poultry feed cooler

Capacity(t/h) 1.5-2 3-5 5-8 9-12 13-18
Power(kw) 0.75 0.75 1.1 2.05 2.05
Poultry feed pellet cooling machine price: 4000-20000 USD.

Poultry feed mill pellet cooler machine

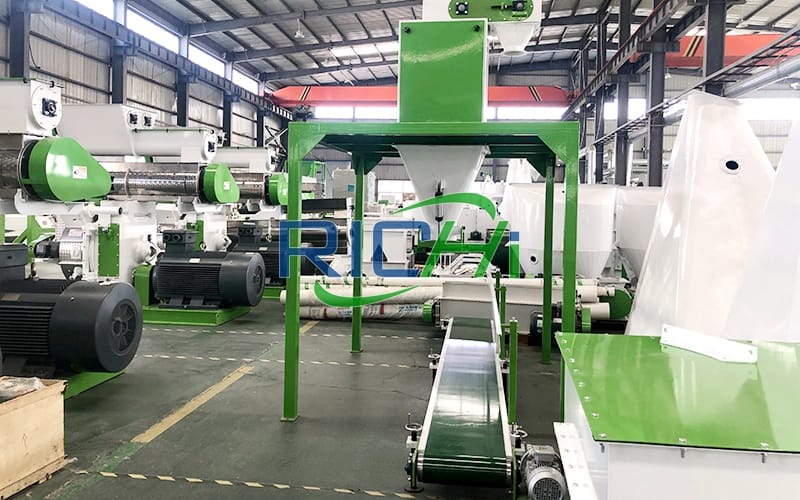

5.Poultry feed mill pellet bagging machine

——Used in poultry feed mill packing system

Usually we will add crumble under the cooler.If we are to make small pellet,directly making it from the pellet mill will reduce the capacity of the whole plant and cost more energy,we can first make bigger pellet and then send it to crumble to make it smaller.The final process of complete poultry feed plant is called the bagging or packing system and is self-explanatory. This process ensures that the feed pellets produced by the feed mill machines are properly stored for long term use.

Model and parameters of poultry feed mill automatic feed packing machine:

Model

DCS-C50/D

poultry feed bagging machine

DCS-A50/D

poultry feed bagging machine

DCS-B50/D

poultry feed bagging machine

DCS-B50/S

poultry feed bagging machine

DCS-A50/Y

poultry feed bagging machine

Application Pellet Powder Pellet/Powder Pellet/Powder Premix
Speed 6-8bags/min 6-8bags/min 6-8bags/min 10-12bags/min 6-8bags/min
Powder 1.1kw 3kw 3kw 5kw 3kw
Precision static±0.1% dynamic±0.2% static±0.1% dynamic±0.2% static±0.1% dynamic±0.2% static±0.1% dynamic±0.2% static±0.1% dynamic±0.2%
Temperature Range -10~40℃ -10~40℃ -10~40℃ -10~40℃ -10~40℃
Air Source 0.4-0.6MPa 1.5m3/h 0.4-0.6MPa 1.5m3/h 0.4-0.6MPa 1.5m3/h 0.4-0.6MPa 1.5m3/h 0.4-0.6MPa 1.5m3/h
Price of packing machine for Poultry feed mill: 5000-10000 USD.

Poultry feed mill pellet bagging machine cost

The above is the poultry feed equipment commonly used in poultry feed production factories, of course there are many other auxiliary equipment, such as Cylinder Pulse Dust Remover、Pellet Cleaning Sieve、Bucket Elevator、Vibrating Screen Classifier、Rotary Distributor、Drum Powder Cleaner、Intermittent Liquid Adding Machine, etc. RICHI is one large poultry animal feed mill manufacturer from China devoting in feed processing equipment , integrating the design, manufacturing, installation, mainly produce all sorts of feed pellet machines, crushing machine, mixing machine, lifting machine, cooling machine,etc and the complete animal feed  pellet production line machinery. About more poultry feed processing machines details, please Email: enquiry@cn-pellet.com, Whatsapp/Cel: +86 185 7410 3366.

accurately for you.poultry feed mill plantNote: When you make your business plan in poultry feed industry,you must first get the poultry feed making formula you need.This will also help me to design the technical production process of the
