Animal Feed Pellet Machine
- Brand : RICHI
- Capacity : 1-2T/H
- Main Power : 22KW
Application :
Animal Feed Industry
Brief Introduction
The material passing through the modulator enters the granulation chamber and rapidly extruded through the ring die and the press roller to form cylindrical pellets.
Conditioner are made of stainless steel, which is not easy to corrode, so as to avoid the influence of iron filings on feed. All motors are Siemens variable frequency motors, which can adjust speed and save electricity. Stable and classical gear driving，non-slipping，can really ensure the production output. Low noise，optimized ring die，maximum output. Hydraulic system for ring die change and roller adjustment（optional），quick ad precise operation；auto-lubrication system（optional）and die & roller lifting device，save labor；on-site touch screen control. Maximum size conditioner in feed pellet machine Industry to maximize the production capacity. A large number of components are manufactured by forging technology, which is strong and durable.
| Model | Capacity(TPH) | Main Motor Power(kw) | Feeder Motor Power(kw) | Conditioner Power(kw) | Dia.of Ring Die(mm) | Final Pellet(mm) |
| SZLH250 | 1-2 | 22 | 0.75 | 1.5 | 250 | 2~12 |
Application of Animal Feed Pellet Machine
It is based on crushed materials such as corn, soybean meal, and wheat, and widely used in grain and feed processing plants, livestock farms, poultry farms, or large, medium and small feed processing plants.
What Are The Parts of Pellet Machine?

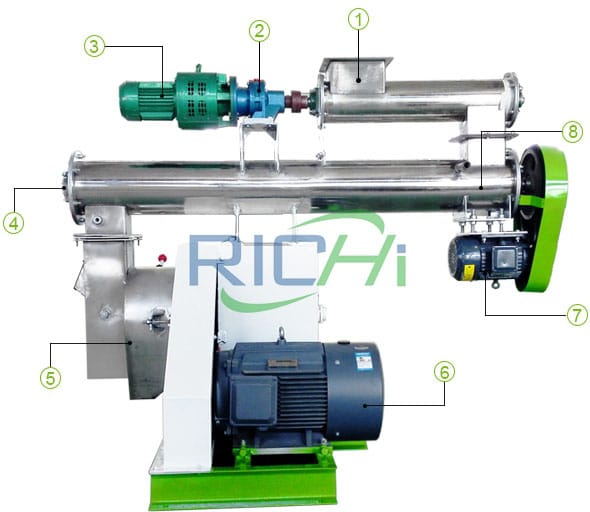

Pellet machine is a key equipment for the production of pellets, which composed of multiple components. It is mainly composed of drive system, feeding system, pelletizing system, etc. The following figure is for reference.
-
-
1. Stainless Stell Feeder
2. Gear reducer
3. Frequency Conversion Motor
4. SKF Bearing
5. Pelletizing Chamber
6. SIEMENS Motor
7. Conditioner Motor
8. Stainless Steel Conditioner
Detailed Instructions of Pellet Machine
RICHI always believes that good products are one of the important indicators of corporate survival. We use high-standard materials in the production process and cooperate with internationally renowned brands to ensure that we can bring high-quality equipment to customers. The following is a detailed display of RICHI pellet machine.
-
Frequency Control Feeder with Anti-caking device
-
Stainless steel conditioner, 304 stainless steel, used for feed ripening, sterilization, improve water resistance and output
-
304 Stainless steel paddles, precise Angledesign, reasonable blade layout, corrosion resistance
-
Imported gear box, high processing accuracy, high transmission efficiency, low energy consumption
-
Siemens Motors
-
304 stainless steel ring die, corrosion resistance, Full automatic CNC ring die drilling machine and vacuum heat treatment technology
-
Press Roller Section - Made of 40CrMnTi, the structure of the eccentric shaft can better adjust the distance between the ring die and press roller
Equipment In RICHI Workshop
- Animal Feed Pellet Machine
- Animal Feed Pellets
- Feed Pellet Making Machine
- Feed Pellet Mill
Application
Our products are usually used in conjunction with other equipment in the production line and have a wide range of applications. The following are common pellet production lines for reference only. If you have different requirements, please contact us for customization.
