Maize, also known as corn, is one of the most widely used energy ingredients in commercial cattle feed manufacturing. Its high starch content makes it a valuable component of many beef cattle and dairy cattle feed formulations. However, producing suitable cattle feed from maize requires more than simply grinding corn into powder.
Commercial feed manufacturers must consider maize quality, grinding particle size, ingredient formulation, mixing accuracy, pelletizing requirements, and finished feed storage. The appropriate processing method also depends on whether the final product is a cattle concentrate, a formulated compound feed, or another feed product.
RICHI Machinery supplies industrial feed processing equipment and customized cattle and ruminant feed production lines for commercial feed manufacturing projects.
This guide explains how to make cattle feed from maize, including raw material selection, corn processing methods, cattle feed pellet manufacturing, equipment requirements, formulation considerations, and maize storage management.
Can Maize Be Used to Make Cattle Feed?
Yes. Maize is an important energy ingredient in many cattle feed formulations because it contains a substantial amount of starch.
It can be used in feed products for beef cattle, dairy cattle, and other ruminants when incorporated into an appropriately formulated ration.
However, maize alone does not provide all the nutrients cattle require. A balanced cattle diet must consider protein, effective fiber, minerals, vitamins, and other nutritional requirements.
In commercial manufacturing, maize is commonly combined with suitable protein ingredients, bran, mineral supplements, and other approved feed materials.
The proportion of maize should be determined by a qualified animal nutritionist according to the intended cattle category, feeding system, and complete diet.
1. How to Make Cattle Feed from Maize
There are several ways to process maize for cattle feeding, including coarse grinding, rolling, steam flaking, and manufacturing formulated feed pellets.
For commercial cattle feed pellet production, the processing route generally involves preparing maize and other ingredients before mixing and pelletizing them.
Commercial Maize Cattle Feed Pellet Manufacturing Process
A typical production process is:
Raw Material Receiving → Cleaning → Grinding → Batching → Mixing → Steam Conditioning → Pelletizing → Cooling → Screening → Packaging
Depending on the intended feed product, the line may also include raw material storage, liquid ingredient dosing, additional fiber preparation, and automated finished feed handling.
Not every project requires every optional process. The production line should be designed according to the actual feed formulation and manufacturing requirements.
Step 1: Maize Receiving and Cleaning
Maize delivered to a commercial feed factory should be inspected before processing.
Incoming material checks may include moisture content, foreign matter, signs of insect activity, mold damage, and other relevant quality indicators.
Cleaning equipment removes suitable categories of impurities, while magnetic separators help remove ferrous metal contaminants.
Proper cleaning protects downstream processing equipment and supports raw material quality control.
Step 2: Corn Grinding
Maize is processed using a hammer mill or another suitable grain processing machine to obtain the required particle size.
Grinding specifications depend on the intended feed product, the characteristics of other ingredients, and the selected processing method.
For cattle feed, excessively fine grinding is not automatically desirable. Particle size must be evaluated in the context of the complete ration and its effects on processing performance and rumen function.
RICHI provides industrial feed hammer mill equipment for commercial feed manufacturing applications.
Step 3: Ingredient Batching
Ground maize is weighed together with other ingredients according to the approved feed formulation.
Additional materials may include protein meals, bran, suitable fiber ingredients, mineral supplements, and premixes.
Commercial feed plants can use manual, semi-automatic, or automated batching systems depending on production capacity and accuracy requirements.
Step 4: Feed Mixing
The measured ingredients enter a feed mixer to produce a consistent feed mixture.
Mixing uniformity is important for distributing major ingredients and appropriately prepared micro-ingredients throughout the batch.
Industrial animal feed mixing machines can be integrated into different cattle feed manufacturing configurations.
Step 5: Steam Conditioning and Pelletizing
For pelleted cattle feed, the mixed ingredients are transferred to a conditioning system.
Steam conditioning prepares the material for pellet formation by adjusting temperature and moisture under controlled operating conditions.
The conditioned mixture then enters a ring die cattle feed pellet mill, where rollers press the material through the die openings to form pellets.
Pellet mill performance depends on ingredient composition, grinding characteristics, conditioning conditions, ring die specifications, and target pellet diameter.
Step 6: Pellet Cooling
Freshly manufactured feed pellets leave the pellet mill at an elevated temperature.
A pellet cooler reduces their temperature before screening, packaging, or storage.
Cooling performance should be adjusted according to pellet characteristics and ambient conditions. The objective is to obtain a suitable finished pellet temperature and moisture condition rather than applying one fixed temperature requirement to every project.
Step 7: Screening and Packaging
After cooling, pellets pass through screening equipment to separate acceptable products from fines and unwanted particle sizes.
Qualified pellets may be packaged in bags or transferred to bulk storage and delivery systems.
Packaging equipment should match the required production capacity, bag size, weighing accuracy, and distribution method.
2. What Equipment Is Needed to Make Cattle Feed from Corn?
A complete commercial maize cattle feed production line normally consists of several interconnected processing systems.
| Equipment | Function | Selection Consideration |
|---|---|---|
| Raw Material Cleaning Machine | Removes impurities from maize and other ingredients | Ingredient characteristics and receiving capacity |
| Magnetic Separator | Removes ferrous metal contaminants | Equipment protection and process layout |
| Bucket Elevator and Conveyors | Transfers materials between processing stages | Required throughput and material flow |
| Hammer Mill | Grinds maize and suitable feed ingredients | Particle size, raw material properties and capacity |
| Batching System | Weighs ingredients according to the formula | Number of ingredients and weighing accuracy |
| Feed Mixer | Produces a consistent feed mixture | Batch size, mixing time and uniformity |
| Steam Conditioner | Prepares mixed feed for pelletizing | Formulation and process requirements |
| Ring Die Pellet Mill | Manufactures formulated cattle feed pellets | Hourly output, pellet diameter and formulation |
| Counterflow Cooler | Cools freshly manufactured pellets | Pellet throughput and cooling conditions |
| Pellet Screening Machine | Separates pellets from fines | Finished product specifications |
| Bagging System | Weighs and packages finished feed | Bag size and packaging capacity |
| Electrical Control System | Coordinates equipment operation | Automation and monitoring requirements |
Depending on the project, the equipment configuration may also include dust collection, raw material silos, liquid addition systems, fiber preparation equipment, and other auxiliary machinery.

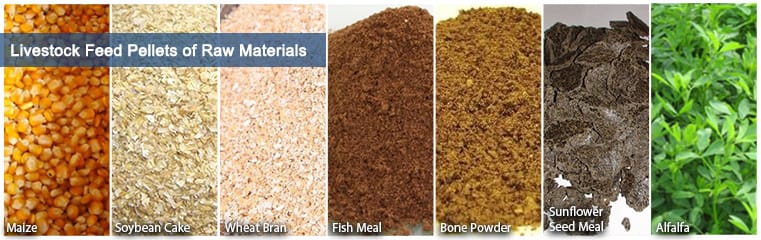

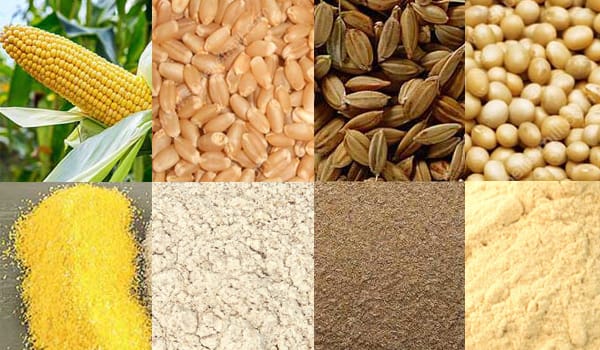

3. What Raw Materials Can Be Mixed with Maize for Cattle Feed?
Maize is primarily used as an energy ingredient. Other materials are added to meet the intended nutritional and manufacturing requirements.
Common ingredients in commercial cattle feed manufacturing may include:
| Ingredient Category | Examples | Role in Feed Manufacturing |
|---|---|---|
| Energy Ingredients | Maize, barley, sorghum, wheat | Provide dietary energy |
| Protein Ingredients | Soybean meal, sunflower meal, suitable cottonseed products | Contribute protein and other nutrients |
| Bran and By-Products | Wheat bran and approved grain processing by-products | Contribute nutrients and influence feed characteristics |
| Fiber Ingredients | Alfalfa meal, prepared forage materials and suitable processed straw | Provide fiber components where appropriate |
| Mineral Ingredients | Approved calcium, phosphorus, sodium and other mineral sources | Support formulation requirements |
| Premixes | Commercially formulated vitamin and mineral premixes | Supply specified micronutrients |
| Other Approved Ingredients | Suitable additives and liquid ingredients | Used according to formulation and regulatory requirements |
Ingredient selection must consider nutritional suitability, feed safety, local regulations, and the intended animal category.
Some ingredients require additional preparation or have restrictions on their use. A qualified nutritionist should approve the final formula.
4. Nutritional Characteristics of Maize for Cattle Feed
Maize belongs to the grass family, Poaceae, and is widely cultivated as a grain crop.
Its primary value in cattle feed comes from its starch content and energy contribution.
Maize Is a Concentrated Energy Source
Maize grain contains substantial amounts of starch, making it useful in energy-dense feed formulations.
However, the nutritional contribution of maize depends on its composition, processing method, and inclusion rate in the total ration.
Maize Is Not a Complete Protein Source
Maize generally contains less protein than commonly used protein meals such as soybean meal.
For this reason, cattle feed formulations may include additional protein ingredients when required.
Nutritional Composition Can Vary
The nutrient composition of maize varies according to variety, growing conditions, harvest quality, storage, and processing.
Commercial feed manufacturers should use appropriate ingredient testing and formulation data rather than assuming that every maize shipment has identical nutritional values.
Grain Quality Affects Feed Quality
Broken kernels, excessive moisture, mold damage, and contamination can affect the suitability of maize for feed manufacturing.
Quality control should begin when the grain enters the factory.
5. Which Maize Processing Method Is Suitable for Cattle Feed?
Different maize processing methods can change the physical characteristics of the grain and influence its use in cattle diets.
Common processing methods include dry grinding, rolling, steam flaking, and pelletizing as part of a formulated feed mixture.
| Processing Method | Finished Material | Typical Equipment |
|---|---|---|
| Dry Grinding | Ground or cracked maize | Hammer mill or suitable grain grinder |
| Dry Rolling | Flattened or cracked grain | Grain roller mill |
| Steam Flaking | Steam-treated, flattened maize | Steam conditioning and flaking equipment |
| Compound Feed Pelletizing | Pellets made from maize and other formulated ingredients | Mixing, conditioning and ring die pelletizing systems |
These processing methods are not interchangeable in every feeding system.
The best method depends on the cattle category, diet composition, feeding management, processing economics, and available equipment.
Importantly, a ring die pellet mill used to manufacture compound cattle feed pellets is not the same machine as a steam flaking system used to process maize grain.
6. What Particle Size Should Maize Be Ground to for Cattle Feed?
There is no single ideal maize grinding particle size for every cattle feed product.
Particle size requirements depend on the feed formulation, the intended cattle category, the feeding system, and whether the material will be used as ground grain or manufactured into compound feed pellets.
When selecting grinding equipment, commercial feed manufacturers should consider:
- The type and quality of maize.
- The intended finished feed product.
- The required grinding throughput.
- The selected hammer mill screen and operating conditions.
- The interaction between particle size and pelletizing performance.
- Dust generation and handling characteristics.
- The nutritional requirements of the complete cattle ration.
Very fine grinding can increase processing energy demand and change the behavior of starch in the ration. Coarser processing may be appropriate for certain cattle feeding systems.
Grinding specifications should therefore be confirmed with both the feed formulation specialist and the equipment supplier.
7. Can Maize Be Made into Cattle Feed Pellets?
Yes. Maize can be an important ingredient in manufactured cattle feed pellets.
However, commercial cattle feed pellets are normally produced from a formulated mixture rather than maize alone.
The mixed ingredients are conditioned and compressed through a ring die pellet mill to produce pellets with the required physical characteristics.
Typical Pellet Diameter
Some commercial cattle feed pellet products use diameters within approximately 4-8 mm, but this is not a universal requirement.
The appropriate pellet diameter depends on the product specifications, cattle category, and feeding system.
Pellet Quality
Pellet durability, fines content, moisture, and other physical characteristics should be monitored according to the finished product requirements.
Feed Formulation
Pelletizing does not automatically make a feed nutritionally complete.
The nutritional value of the finished pellets depends on the approved formulation and ingredient quality.
Equipment Selection
Ring die specifications, conditioning requirements, and pellet mill capacity should be matched to the actual formula and target output.
8. How to Develop a Maize-Based Cattle Feed Formula
A maize-based cattle feed formula must be designed around the nutritional requirements of the intended animals and the composition of the complete diet.
For commercial feed manufacturing, the formulation process normally includes the following steps.
Identify the Feed Product
Determine whether the factory will produce beef cattle concentrate, dairy cattle concentrate, compound feed, or another specified cattle feed product.
Evaluate Available Ingredients
Identify the maize, protein ingredients, fiber materials, minerals, and other approved materials available to the factory.
Analyze Nutritional Requirements
A qualified nutritionist should determine the relevant nutritional specifications for the intended cattle category and feeding system.
Develop and Verify the Formula
The formula should be evaluated for nutrient balance, ingredient suitability, safety, cost, and manufacturing feasibility.
Confirm Manufacturing Compatibility
The equipment supplier should review the physical characteristics of the ingredients and the intended pellet specifications.
High-fiber formulations, liquid ingredient inclusion, and unusual raw materials may require additional processing equipment or adjustments.
Conduct Production and Quality Checks
During commissioning, the feed manufacturer should verify batching accuracy, mixing performance, pellet quality, and other relevant production parameters.
Formulation note: The percentage formulas presented in some historical cattle feed articles are not universally suitable for all cattle. Premix inclusion rates, mineral requirements, and the use of particular oilseed meals depend on the specific product and animal requirements. Commercial formulas should be approved by a qualified animal nutritionist before use.
9. How to Store Maize for Cattle Feed Production
Proper maize storage is important for commercial feed manufacturing because raw material deterioration can affect product quality, production continuity, and feed safety.
Control Moisture
Moisture is one of the major factors affecting grain storage stability.
Storage targets should be determined according to the grain condition, intended storage duration, temperature, storage system, and local conditions.
Maize with excessive moisture may require appropriate drying or other approved handling before long-term storage.
Monitor Grain Temperature
Temperature monitoring can help identify developing storage problems.
Stored grain should be inspected according to an established storage management plan.
Prevent Mold and Mycotoxin Contamination
Maize can be affected by mold and mycotoxins, including aflatoxins and fumonisins under certain conditions.
Feed manufacturers should establish suitable sampling, testing, acceptance, and rejection procedures based on applicable feed safety requirements.
Grain suspected of unsafe contamination should not be made acceptable merely by grinding or pelletizing it.
Control Storage Pests
Commercial grain storage systems should include appropriate pest monitoring and management.
Any pest control treatment must be suitable for feed ingredients and comply with local regulations.
Maintain Storage Hygiene
Silos, bins, conveying equipment, and surrounding areas should be maintained to reduce grain accumulation, contamination, and pest activity.
Use Appropriate Stock Rotation
Raw material traceability and stock rotation help reduce the risk of prolonged storage and support consistent feed production.
10. Should Maize Be Ground Before Storage or Before Feed Production?
Whole maize grain and ground maize have different storage characteristics.
Grinding increases exposed surface area and changes the material's handling and storage behavior.
Ground maize can be more susceptible to quality deterioration under unsuitable storage conditions, especially where temperature, moisture, and storage duration are not adequately controlled.
For many commercial feed mills, grinding maize relatively close to the time of feed production can reduce the need for extended storage of ground material.
However, the most suitable arrangement depends on the factory layout, grinding schedule, production capacity, and storage system.
Factories that use intermediate ground-material bins should provide appropriate capacity, ventilation arrangements where required, cleaning access, and inventory control.
11. Maize Feed Quality Control Checklist
Commercial feed manufacturers should establish raw material and finished product quality control procedures.
| Production Stage | Recommended Quality Check |
|---|---|
| Maize Receiving | Ingredient identity, moisture, foreign matter and contamination risk |
| Raw Material Storage | Temperature, moisture condition, pests and stock rotation |
| Grinding | Particle size and grinding consistency |
| Batching | Ingredient identity and weighing accuracy |
| Mixing | Mixing uniformity and batch traceability |
| Conditioning | Relevant temperature, moisture and process settings |
| Pelletizing | Output stability and pellet formation |
| Cooling | Finished pellet temperature and moisture condition |
| Screening | Pellet size distribution and fines content |
| Packaging | Product identification, bag weight and traceability |
The exact testing program should reflect the feed product, customer requirements, quality management system, and applicable regulations.
12. How to Choose a Maize Cattle Feed Production Line
When purchasing commercial feed manufacturing equipment, investors should first define the intended finished product and required production capacity.
A grain grinding system, a cattle concentrate production line, and a complete pellet feed manufacturing plant have different equipment requirements.
Confirm the Required Capacity
Determine the planned hourly output and operating schedule.
RICHI Machinery provides customized industrial cattle feed production line solutions for different commercial capacities.
Specify the Feed Product

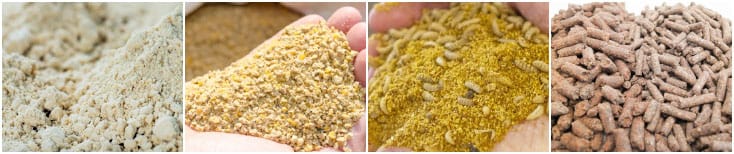

Confirm whether the factory will manufacture ground maize, cattle feed mash, concentrate pellets, or formulated compound feed pellets.
Provide Raw Material Information
List the ingredients, their physical characteristics, and any materials requiring additional preparation.
Define the Automation Level
Choose an appropriate batching, conveying, control, and packaging configuration according to the production requirements.
Confirm Factory Conditions
Industrial feed processing equipment normally requires three-phase electricity.
Workshop dimensions, raw material storage, equipment access, and utility requirements should be confirmed during engineering design.
Evaluate the Complete Investment
The cost of a cattle feed production line depends on capacity, equipment scope, raw materials, automation, packaging, and factory conditions.
Project budgeting should distinguish equipment costs from freight, installation, construction, utilities, and working capital.
Frequently Asked Questions About Making Cattle Feed from Maize
Can Cattle Be Fed Only Maize?
Maize alone does not provide a balanced cattle diet. It should be used as part of an appropriately formulated ration that meets the animal's nutritional requirements.
Is Ground Maize Better Than Whole Maize for Cattle?
The appropriate grain processing method depends on the cattle category, ration, feeding system, and processing economics. Grinding, rolling, and other methods have different characteristics, and no single method is best for every situation.
Can Maize Be Used to Manufacture Cattle Feed Pellets?
Yes. Maize can be combined with other suitable ingredients and processed through a commercial ring die feed pellet production line.
What Pellet Diameter Is Suitable for Cattle Feed?
Some commercial cattle feed products use pellet diameters around 4-8 mm. The final specification should be selected according to the intended feed product and animal requirements.
Does a Maize Cattle Feed Plant Need a Hammer Mill?
A hammer mill is commonly used in commercial feed manufacturing where maize and other ingredients must be ground before mixing and pelletizing. Other grain processing methods may require different equipment.
Can the Same Production Line Process Maize and Other Grains?
Yes. A properly configured feed manufacturing line can process different suitable grain ingredients. Equipment settings and feed formulations may need adjustment.
Can Maize Silage Be Processed in a Conventional Cattle Feed Pellet Mill?
Fresh or high-moisture maize silage is not normally suitable for direct processing through a conventional dry-feed ring die pellet mill. The intended product, moisture content, and required preprocessing must be evaluated before equipment selection.
How Much Does a Maize Cattle Feed Production Line Cost?
The price depends on the required capacity, equipment configuration, automation, raw material preparation, and project scope. A customized quotation is necessary to establish an accurate equipment price.
Related Cattle Feed Manufacturing Guides
How to make cattle feed pellet by cow feed pellet production line?
1-2 Ton per hour small size cattle feed pellet making plant machinery price
Cattle Feed Pellet Machine for Farms: Equipment, Cost & Production Line
5 T/H Cattle Feed Pellet Machine & Production Line Guide
How To Start Your High Return Low Cost Complete Cattle Feed Production Plant Business?
1-3 T/H Cattle Feed Pellet Machine & Production Line
1-100 T/H Cattle Feed Mill Plant: Process, Equipment & Cost
5 T/H Cattle Feed Mill Plant Layout, Setup & Investment Cost
1-4 T/H Poultry & Cattle Feed Production Line | RICHI D&M
Poultry Feed Mill Operation Guide: Startup & Maintenance
1-4 T/H Beef Cattle Feed Pellet Plant: Equipment Configuration & Cost
Get a Customized Maize Cattle Feed Production Line Quotation
Are you planning to manufacture cattle feed using maize and other agricultural raw materials?
RICHI Machinery supplies industrial grinding, mixing, pelletizing, cooling, screening, and packaging equipment for commercial cattle feed manufacturing projects.
Our sales and engineering team can prepare a suitable production process, equipment configuration, factory layout, and commercial quotation based on your requirements.
To receive a customized proposal, please provide:
- What type of cattle feed do you want to manufacture?
- Will maize be the main raw material?
- What other ingredients will you use?
- What are the raw material sizes and moisture conditions?
- Do you need ground maize, mash feed, or feed pellets?
- How many tons per hour do you plan to produce?
- What pellet diameter is required, if applicable?
- Do you need a standalone machine or a complete production line?
- Which country will the factory be located in?
- What is the local voltage and frequency?
- Do you have an existing workshop?
- What is your expected investment budget?
Based on this information, RICHI Machinery can recommend suitable industrial equipment and provide a project-specific technical and commercial proposal.
RICHI Machinery – Industrial Cattle Feed Processing Equipment and Complete Feed Production Lines
