China manufacturer poultry feed mill plant use 1-20t/h poultry feed pelleting equipments for sale

2020-12-24 Back to List

If you are looking for related products or have any other questions, please feel free to contact us.

Contact Us

Richi Machinery,a professional poultry animal feed plant pellet mill manufacturer in China.Today we will talk about why choose poultry feed pelletizer machine and how to purchase and use it.

Poultry feed mill plant Price

1.Poultry Feed Processing Equipments Accelerate The Development Of Poultry Feed Industry

The poultry feed industry is an important industry that supports the farming of livestock and poultry, and it is also an industry that measures the modernization level of animal husbandry. At present, poultry and animals are basically fed with feed pellets, and feed processing equipment has specialized 1-20t/h animal feed pelleting equipment for 1-100t/h poultry feed pellet manufacturing plant.

(1)Improve the level of poultry feed produciton line equipment. With the specialization, large-scale, automation, intelligence, high efficiency and low consumption, environmental protection, safety and health, it promotes the upgrading of feed processing equipment.

(2)Improve the reliability, service life, intelligence, and self-cleaning level of key feed making equipment, such as raw material receiving, crushing, quenching and tempering, pelletization, cooling, drying, screening, packaging, stacking, and so on.

(3)Organically combine feed processing technology with animal nutrition, and according to the requirements of subdivided species, subdivision stages, and fine breeding, establish a suitable poultry feed processing technology and quality safety index system. Promoting the subdivision processing of feed products.

2.The reasons for choosing 1-20tph ce poultry animal feed pellet mill to make poultry feed pellets

(1)Poultry feeds processed with poultry feed pellet production line machinery are very comprehensive in their nutritional formula, which can prevent animals from picky eating. Because the feed is basically granular, it can maintain uniformity in each poultry feed production process, which can reduce unnecessary losses and save transportation costs.

(2)During poultry feed pellet line manufacturing process, a series of reactions occur in the feed due to factors such as moisture, temperature, and pressure, which help digestion. In addition, the fluidity of poultry pellet feed is good, and it rarely causes sticking, which is one of the reasons that attract customers.

(3)The feed processed by 1-20 ton per hour poultry feed pellet making machine is not as easy to be classified as powder, so it is not easy to dust, and the environmental pollution is relatively reduced. Which is in line with the concept of environmentally friendly production. On the whole, 1-20tph China supplier poultry feed pelleting machine is an ideal poultry feed equipment and should be used well.

Hope this article can help you know more about "High quality CE Pellet Machine For Poultry Animal Feed", if you want to build your own customized 1-100t/h poultry feed pelleting production line, please contact RICHI. Welcome to click our website and inquiry about the wholesale poultry feed making machine details.

poultry chicken fish animal cattle cow feed machine

3.How to purchase and use of 1-20t/h poultry pellet feed processing machines for chicken duck goose bird feed making?

The 1-20t/h poultry feed pelletizer equipment for pressing powder feed into pellet feed, which can also produce pellets for fish, shrimp, chicken, duck, goose, rabbit, pigeon and other aquatic products and livestock and poultry breeding. From its structural form, the most commonly used is 1-20t/h ce ring die poultry chicken pellet feed maker machine .

1-20TPH China supplier ring die animal poultry rabbit aqua fish shrimp feed pellet mill for poultry feed has the characteristics of reasonable structure and high production efficiency of the processed pellets, and the manufacturing process of the chicken poultry feed pelletizing machine isn't complicated and the finished product is finished. The surface hardness is higher, and the ring die poultry granule feed pellet mill machine has a affordable price.

Users should pay attention to the following points when purchasing and using pelletizer of ring die to making poultry feed:

(1)chassis fastening test. Check the fastening of the body and the chassis, the motor and the chassis.For the ring die pellet mill for poultry, the main inspection template and the fastening of the pressure roller bracket and the pressure roller are checked.

(2)Screw auger check. Turn by hand to check for any foreign objects in the auger. The screw auger shaft should rotate smoothly without any noise. Open the powder into the observation port of the screw auger, check whether it is convenient to switch, and repeatedly switch the ring mold to suppress the door tightly.

(3)Warehouse door sealing inspection. In particular, it is necessary to check the sealing and locking reliability of the joint between the crushing bin and the powder feeding screw auger to achieve accurate positioning, firm locking and no leakage of powder.

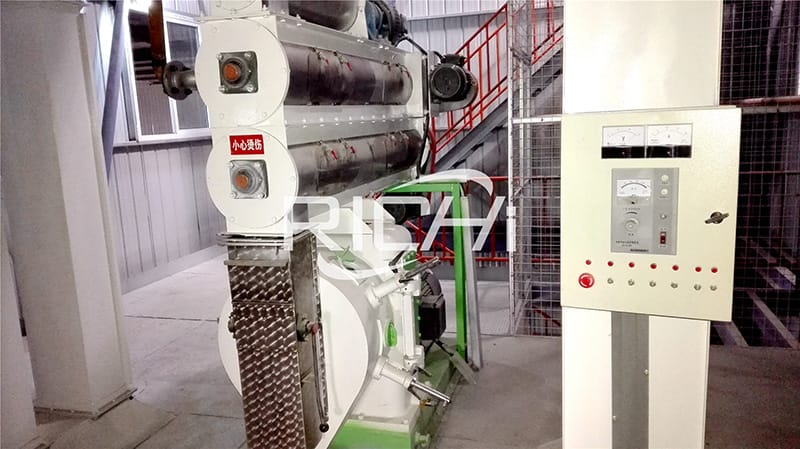

Animal Pellet Powder Feed pellet Machine for Poultry Chicken

(4)Security check.

1-20TPH ring die poultry pellet feed milling machine damages the machine to prevent foreign matter from entering the pelletizer machine. The main shaft is provided with a safety coupling. When foreign matter enters the ring mold, the convex edge on the coupling will immediately trigger the stroke switch. For the fork, the safety bolt and the main shaft interlocking safety bolt are broken, so that the resistance of the main shaft is sharply increased. Therefore, it is necessary to carefully check whether the convex side of the main shaft safety coupling can effectively touch the fork of the travel switch when purchasing. The power to the spindle motor is cut off to protect the pellet feeder from damage.

The pulleys, drive shafts, flanges, etc. of the poultry feed pellet press machine must be equipped with a protective cover to effectively protect the safety of the operator. Some machines in the press warehouse to prevent accidental injury to the operator of the ring die of the poultry pellet mill, the door must be equipped with a security magnet, only when the door is closed, the fork of the travel switch in series with the spindle motor power supply The power supply to the spindle motor of the safety coupling can be switched on. The physical inspection can be used to check whether the function of the powder feeding inlet of the pellet feeding machine is reliable, and the inspection method is the same.

(5)Test run. After the no-load test is normal, the 1-20t/h ring die poultry food pellet mill can perform load test operation under the powder. Add the appropriate amount of powder into the auger and test the vehicle to observe the current reading of the spindle motor under medium load.

(6)Finished product inspection. The finished poultry pellet feed should have a smooth surface, a neat section, and no cracks; the pass rate cannot be lower than 95%. The specifications of the finished product should be uniform and uniform, and it is difficult to crush it by hand.

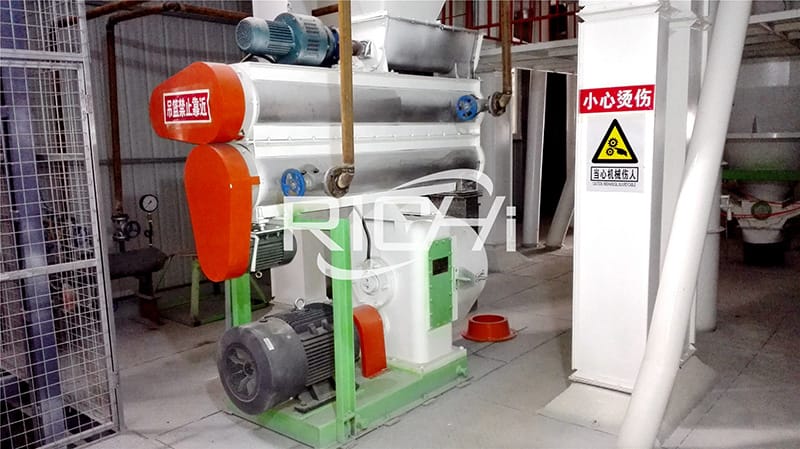

Fully Automatic Animal Feed Machine Production line for Making poultry Animal Food

4.Cost of 1-20t/h pellet machine for making poultry chicken feeds

How much does the pelletzer machine of making poultry chicken feed cost?I will tell you next.

(1)CE 1-2 ton per hour pelleting machine for poultry feed

Capacity: 1-2Ton/Hour

With on-site electric control cabinet

Siemens motor, SKF bearing

Feature: Feeder, conditioner, ring die, door are made by stainless steel

Size of Conditioner: Length 1800mm* Diameter 220mm

Rang of Final pellet: 2-8mm

Ring die inter diameter: 250mm

1-2TPH China supplier poultry animal pellet mill price: 7000USD-10000USD

(2)CE 3-4 ton per hour poultry feed pellet manufacturing machine for sale

Capacity: 3-4Ton/Hour

With on-site electric control cabinet

Siemens motor, SKF bearing

Feature: Feeder, conditioner, ring die, door are made by stainless steel.

Size of Conditioner: Length 2000mm* Diameter 273mm

Rang of Final pellet: 2.0-10m

Ring die inter diameter: 320mm

3-4TPH Poultry animal feed processing pellet equipment price:16000USD-20000USD.

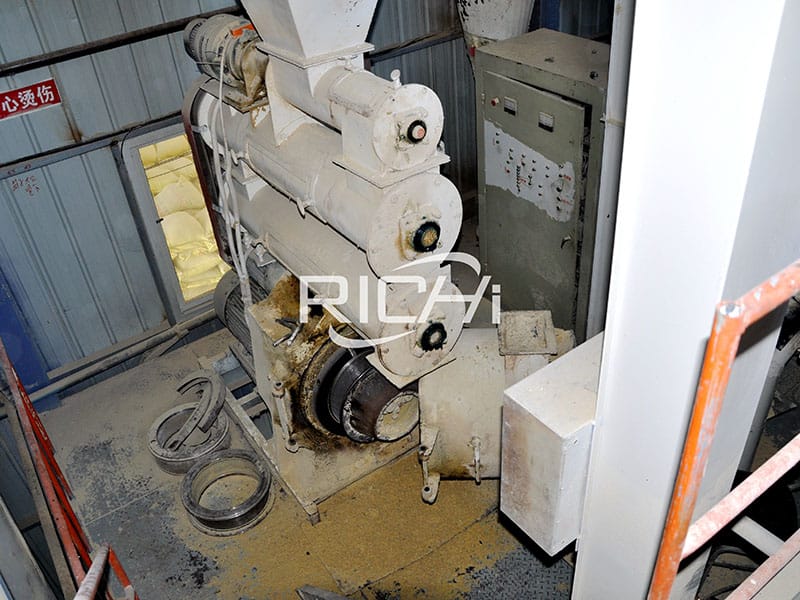

broiler poultry feed pellet mill machine used in factory

(3)CE certificate 5-7 ton per hour boiler chicken poultry feed pellet making machinery for sale

Capacity: 5-7Ton/Hour

With on-site electric control cabinet, oilding machine

Siemens motor, SKF bearing

Feature: Feeder, conditioner, ring die, door are made by stainless steel.

Size of Conditioner: Length 2000mm* Diameter 350mm

Rang of Final pellet: 1.5-12mm

Ring die inter diameter: 350mm

5-7T/H animal pellet mills for poultry feed production price:22000USD-30000USD.

(4)CE ISO approved 8-12 ton per hour ring die poultry feed pelleting machine for sale

Capacity: 8-12Ton/Hour

With on-site electric control cabinet, oiling machine

Siemens motor, SKF bearing

Feature: Feeder, conditioner, ring die, door are made by stainless steel.

Size of Conditioner: Length 3000mm* Diameter 380mm

Rang of Final pellet: 1.0-12mm

Ring die inter diameter: 420mm

8-12TPH chicken poultry feed mill equipment of pelletization price:31000USD-40000USD.

(5)CE good performance 15-20 ton per h our poultry chicken feed pellet mill machine for sale

Capacity: 15-20Ton/Hour

With on-site electric control cabinet, oilding machine

Siemens motor, SKF bearing

Feature: Feeder, conditioner, ring die, door are made by stainless steel.

Size of Conditioner: Length 3000mm* Diameter 380mm

Rang of Final pellet: 1.0-12mm

Ring die inter diameter: 520mm

China factory supply 15-20T/H poultry chicken pellet feed processing euqipments price:44000USD-50000USD.
