Hot selling biomass energy sawdust ring die pellet making machine for sale

2020-05-15 Back to List

If you are looking for related products or have any other questions, please feel free to contact us.

Contact Us

Hot selling biomass energy sawdust ring die pellet making machine are pellet processing machines. A good quality wood sawdust pellet mill is one of the factors that influence the pellet quality directly. The parameters of a biomass pellet mill are inherent to the pellet making machine itself, such as, ring die dimensions, die speed and the gap between the roller and ring die.

Hot selling biomass energy sawdust ring die pellet making machine

The pellet ring dies impact the durability of the pellets. The pellet ring dies are annular matrix of perforations, characterized by the length and the diameter ratios. The die length means the depth of the ring die and the diameter refers to the diameter of the perforations or the die holes. Generally, pellet durability increases with depth/diameter ratio due to increased shear forces resulting from increased friction between feed stock and die. However, the ratio between the ring die hole depth to the diameter is too large, the feed stock will block the ring die and eventually damage the mill. So it is means the soft wood pellets production needs thicker dies with deeper ring die holes than the hardwood pellet production does.

Variable die speeds are used for the production of pellets with different sizes. Die speed of a pellet mill refers to the tangential velocity of the rollers in the process of pelleting. Generally, the high die speeds around 10 m/s are used to process small pellets with the diameter from 3mm to 6 mm whereas the lower die speeds are applied to mold larger pellets with the diameter from 6mm to 7 mm. What's more, the low die speeds , around 4 to 5 m/s , are also used to process low densities materials to produce high density pellets by expelling the air out of the biomass materials.

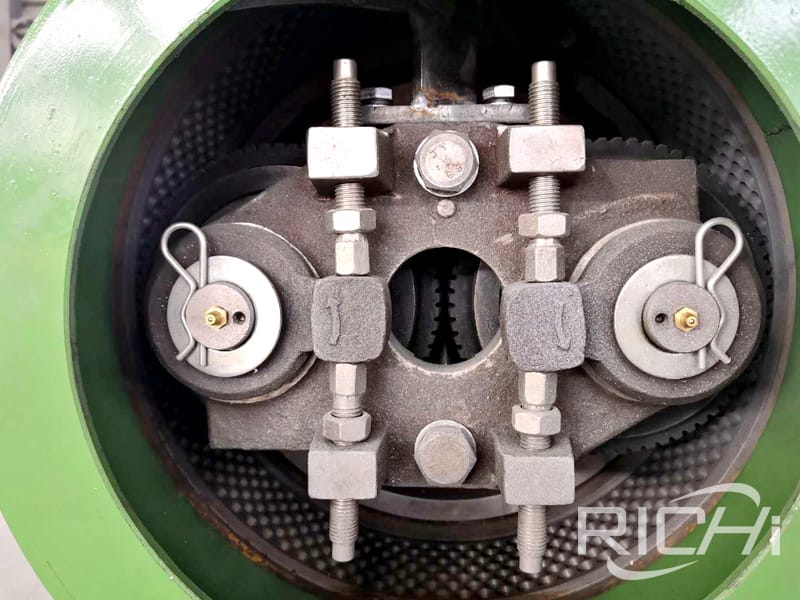

The gab between the rollers and die influences the hardness and durability of the pellets. The roller-die gap of a pellet mill is the space between the annular matrix and the rollers. Generally, the narrower the gap is, the higher the pellets hardness and durability will be. However, the the rollers can not touch the surface of the die directly or both of the rollers and die will be broken down by the powerful friction.

A high quality wood pellet mill can impact the pellet hardness and durability in the pelleting process. The die dimensions, die speed, and gap between the roller and die are the process variables which are controllable and adjustable by the selection of quality pellet mills and adjustment in the processing.
