8-11T/H Fully Automatic Chicken Animal Feed Machine Production line for Making Chicken Food

2020-07-04 Back to List

If you are looking for related products or have any other questions, please feel free to contact us.

Contact Us

The features of 8-11tph poultry chicken feed mill plant are that the crush fineness is moderate (the hole diameter of screen is 2-4mm), the curing degree is moderate (the pellet mill use double-layer conditioner), the diameter size of finish pellets is large (about 2.5-4mm). The 8-11 tons per hour feedprocessing plant's capacity is designed to be 10tph, using one grinding process, one automatic dosing process, one mixing process, one pelleting process and one bagging process. The total power of this line is about 390kw, the working land size is about 16*11*26m, and matching 1ton boiler. The 8-11t/h poultry feeding plant has compact design, reasonable structure and meets the requirement of environmental protection. It can be customized according to customer's requirements.

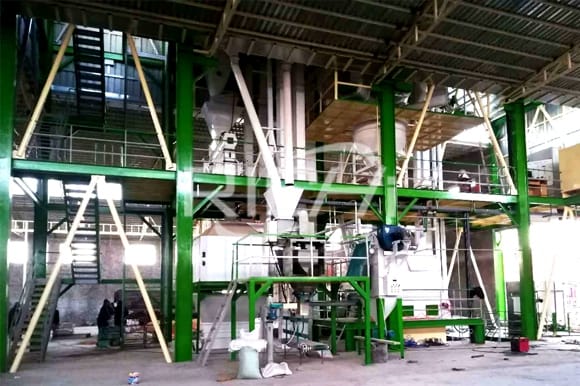

complete poultry feed mill equipment

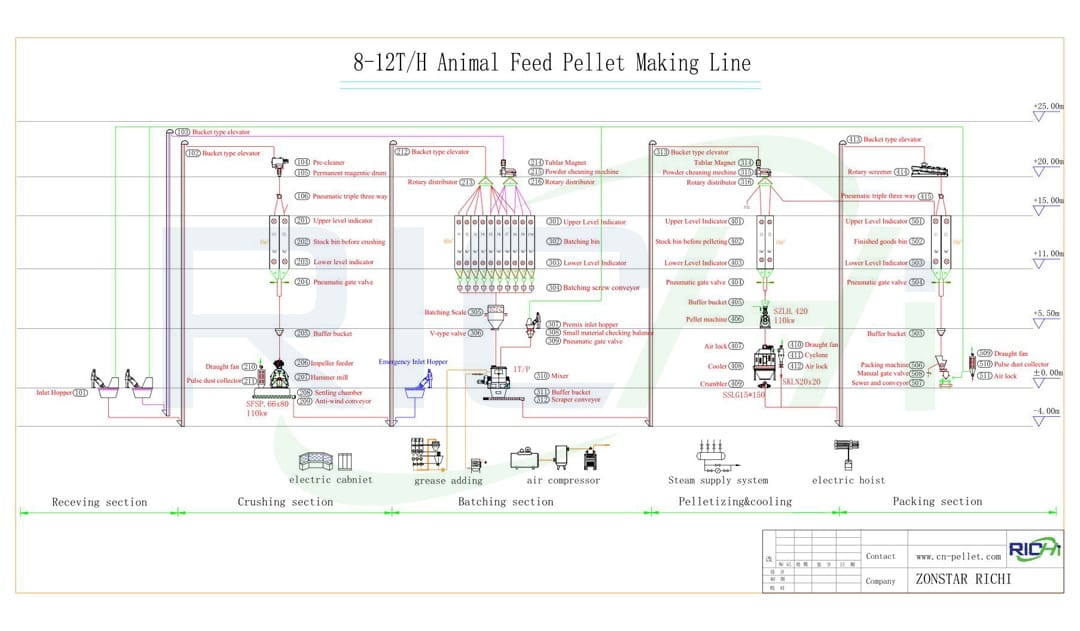

1.Process of 8-11T/H poultry chicken broiler animal feed pellet making plant

RM Receiving & Precleaning System—Grinding System—Dosing & Mixing System—Pelleting System—Bagging System—Auxiliary System

(1)RM Receiving & Precleaning System:

The usage of cleaning system is removing the raw materials’ impurities, such as rope, clod, corn cob etc. non-magnetic impurities and iron nail magnetic impurities. It can ensure the quality of products and the safety of the subsequent processing equipment. The RM receiving & pre-cleaning system is divided into granule pellets feeding cleaning and mash feed feeding cleaning.

Cleaning Equipment: SCY80 Drum Cleaner for Granule Pellets Cleaning, with 20-30tph capacity; SQLZ60X50X100 Powder Cleaner, with 10-15tph capacity for powder material cleaning.

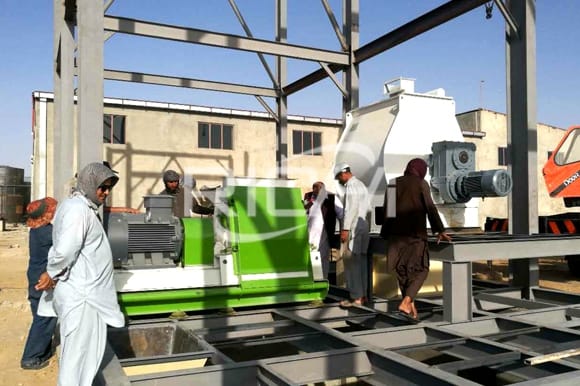

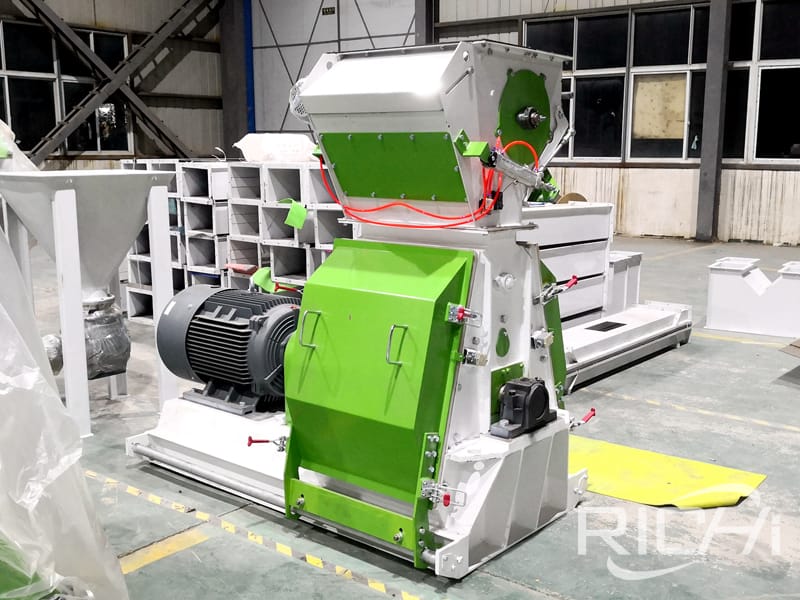

poultry feed hammer mill crusher

(2)Grinding System:

The usage of grinding system is increasing the specific surface area of feed which is good for animal digestion and absorption and improving the processing performance of raw materials. This feed mill plant adopts 2 set of chicken feed hammer mills. There are 2pcs of pre-grinding bins on the top of the 2 set of hammer mills. The impurities in the raw materials will be removed by tubular magnet device before feeding into the pre-grinding bins, to ensure that the hammer mill can operate safely. The cleaned raw materials will feed into the hammer mill chamber for grinding. Then the crushed materials will be transported to the bucket elevator through the screw conveyor, and then feeding into the dosing bins via the rotary distributor. When transporting, one set of auxiliary suction system will be needed. It not only saves energy, but also prevents dust spillage, lowers material temperature and improves crushing efficiency.

Crushing Equipment: chicken feed hammer mill grinder SFSP66*80,110kw, with 10-15tph capacity.

(3)Dosing & Mixing System:

This dosing system is designed according to different feed formula, is accurate weighing process of different raw materials by using specific device. The mixing system is mixing various materials under the action of external force, after various materials are metered. It is an operation that makes the raw materials distribute evenly.

This process use two set of dosing scales, 16 pcs dosing bins and the manual adding system with checking scale. After the dosing and weighing process are finished, the raw materials enter the mixer for mixing, and finally the raw materials are output by chain conveyor and bucket elevator.

Weighing Equipment: Dosing Scale PCS10/PCS05, dosing accuracy≤3‰ .chicken feed mixer and grinder: SHSJ2, 18.5kw, 1000kg per batch, with capacity 10-15tph, the mixing homogeneity CV≤5%.

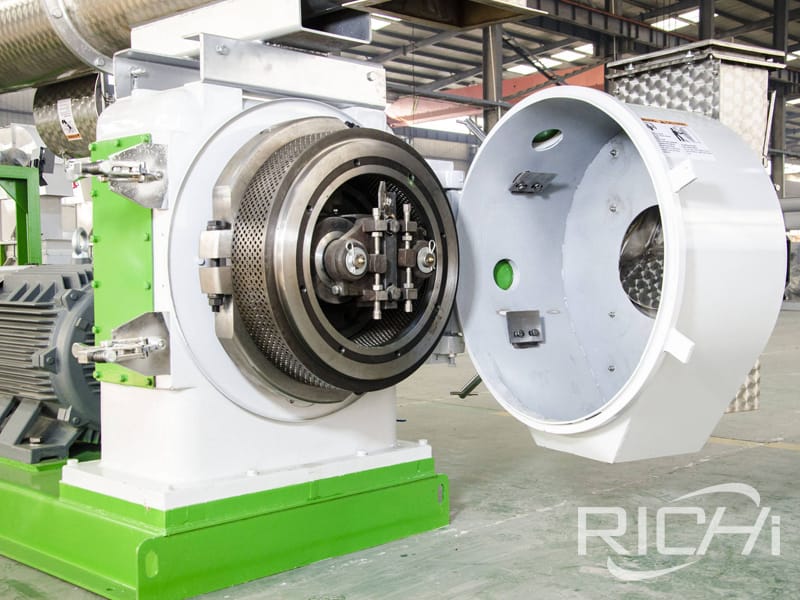

High Quality Poultry Feed Pellet Mill

(4)Pelleting System:

The purpose of pelleting system is to make finely divided, dust-prone, poorly palatable and difficult-to-ship feeds into granule pellets by the action of heat, moisture and pressure in the pelleting process. It can improve the palatability of the feed, reduce the feed-meat ratio, reduce feed waste and reduce environmental pollution.

This process adopt one set SZLH420 ring die pellet mill with 2-layer conditioner. There are 2pcs pre-pelleting bins on the top of the pellet mill. After pelleting, the final pellets enter the cooler, crumbler in order, then conveyed by bucket elevetor to the rotary screener for sifting, and finally enter to the bagging bins for bagging. Others will return to pellet mill machine or crumbler machine for re-process.

Animal poultry chicken pellet making machine: SZLH420, 110kw, with 8-11tph capacity.

Pellet cooler: SKLN6, with 10-15tph capacity.

(5)Bagging System:

The finish product bagging system can divide into bulk bagging and bag bagging two types. According to the weighing in the packaging operation, the automation degree of the filling and packaging, it can be divided into three types: manual bagging, semi-automatic bagging and fully automatic bagging. The selection of the bagging type can be determined according to the customers' requirements, the size of the feed mill plant and the size of the investment.

(6)Auxiliary System:

The dust removal system: it is used in the bagging system which can improving the working environment for workers.

Oil adding system: it is usually used in mixing system, it can improve the feed palatability.

2.Recommend several chicken feed processing line projects we have done:

full poultry feed mill plant costfull poultry feed mill plant cost

Afghanistan 10T/H chicken feed pellet production machine line for poultry feed

Uzbekistan 15T/H Chicken Feed Pellet Line+Pre-mixing Feed Line

Ethiopia 5-6T/H Animal Powder Feed Production Line

Kenya 5T/H Animal Chicken Powder Feed production line

Zimbabwe 3-5T/H Complete Chicken Feed Pellet Making Plant

Colombia 3-4T/H Poultry Pellet Feed Production Plant

Saudi Arabia 15-16T/H Chicken Cattle Feed Pellet Production Line

Papua New Guinea 1-2T/H Chicken Feed Pellet Processing Plant

You can directly consult Richi Machinery for more questions about"high quality chicken feed pellet making plant"" how to make chicken feed for layers by chicken feed equipment"" poultry chicken mash feed mill machinery""advanced small poultry feed mill price""ring die poultry feed mill equipment",Email:,Whatsapp/Cel: +86 185 7410 3366
