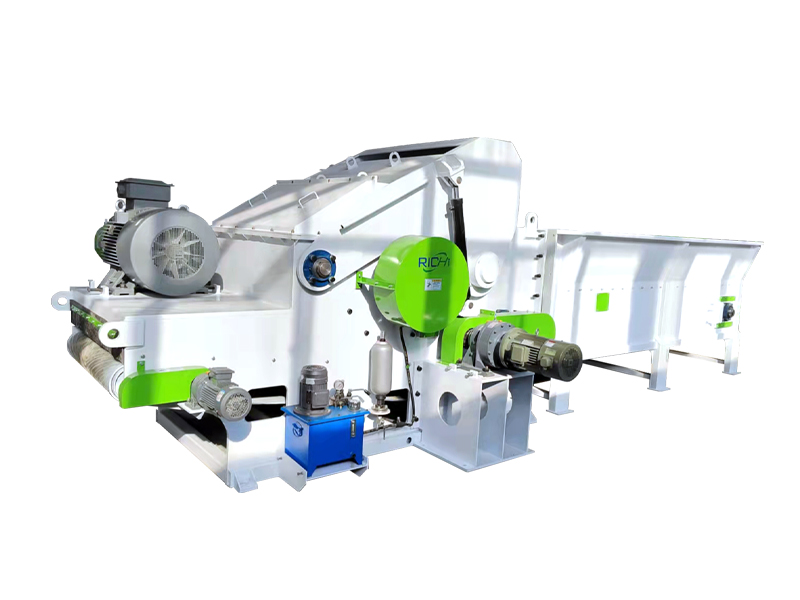

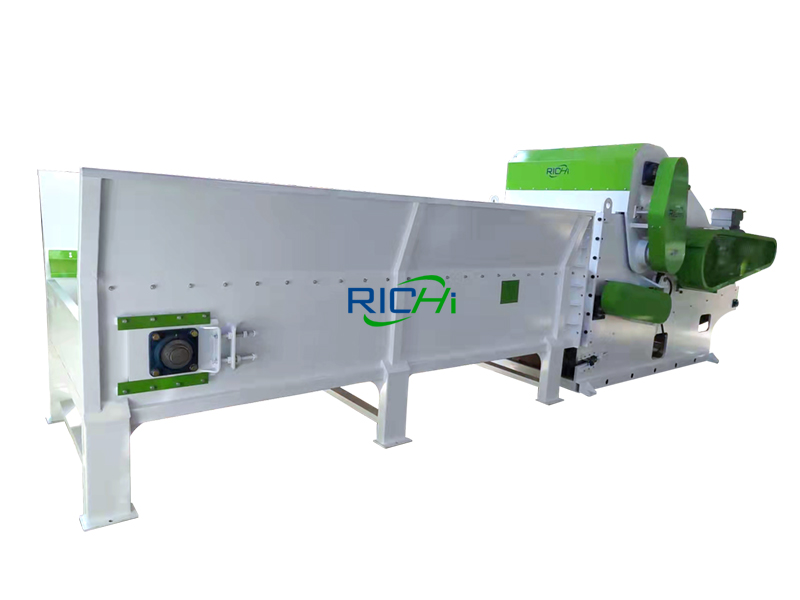

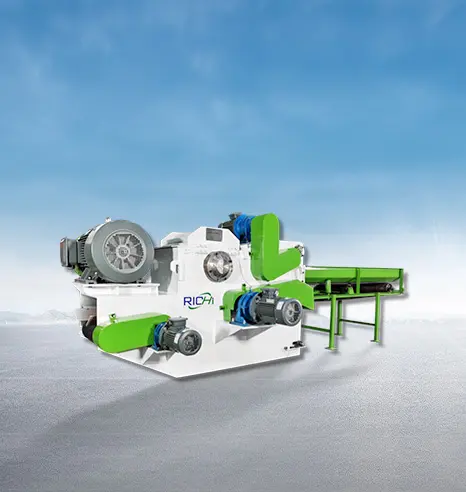

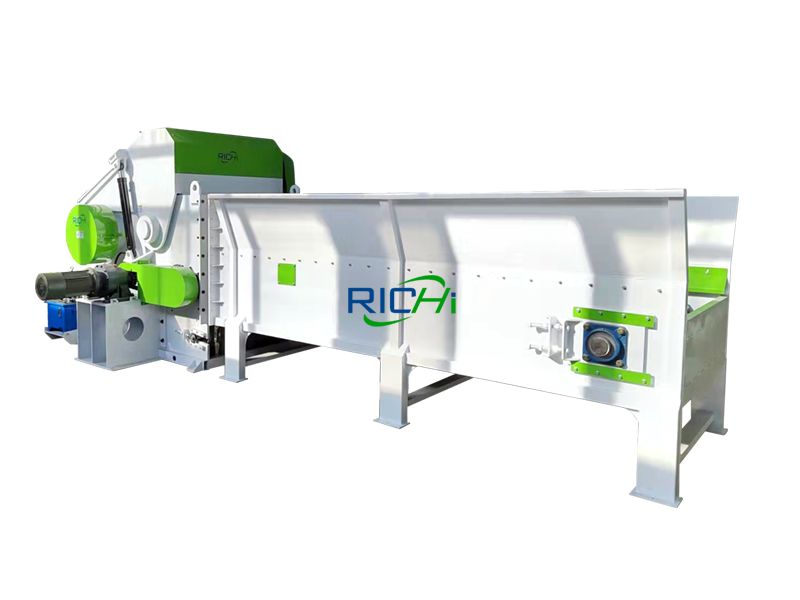

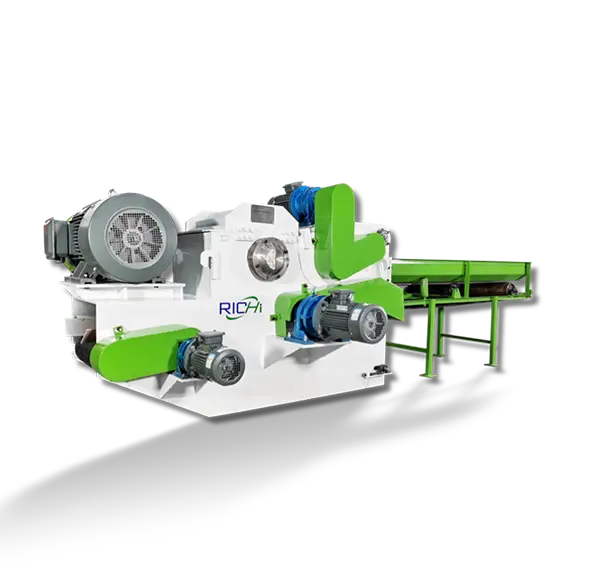

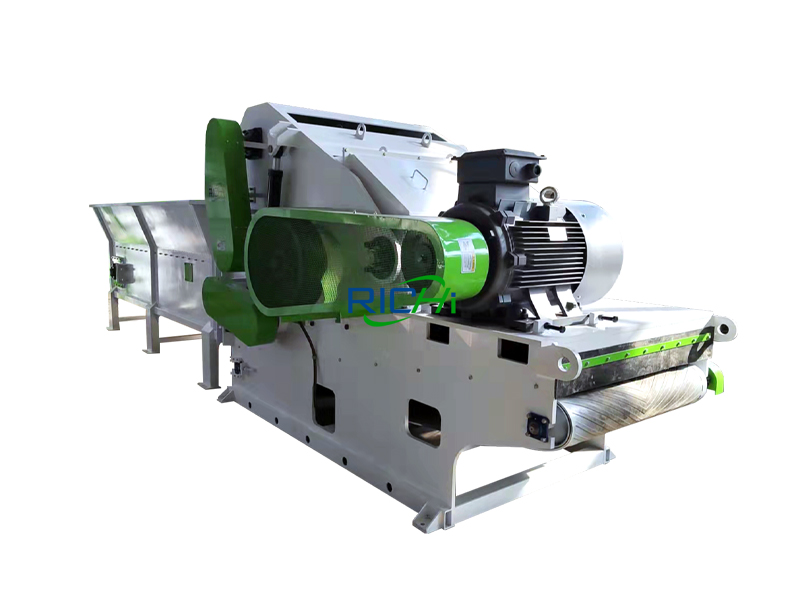

Wood Pallet Crushing Machine

: Brand : RICHI

: Capacity : 8-12T/H

: Model : RIBPC1250*500b

: Main Power : 242.2KW

: Guiding Price :
FOB 10000-100000 USD

Brief Introduction

The wood pallet crushing machine is a new generation of special plate crushing developed for the crushing of building templates. It is mainly composed of working platform, feeding rollers and conveyors. Due to its reasonable design and compact structure, it is safe, durable, and production High efficiency, after popularization and use, the effect is good, low noise, simple structure, compact layout, low price, stable work, low energy consumption, high output, good quality of crushed products, and low processing cost.

Get Quote

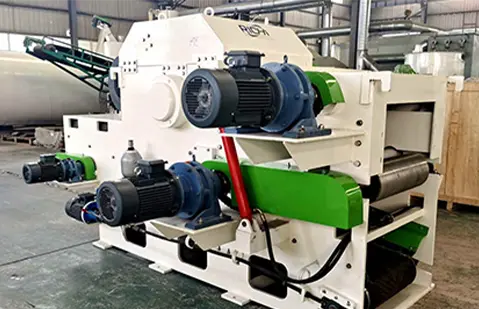

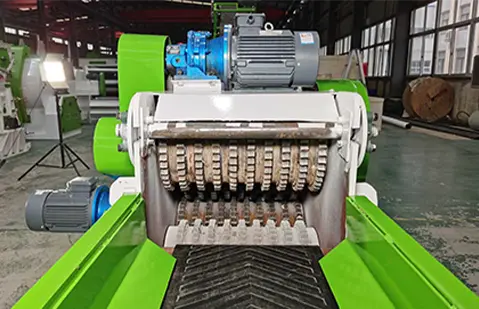

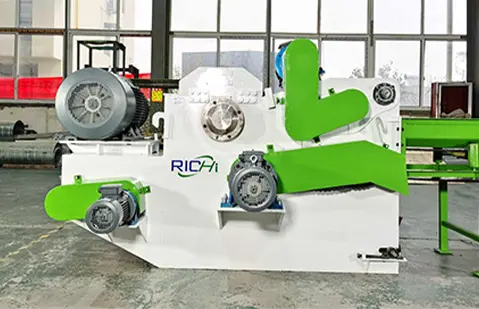

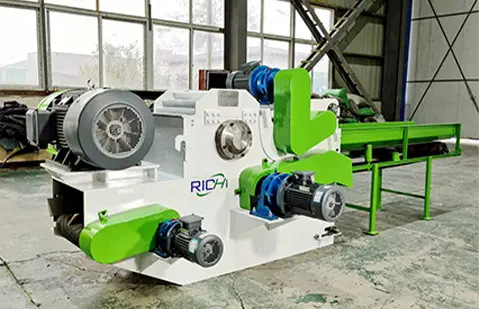

This horizontal-fed drum wood pallet crushing machine has the advantages of compact structure ,high efficiency, easy to operate. The main parts of this machine is rack, cutter, feed port, encloser, electronic system. In order to meet the different requirements of the paper making, fiber board, Particle board industries, the final wood chips length can be adjusted. With more than 20 years of experience, you can depend on a well-tested product that will deliver a long, economic life with low maintenance costs.

Model	Capacity	Inlet size （mm）（W*H）	Discharge conveyor belt size（mm）（L*W）	Number of hammers（sets）	Motor Power （kw）	Feed conveyor speed （r/mim）	Host speed （r/mim）	Start method
8-12T/H	4000*1250	1250*500	3500*1200	32	220+11+7.5+2.2+1.5	Frequency	830	Soft start

Wood Pallet Crushing Machine

Model	RIBPC1000*300	RIBPC1000*350	RIBPC1250*400	RIBPC1250*450	RIBPC1250*500a	RIBPC1250*500b
Capacity	1-2T/H	1.5-2.5T/H	3-5T/H	5-8T/H	7-10T/H	8-12T/H
Feed conveyor belt size （mm）（L*W）	4000*1000	4000*1000	4000*1250	4000*1250	4000*1250	4000*1250
Inlet size （mm）（W*H）	1000*300	1000*350	1250*400	1250*450	1250*500	1250*500
Discharge conveyor belt size（mm）（L*W）	2500*800	3000*800	3500*1200	3500*1200	3500*1200	3500*1200
Number of hammers（sets）	20	24	24	24	28	32
Motor Power （kw）	75+4*2+1.1+1.5	90+5.5*2+1.1+1.5	110+7.5*2+1.1+1.5	132+11+7.5+2.2+1.5	160+11+7.5+2.2+1.5	220+11+7.5+2.2+1.5
Feed conveyor speed （r/mim）	Frequency	Frequency	Frequency	Frequency	Frequency	Frequency
Host speed （r/mim）	830	830	830	830	830	830
Start method	Star delta start	Star delta start	Star delta start	Soft start	Soft start	Soft start

Application of Wood Pallet Crushing Machine

Richi wood pallet crushing machine mainly smashes some bamboo plywood, waste formwork on construction site, waste building formwork, wooden pallet, container, packing box, waste furniture, wood scraps and other waste wood with nails.
