Wet Type Fish Feed Extruder
- Brand : RICHI
- Capacity : 1-1.2T/H
- Model : DSP135-B
- Main Power : 75KW
-
Guiding Price :
FOB 5000-40000 USD
Brief Introduction
The material is fully matured between the screw and the screw sleeve by high temperature and high pressure, and then extruded to form a floatable expanded pellet.
Get QuoteA unique supercharged die unit is installed to ensure feed yield and quality; and a heating device is provided to increase the feed expansion rate. The main motor uses a high quality three-phase motor to ensure high power. The speed-adjusting feeding device is more convenient to operate, and the feeding is uniform to prevent the machine from being smashed. The discharge template is easy to replace, and it is only necessary to replace the required aperture template with different aperture feeds.
| Model | Capacity(t/h) | Main motor power(kw) | Feeder power(kw) | Screw diameter(mm) | Cutter power(kw) | Conditioner power(kw) |
| DSP135-B | 1.0-1.2 | 75 | 1.5 | Φ135 | 2.2 | 3.0-4.0 |

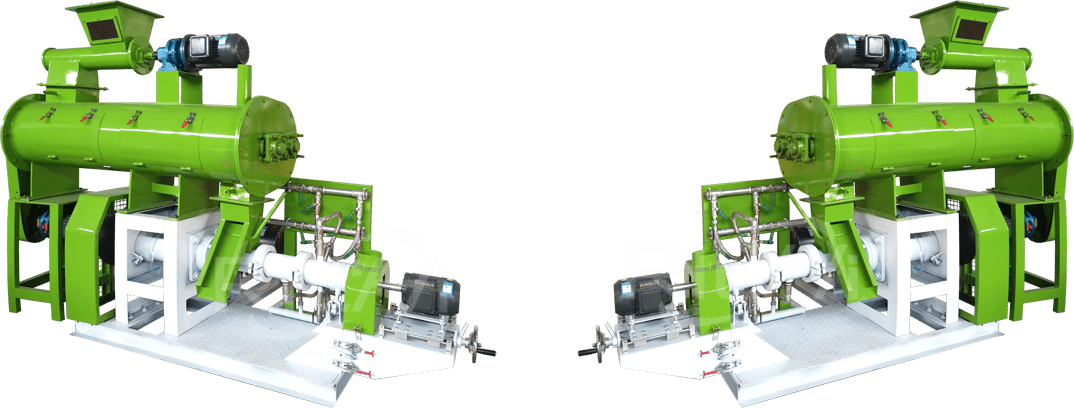

Wet Type Fish Feed Extruder
| Model | Capacity(t/h) | Main motor power(kw) | Feeder power(kw) | Screw diameter(mm) | Cutter power(kw) | Conditioner power(kw) |
| DSP60-B | 0.18-0.2 | 15 | 0.4 | Φ60 | 0.4 | 0.75 |
| DSP70-B | 0.25-0.30 | 18.5 | 0.6 | Φ70 | 0.6 | 0.75 |
| DSP80-B | 0.35-0.40 | 22 | 1.1 | Φ80 | 0.8 | 1.1-1.5 |
| DSP90-B | 0.50-0.60 | 37 | 1.1 | Φ90 | 1.1 | 2.2 |
| DSP120-B | 0.70-0.80 | 55 | 1.1 | Φ120 | 1.5 | 2.2-3.0 |
| DSP135-B | 1.0-1.2 | 75 | 1.5 | Φ135 | 2.2 | 3.0-4.0 |
| DSP160-B | 1.8-2.0 | 90 | 2.2 | Φ155 | 2.2-3.0 | 4.0-5.5 |
| DSP200-B | 3.0-4.0 | 132 | 2.2 | Φ195 | 3.0-4.0 | 5.5 |
| DSP200-B | 3.0-4.0 | 132 | 2.2 | Φ195 | 3.0-4.0 | 5.5 |
Application of Wet Type Fish Feed Extruder
This equipment uses corn, soybean (bean cake) animal wastes as raw materials, can be expanded to produce different particle shapes, suitable for different pet tastes such as dogs, cats, fish, birds, rabbits, shrimps, dogs, cats, donkeys, foxes, etc.
Get Quote
Accessories
RICHI provide various shapes of high-quality stainless steel mold, the production of expanded particles suitable for the customer, the motor apparatus Siemens.
Get Quote
-
SIEMENS
Motor
-
SKF
Bearing
-
Extruder
Discharging die
-

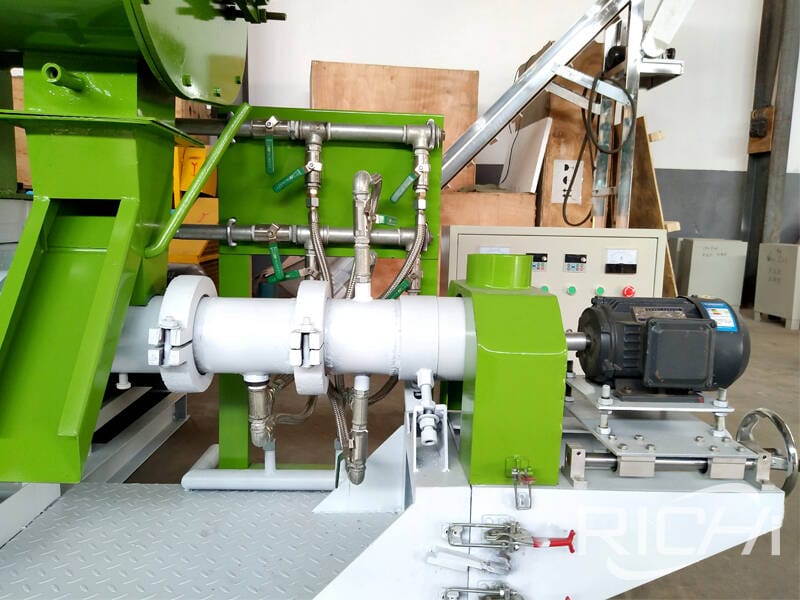

Extruder
Single-thread
Equipment In RICHI Workshop

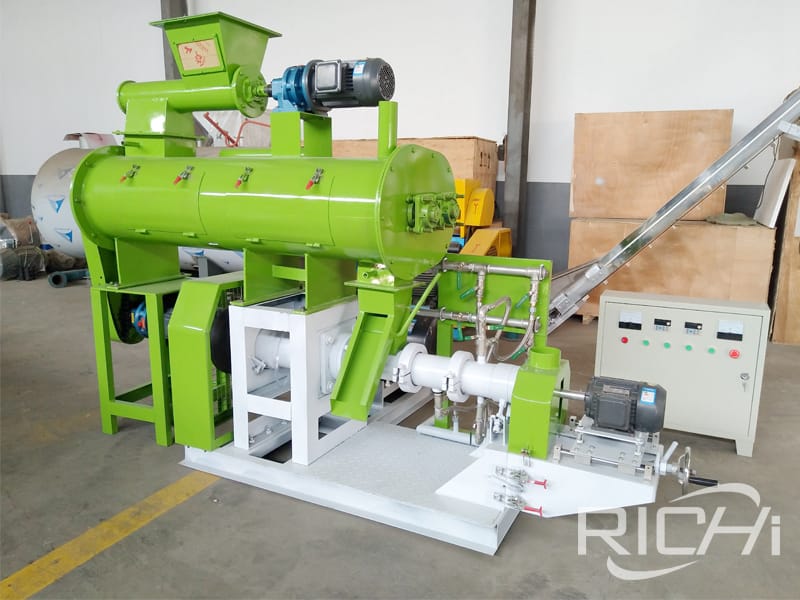

- Wet Type Fish Feed Extruder
- Conditioner of Extruder

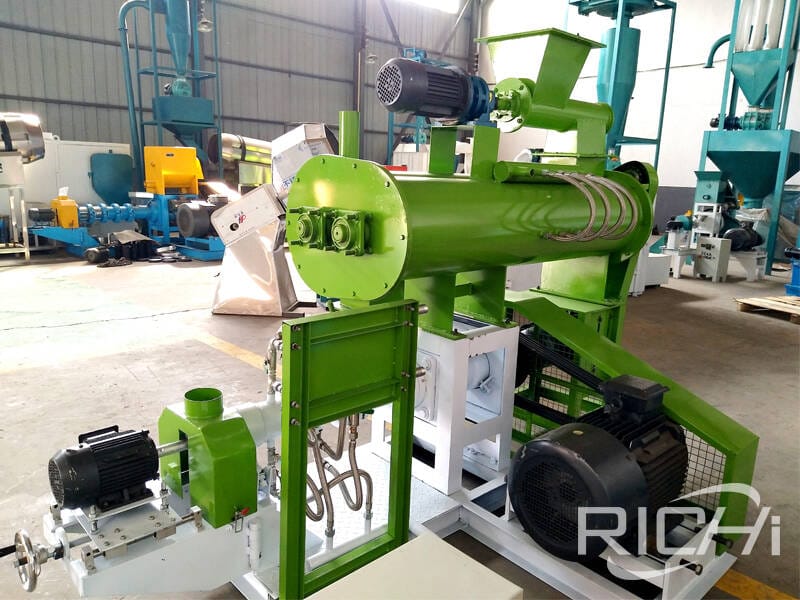

- Fish Feed Extruder
- Fish Feed Extruder
Application
Our products are usually used in conjunction with other equipment in the production line and have a wide range of applications. The following are common pellet production lines for reference only. If you have different requirements, please contact us for customization.
